IMBA-H610 ATX Motherboard
Page 35

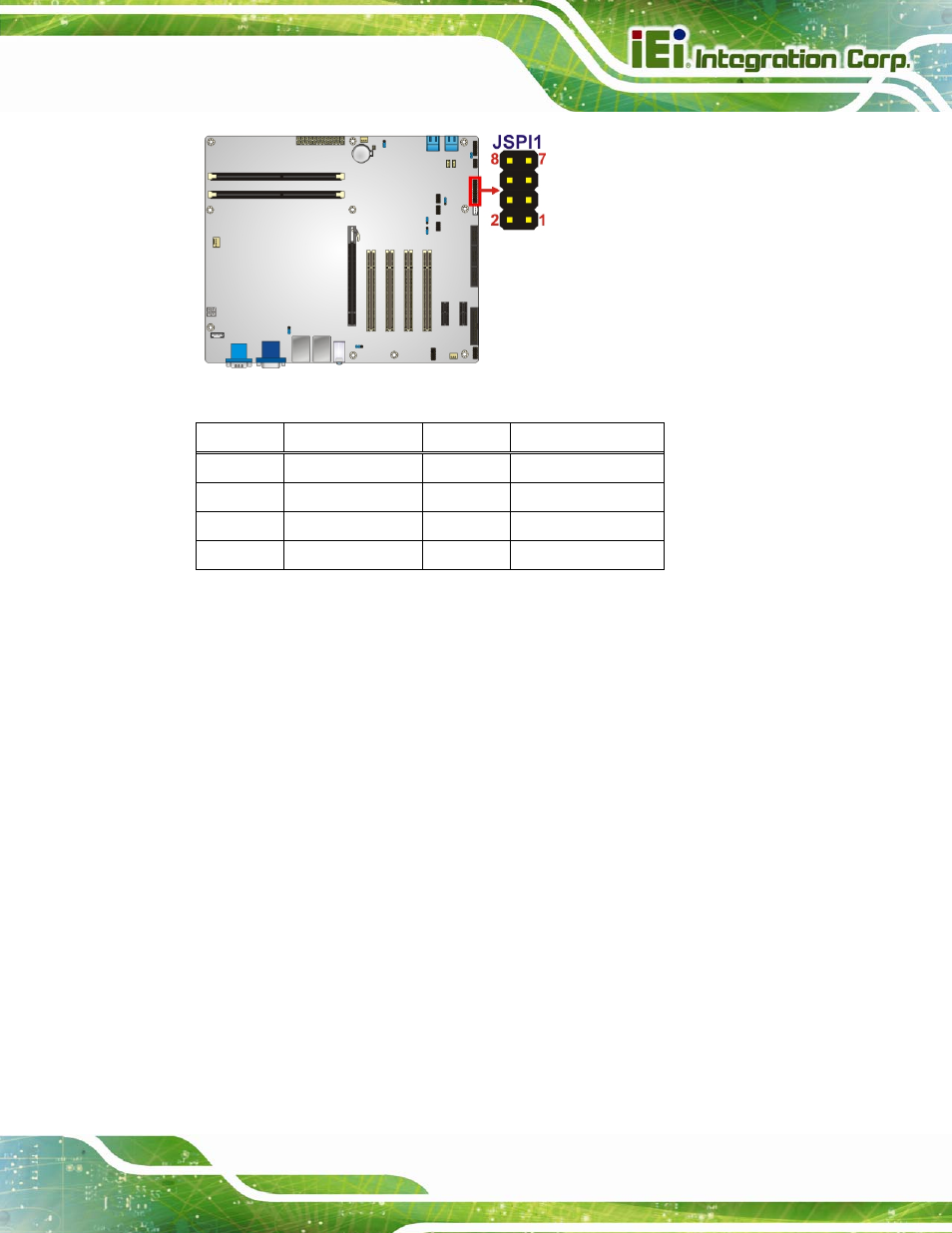

Figure 3-20: SPI Connector Location
Pin Description Pin Description
1 +3.3V 2 GND
3 SPI_CS0 4 SPI_CLK
5 SPI_SO0 6 SPI_SI
7 NC 8 NC
Table 3-18: SPI Connector Pinouts
3.2.20 TPM Connector
CN Label: TPM1
CN Type: 20-pin header
CN Location: See Figure 3-21
CN Pinouts: See Table 3-19
The TPM connector connects to a TPM module.
