IMBA-H610 ATX Motherboard
Page 41
3.3.5 Serial Port Connector (COM2)
CN Label: COM1 (bottom)
CN Type: DB-9 connector
CN Location: See Figure 3-23
CN Pinouts: See Table 3-26 and Figure 3-27
The serial port connects to a RS-232 serial communications device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND

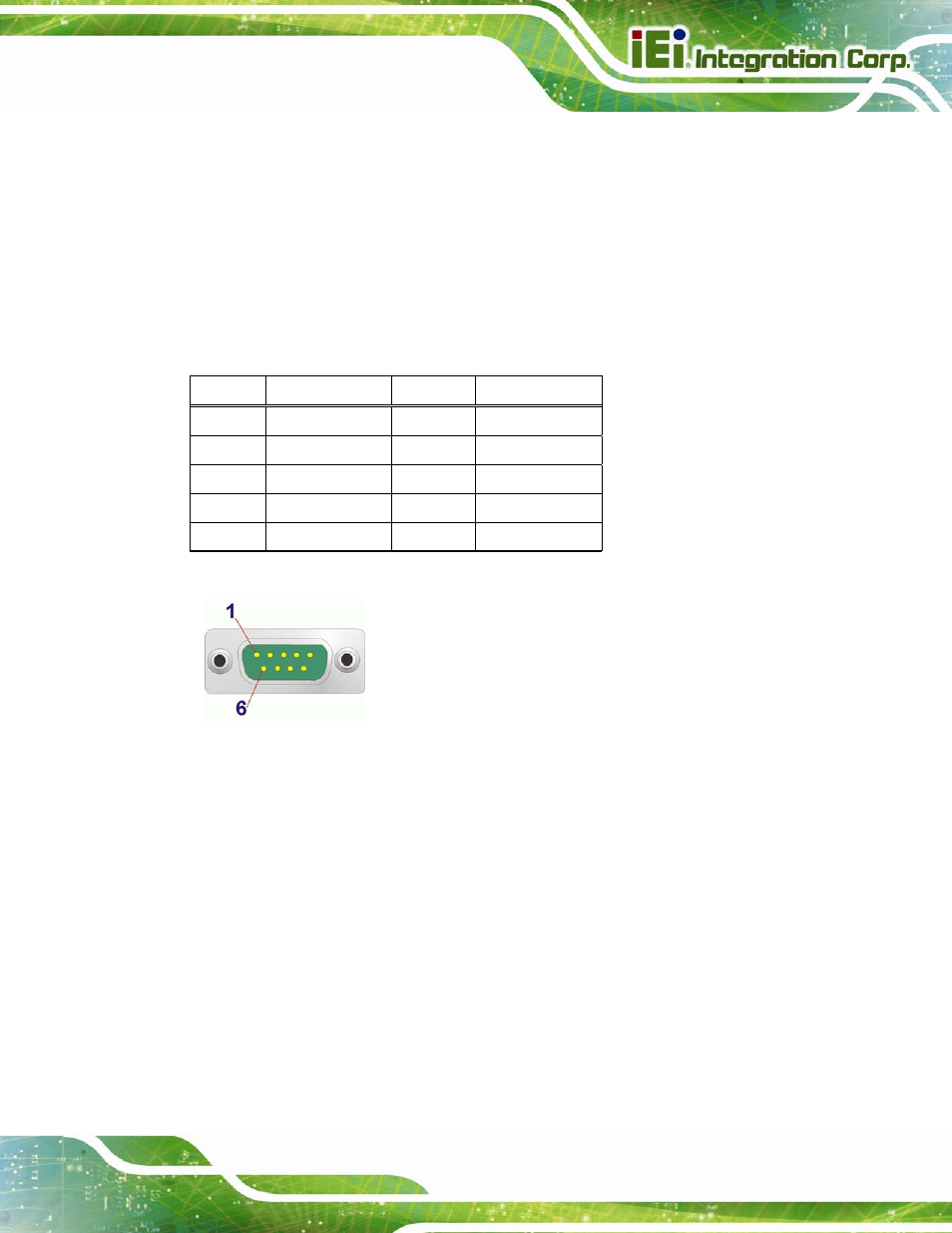

Table 3-26: Serial Port Connector (COM2) Pinouts
Figure 3-27: Serial Port Connector (COM2) Pinouts
3.3.6 VGA and DVI Connector
CN Label: VIDEO1
CN Type: 15-pin Female, 24-pin header
CN Location: See Figure 3-23
CN Pinouts: See Table 3-27 and Table 3-28
The VGA connector connects to a monitor that accepts a standard VGA input.
