IMBA-H610 ATX Motherboard

Page 54

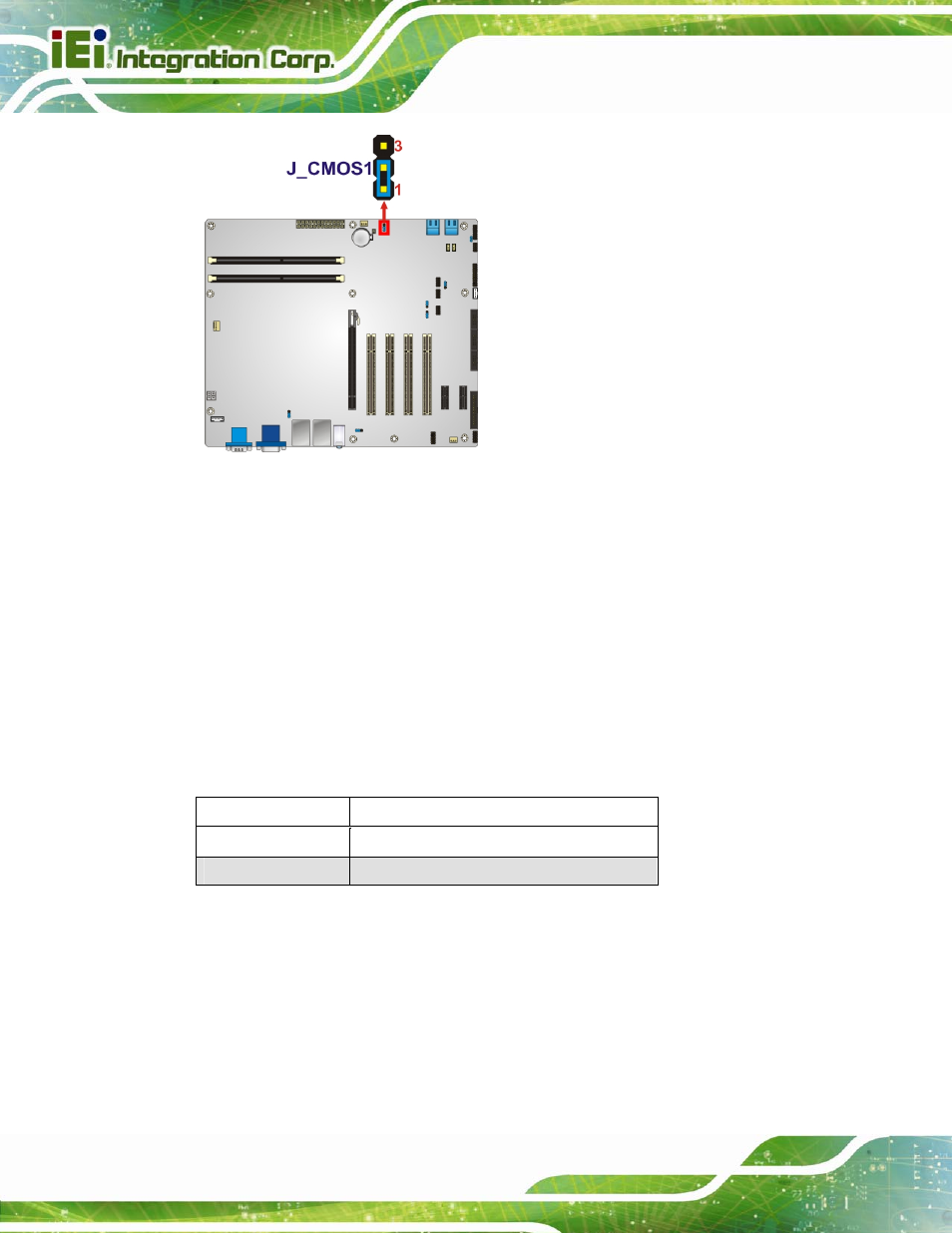

Figure 4-8: Clear BIOS Jumper Location

4.3.3 USB Power Select Jumpers

Jumper Label:

USB_PWR2, USB_PWR3, USB_PWR4,

LAN1_USB01_PWR1, LAN2_USB23_PWR1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-4

Jumper Location:

See Figure 4-9

The USB Power Select jumper specifies the USB power.

Setting Description

Short 1-2

+5V_DUAL

Short 2-3

+5V (Default)

Table 4-4: USB Power Select Jumper Settings
