Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.

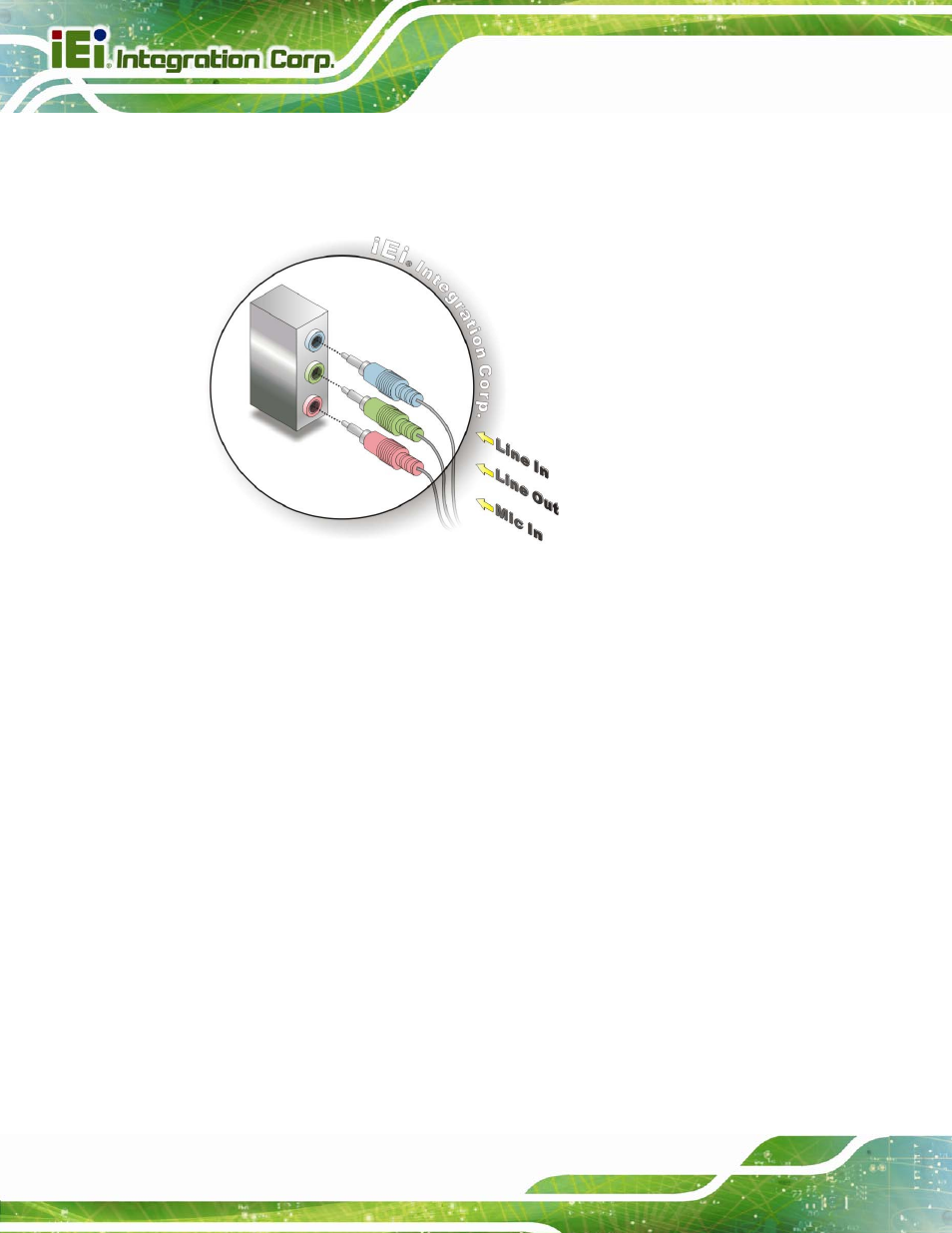

Figure 4-12: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.5.2 DVI Display Device Connection
The IMBA-H610 has a single female DVI-D connector on the external peripheral interface
panel. The DVI-D connector is connected to a digital display device. To connect a digital
display device to the IMBA-H610, please follow the instructions below.
Step 1: Locate the DVI-D connector. The location of the DVI-D connector is shown in
another chapter.
Step 2: Align the DVI-D connector. Align the male DVI-D connector on the digital
display device cable with the female DVI-D connector on the external peripheral
interface.
Step 3: Insert the DVI-D connector . Once the connectors are properly aligned with the
male connector, insert the male connector from the digital display device into the
female connector on the IMBA-H610. See Figure 4-13.
