IMBA-H610 ATX Motherboard
Page 28

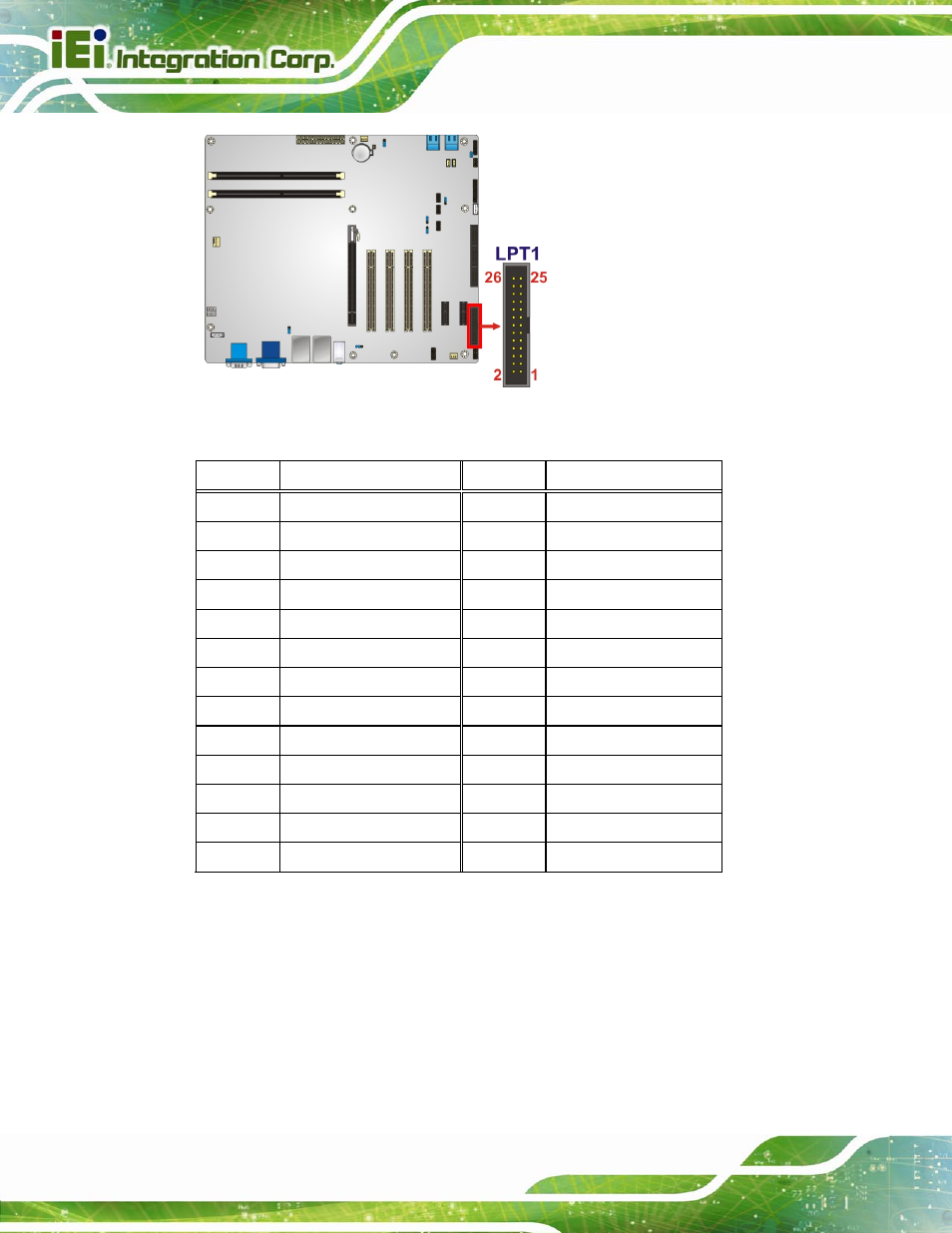

Figure 3-12: Parallel Port Connector Location
Pin Description Pin Description
1 STB 2 AFD
3 PPD0 4 ERROR
5 PPD1 6 INIT
7 PPD2 8 SLIN
9 PPD3 10 GND
11 PPD4 12 GND
13 PPD5 14 GND
15 PPD6 16 GND
17 PPD7 18 GND
19 ACK 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT
Table 3-12: Parallel Port Connector Pinouts
3.2.12 PCI Slots
CN Label: PCI1, PCI2, PCI3, PCI4
CN Type: PCI Slot
CN Location: See Figure 3-13
