IMBA-H610 ATX Motherboard
Page 36

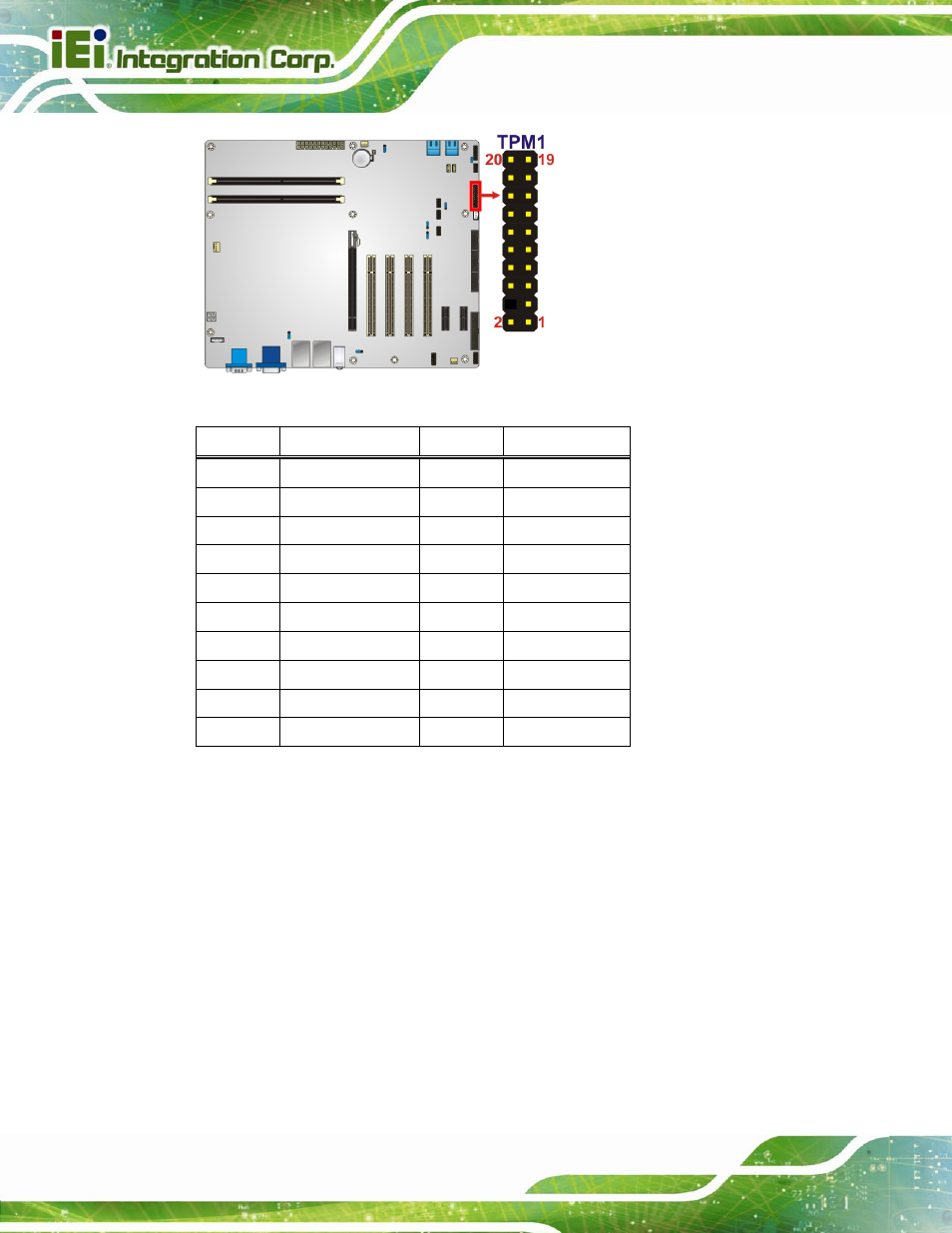

Figure 3-21: TPM Connector Location
Pin Description Pin Description
1 LCLK 2 GND2
3 LERAME# 4 KEY
5 LRESRT# 6 +5V
7 LAD3 8 LAD2
9 +3V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-19: TPM Connector Pinouts
3.2.21 USB Connectors
CN Label: USB2, USB3, USB4
CN Type: 8-pin header
CN Location: See Figure 3-22
CN Pinouts: See Table 3-20
The USB connectors connect to USB devices. Each pin header provides two USB ports.
