IMBA-H610 ATX Motherboard
Page 39
PIN DESCRIPTION PIN DESCRIPTION
2 MDIA3+ 6 MDIA1+
3 MDIA1- 7 MDIA0-
4 MDIA2- 8 MDIA0+
Table 3-21: LAN Pinouts

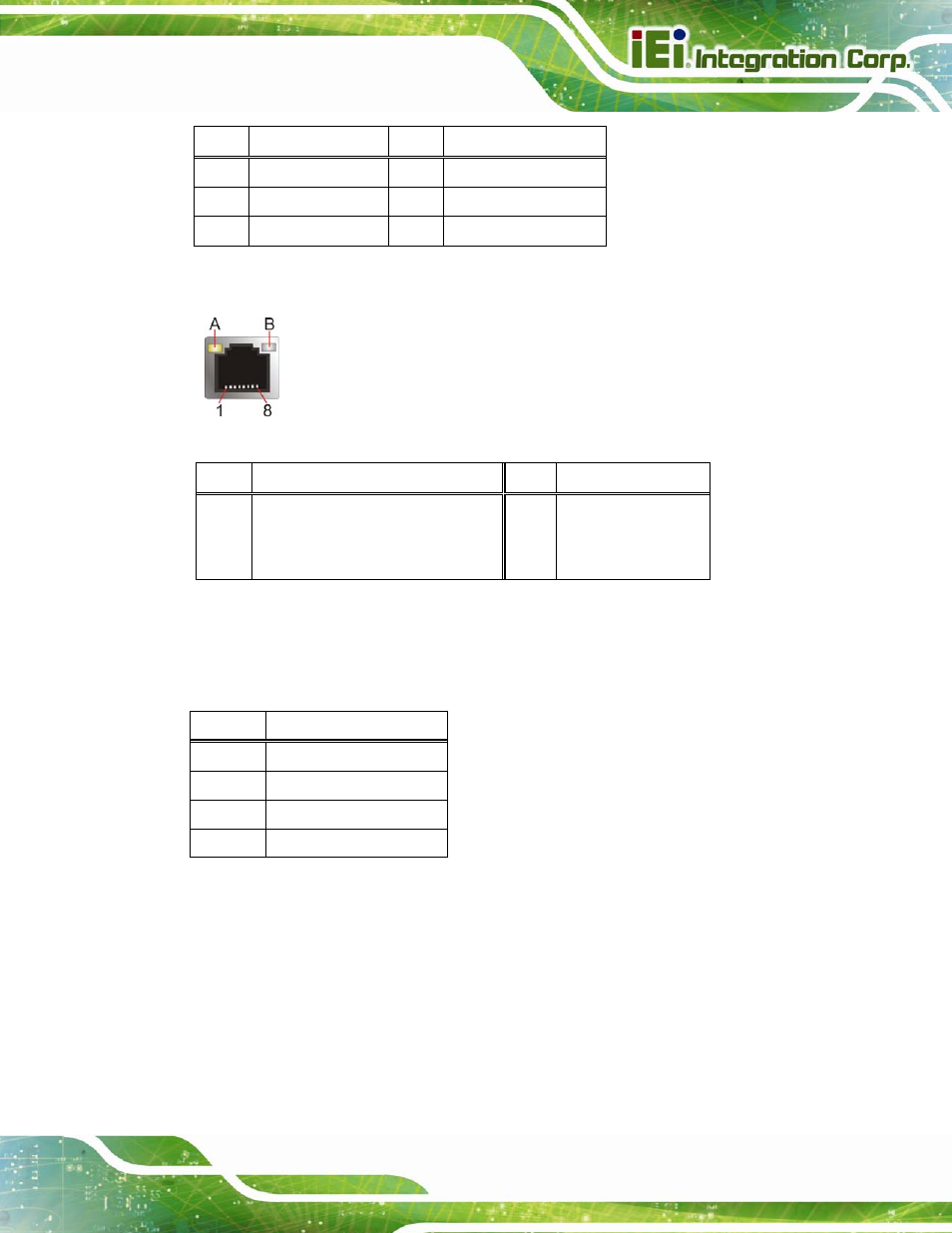

Figure 3-25: Ethernet Connector
LED Description LED Description
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
Table 3-22: Connector LEDs
The IMBA-H610 has four external USB 2.0 ports. The ports connect to both USB 2.0 and
USB 1.1 devices.
PIN DESCRIPTION
1 VCC
2 DATA -
3 DATA +
4 GND
Table 3-23: USB Port Pinouts
3.3.3 Keyboard/Mouse Connector
CN Label: KB_MS2
CN Type: Dual PS/2
CN Location: See Figure 3-23
CN Pinouts: See Table 3-24
