IMBA-H610 ATX Motherboard

Page 27

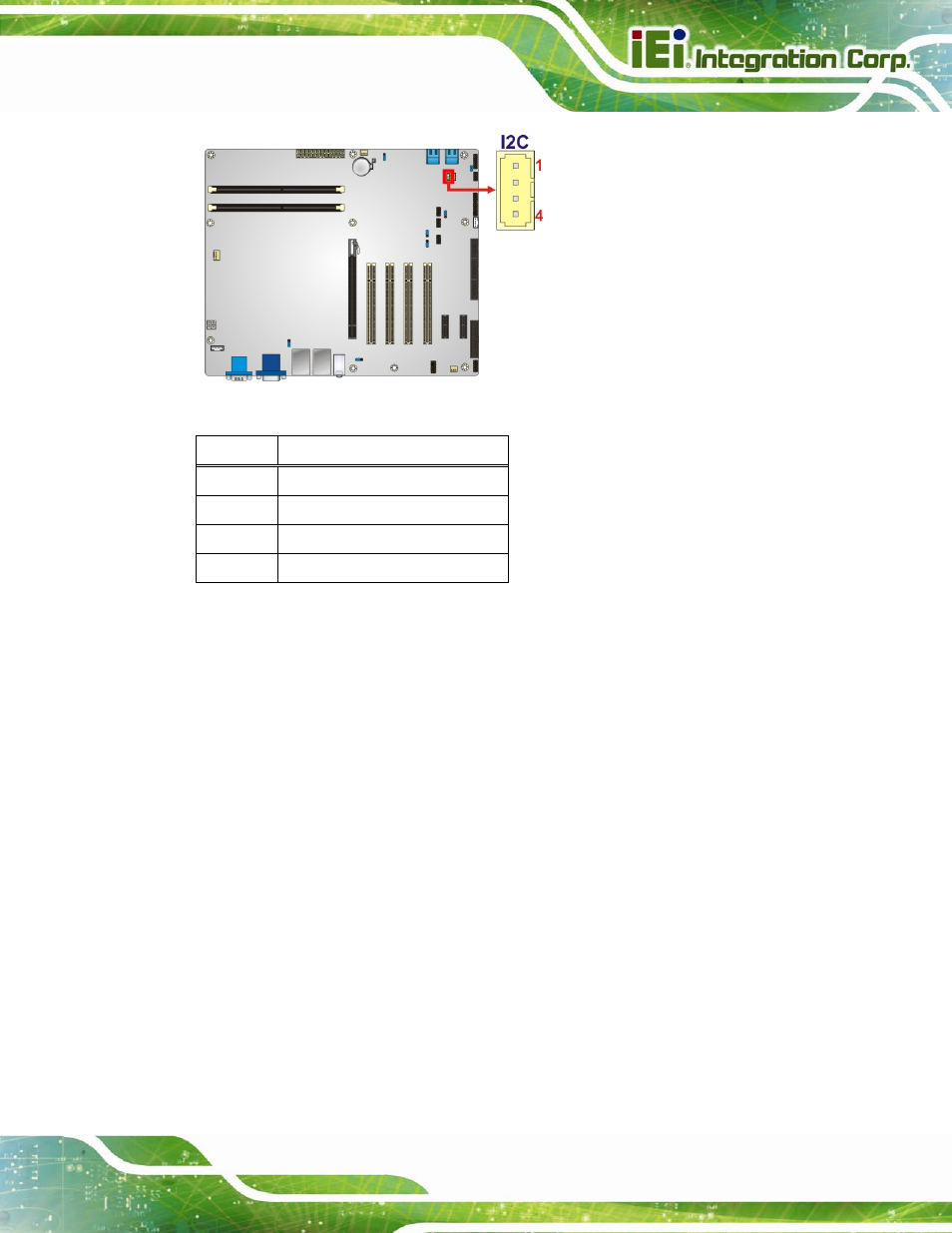

Figure 3-11: I2C Connector Location

Pin Description

1 +5V_DUAL

2 PCH_GP38_PU

3 PCH_GP39_PU

4 GND

Table 3-11: I2C Connector Pinouts

3.2.11 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-12

The parallel port connector connects to a parallel port connector interface or some other

parallel port device such as a printer.
