KINO-9652 Mini-ITX SBC

Page 66

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green

LED indicates activity on the port and the yellow LED indicates the port is linked. See

Table 4-21.

SPEED LED

ACT/LINK LED

STATUS DESCRIPTION STATUS DESCRIPTION

OFF

10Mbps connection

OFF

No link

ORANGE 100Mbps

connection YELLOW Linked

GREEN 1Gbps

connection BLINKING

Data

Activity

Table 4-21: RJ-45 Ethernet Connector LEDs

4.3.4 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

PS/2 connector

CN Location: See

Figure 4-18

CN Pinouts: See

Table 4-22

The KINO-9652 keyboard and mouse connectors are standard PS/2 connectors.

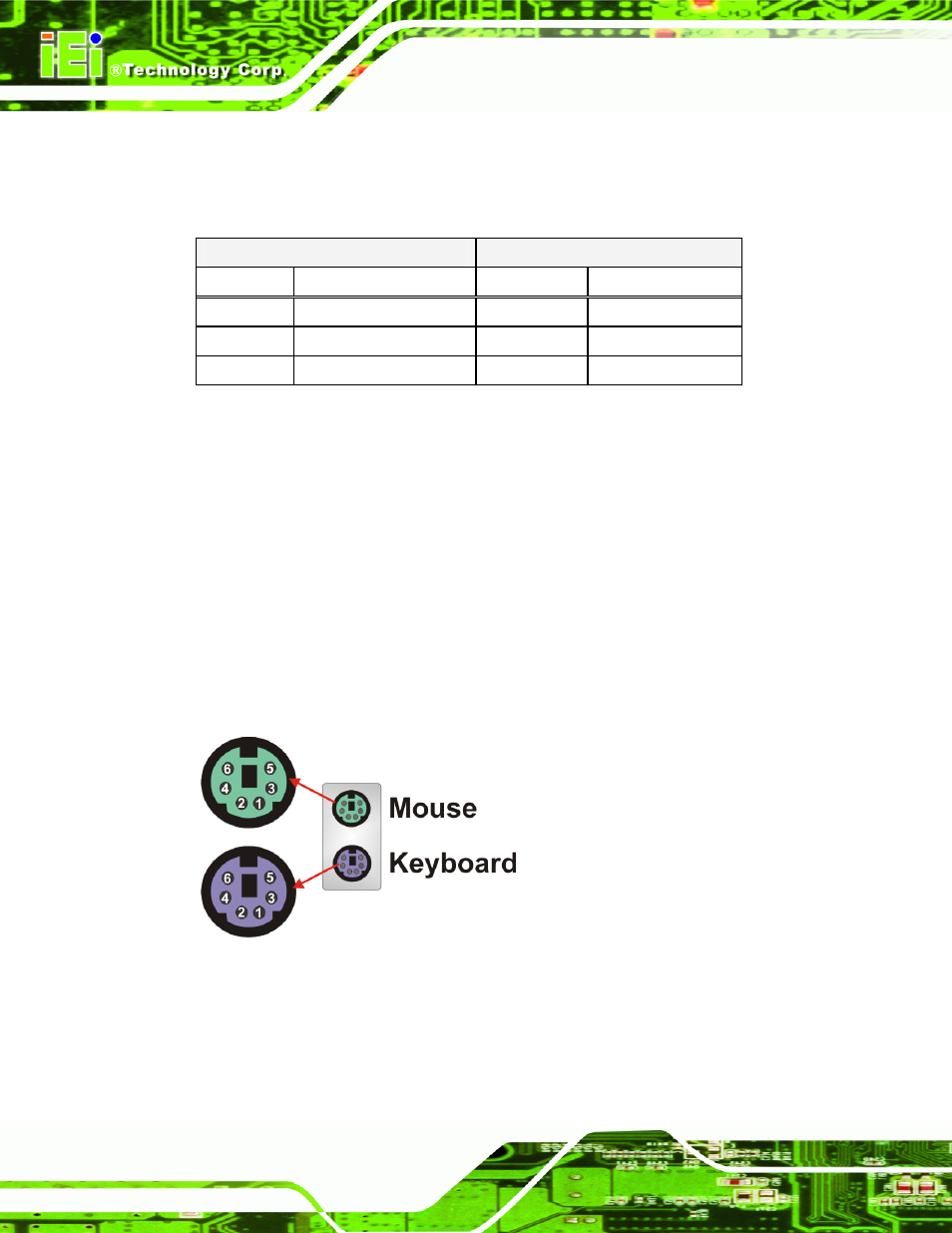

Figure 4-22: PS/2 Pinouts
