KINO-9652 Mini-ITX SBC
Page 63
4.3 External Interface Connectors
The peripheral connectors on the back panel are connected to devices externally when
the KINO-9652 is installed in a chassis. The peripheral connectors on the rear panel are:
2 x Audio jacks
1 x CRT connector
2 x RJ-45 Ethernet connectors
1 x Keyboard connector
1 x Mouse connector
3 x Serial port connectors
4 x USB 2.0 connectors

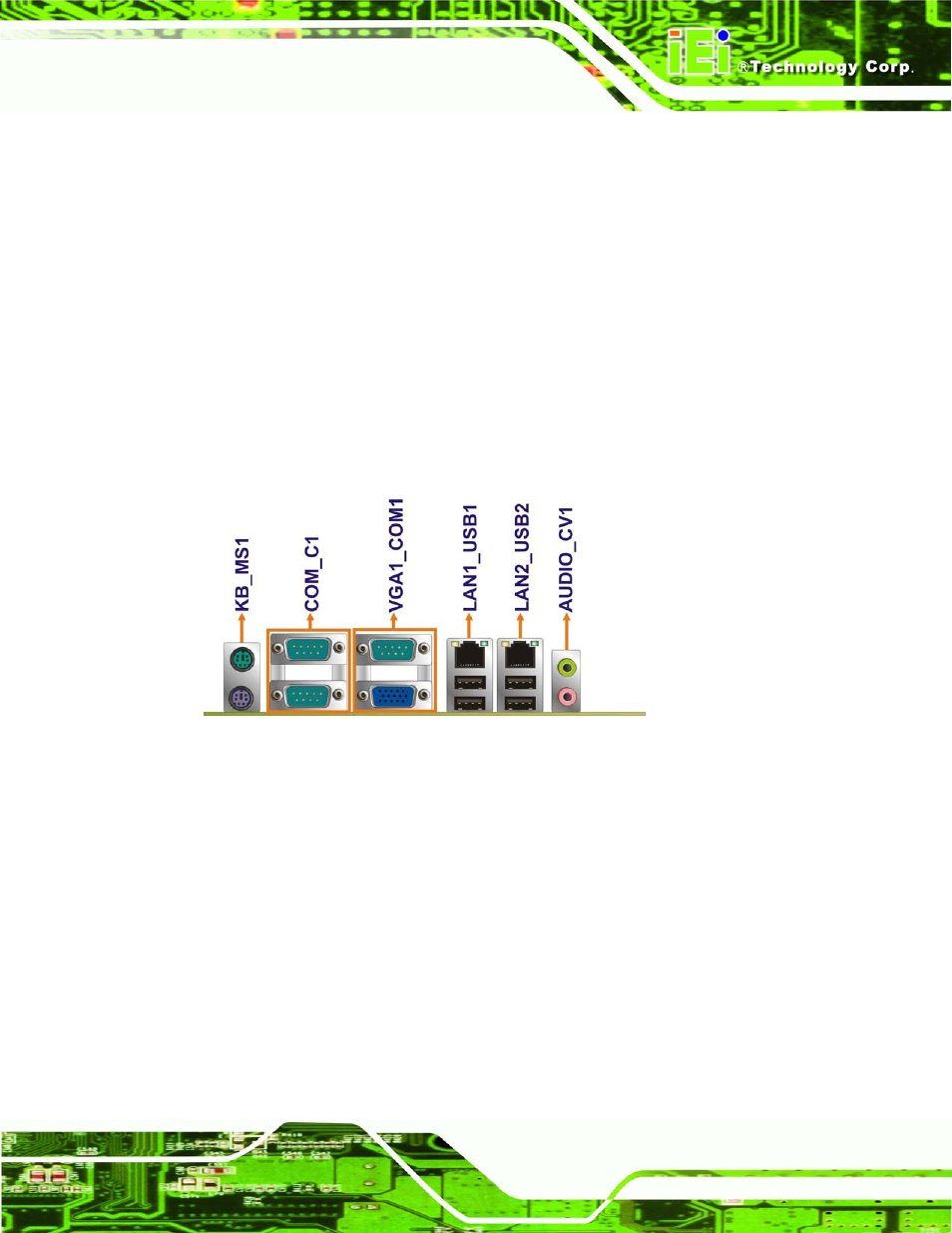

Figure 4-18: KINO-9652 External Interface Connectors
4.3.1 Audio Connectors
CN Label: AUDIO_CV1
CN Type: Audio jack
CN Location: See Figure 4-18
CN Pinouts: See Figure 4-19
Line Out port (Lime): Connects a headphone or a speaker. In 4,6,8-channel
configuration, the function of this port becomes Front Speaker Out.
Microphone (Pink): Connects a microphone.
