KINO-9652 Mini-ITX SBC

Page 64

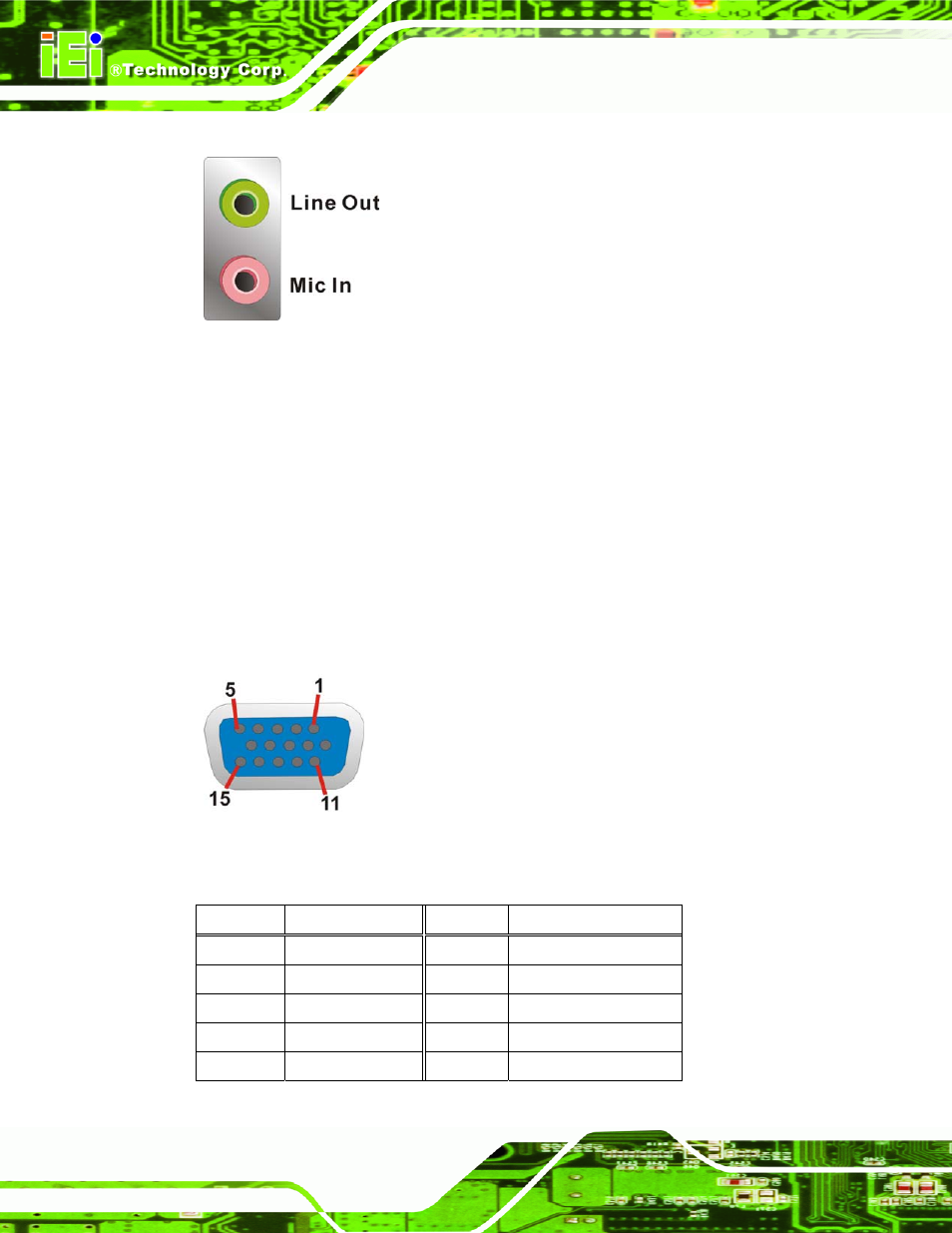

Figure 4-19: Audio Connectors

4.3.2 CRT Connector

CN Label:

VGA1_COM1

CN Type:

15-pin female connector

CN Location: See

Figure 4-18

CN Pinouts: See

Table 4-19 and Figure 4-20

The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

Figure 4-20: VGA Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 RED

2 GREEN

3 BLUE

4 N/C

5 GND

6 GND

7 GND

8 GND

9 VCC

10

GND
