4 hardware health configuration, Ction 6.3.4 ) – IEI Integration KINO-9652 v1.00 User Manual
Page 137
KINO-9652 Mini-ITX SBC
Page 115
3F8
Serial port 4 I/O port address is 3F8
2F8
Serial port 4 I/O port address is 2F8
3E8
Serial port 4 I/O port address is 3E8
2E8 D
EFAULT
Serial port 4 I/O port address is 2E8
Serial Port4 IRQ [10]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
10 D
EFAULT
Serial port 4 IRQ address is 10
6.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.

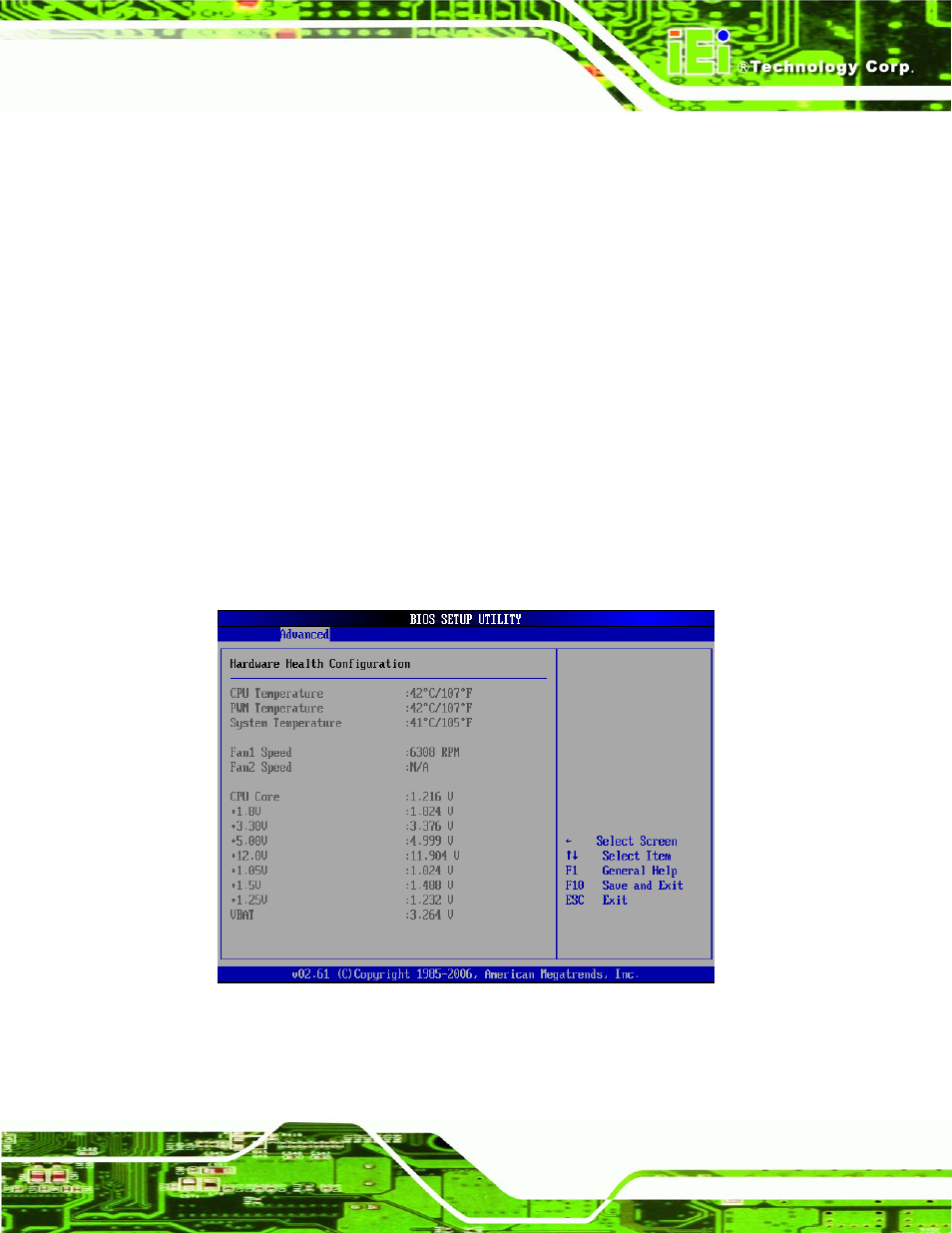

BIOS Menu 7: Hardware Health Configuration
