1.1 KINO-9652 Overview

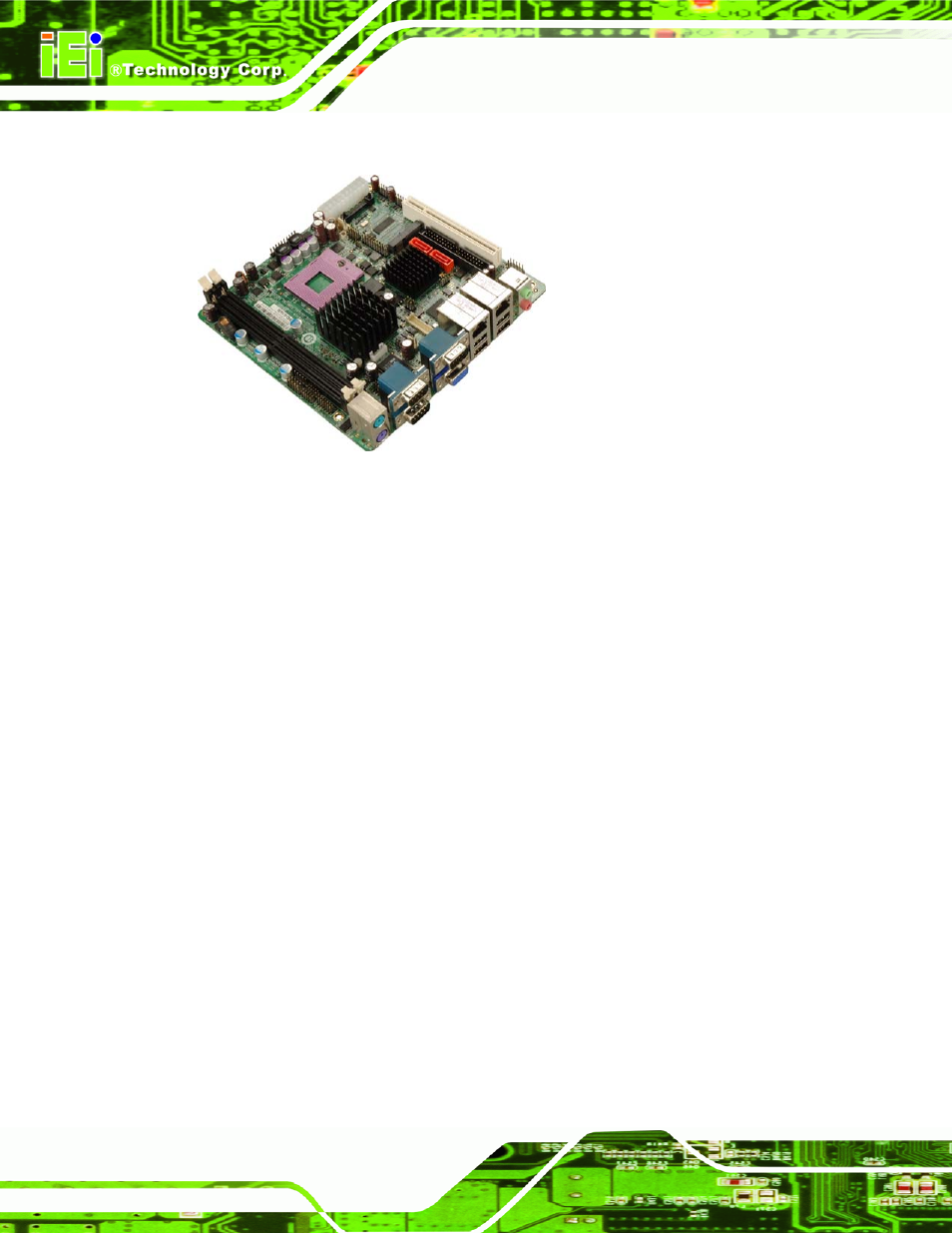

Figure 1-1: KINO-9652 Embedded SBC
The KINO-9652 Mini-ITX form factor motherboard is a Socket P Intel® Core
TM
2 Duo CPU
platform. The KINO-9652 has a maximum front side bus (FSB) frequency of 800 MHz and
comes with a VGA interface and dual PCI Express (PCIe) Gigabit Ethernet (GbE). The
KINO-9652 supports up to two, second-generation serial ATA (SATA) hard disk drives
(HDD) with maximum transfer rates of 3 Gbps and up to eight USB 2.0 devices. The
KINO-9652 also has a PCIe mini card socket and a PCI socket for system expansion.
Multiple display support adds versatility to the system enabling system integrators and
designers increased flexibility in selecting display panel options. Support for a trusted
platform module (TPM) provides additional system security during system boot-up.
1.1.1 KINO-9652 Features
Some of the KINO-9652 features are listed below:
Complies with RoHS
Supports Socket P Intel® Core™2 Duo processor
Supports a maximum FSB speed up to 800 MHz
Supports two 240-pin 2 GB (max.) 533/667 MHz DDR2 SDRAM DIMM
Dual PCIe GbE connectors
Supports two SATA II channels with transfer rates up to 3.0 Gbps
Supports eight USB 2.0 devices
