KINO-9652 Mini-ITX SBC

Page 82

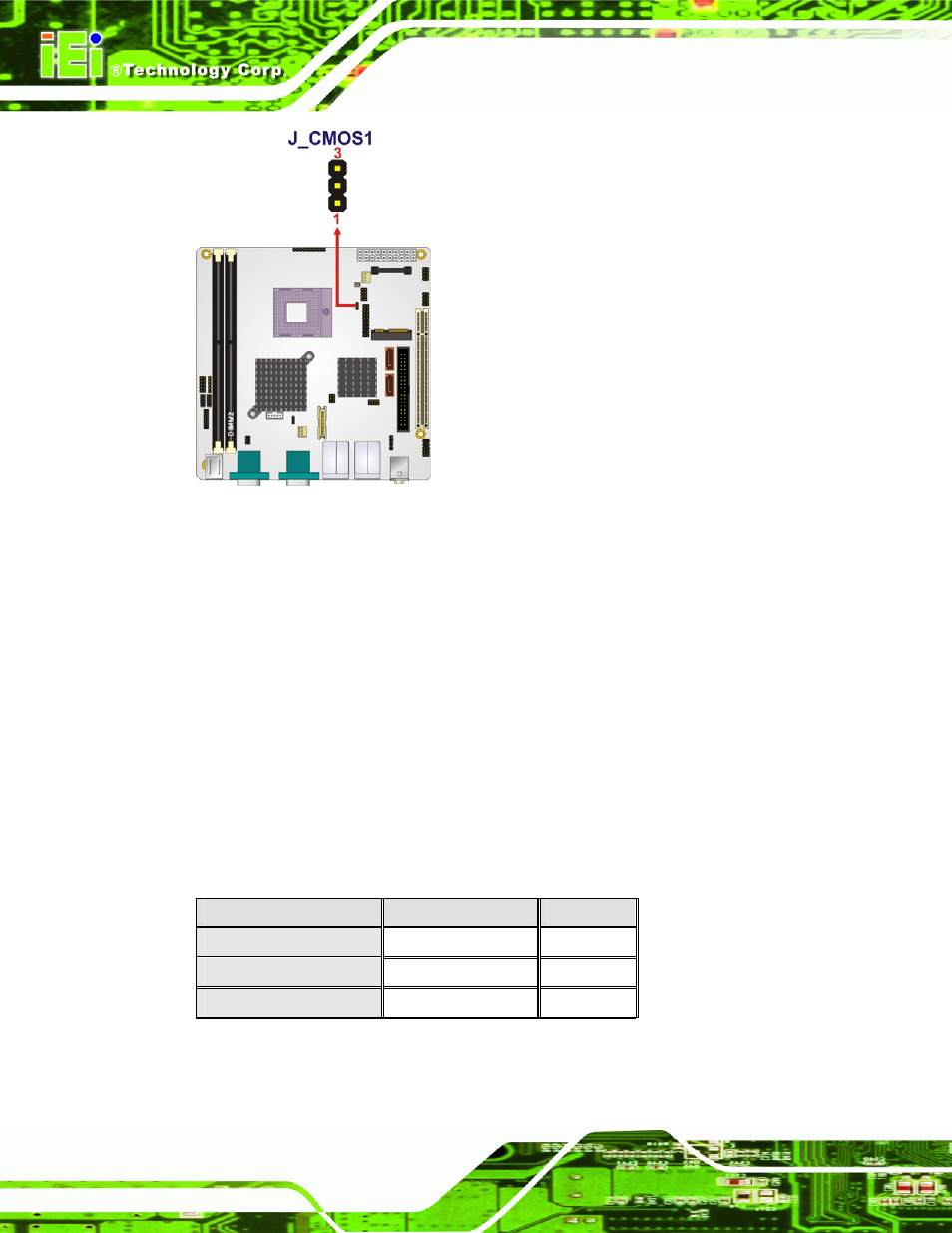

Figure 5-8: Clear CMOS Jumper

5.4.2 COM 4 Function Select Jumper

Jumper Label:

JP5

Jumper Type:

6-pin header

Jumper Settings:

See Table 5-3

Jumper Location:

See Figure 5-9

The COM 4 Function Select jumper sets the communication protocol used by the second

serial communications port (COM 4) as RS-232, RS-422 or RS-485. The COM 4 Function

Select settings are shown in Figure 5-9.

COM 4 Function Select

Description

Short 1-2

RS-232 Default

Short 3-4

RS-422

Short 5-6

RS-485

Table 5-3: COM 4 Function Select Jumper Settings
