KINO-9652 Mini-ITX SBC

Page 65

11 N/C

12 DDC

DAT

13 HSYNC

14 VSYNC

15 DDC

CLK

Table 4-19: VGA Connector Pinouts

4.3.3 Ethernet Connectors

CN Label:

LAN1_USB1 and LAN2_USB2

CN Type:

RJ-45

CN Location: See

Figure 4-18

CN Pinouts: See

Table 4-20

The KINO-9652 is equipped with two built-in GbE Ethernet controllers. The controllers can

connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN

DESCRIPTION

1 CT1

6 MDX2+

2 MDX0+

7 MDX2-

3 MDX0-

8 MDX3+

4 MDX1+

9 MDX3-

5 MDX1-

10

GND

Table 4-20: LAN1 and LAN2 Pinouts

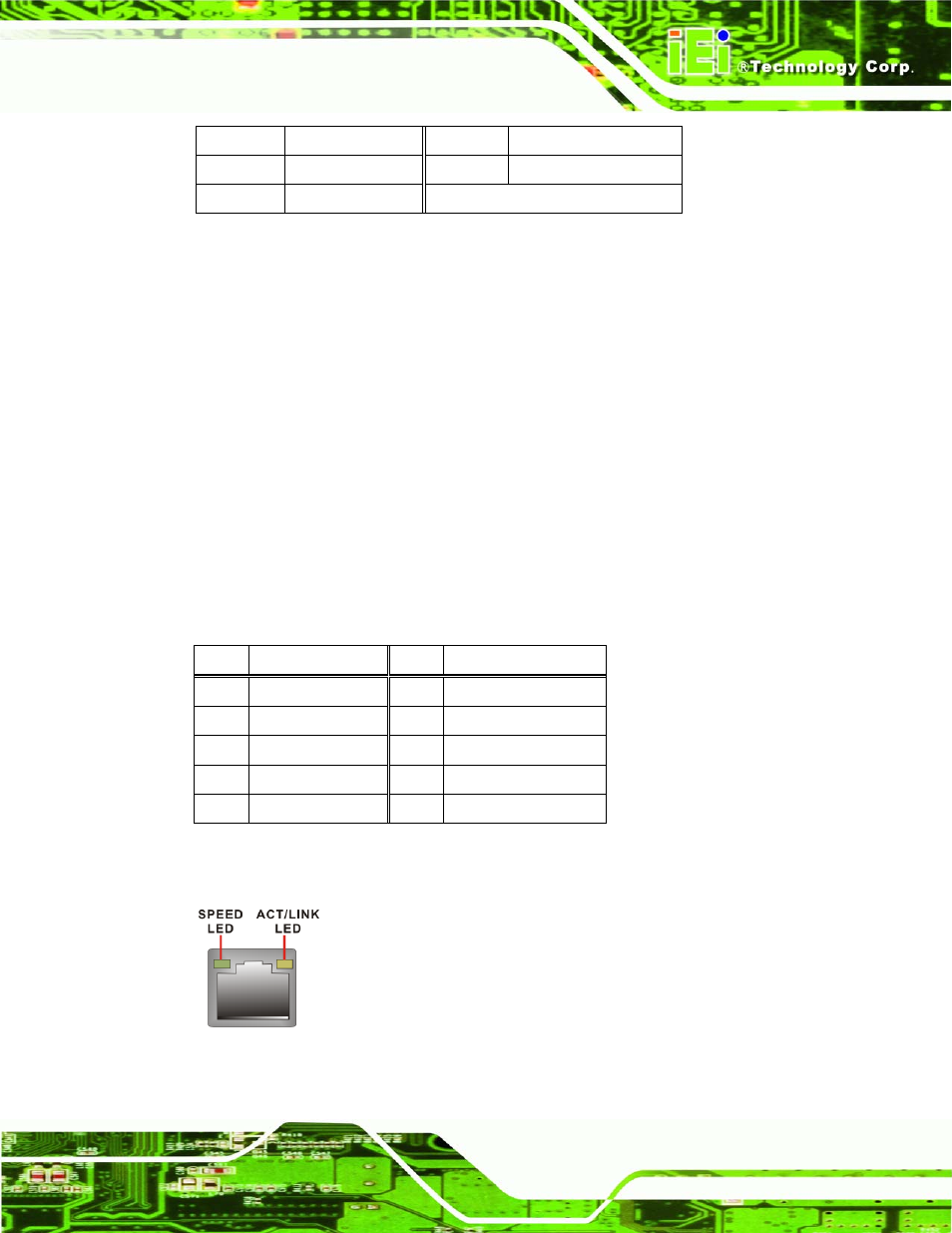

Figure 4-21: RJ-45 Ethernet Connector
