Short 3-4 & 7-8 1024 x 768 (24-bit)
Table 5-7: LVDS Resolution Selection Jumper Settings
The LVDS Voltage Selection jumper location is shown in Figure 5-12.

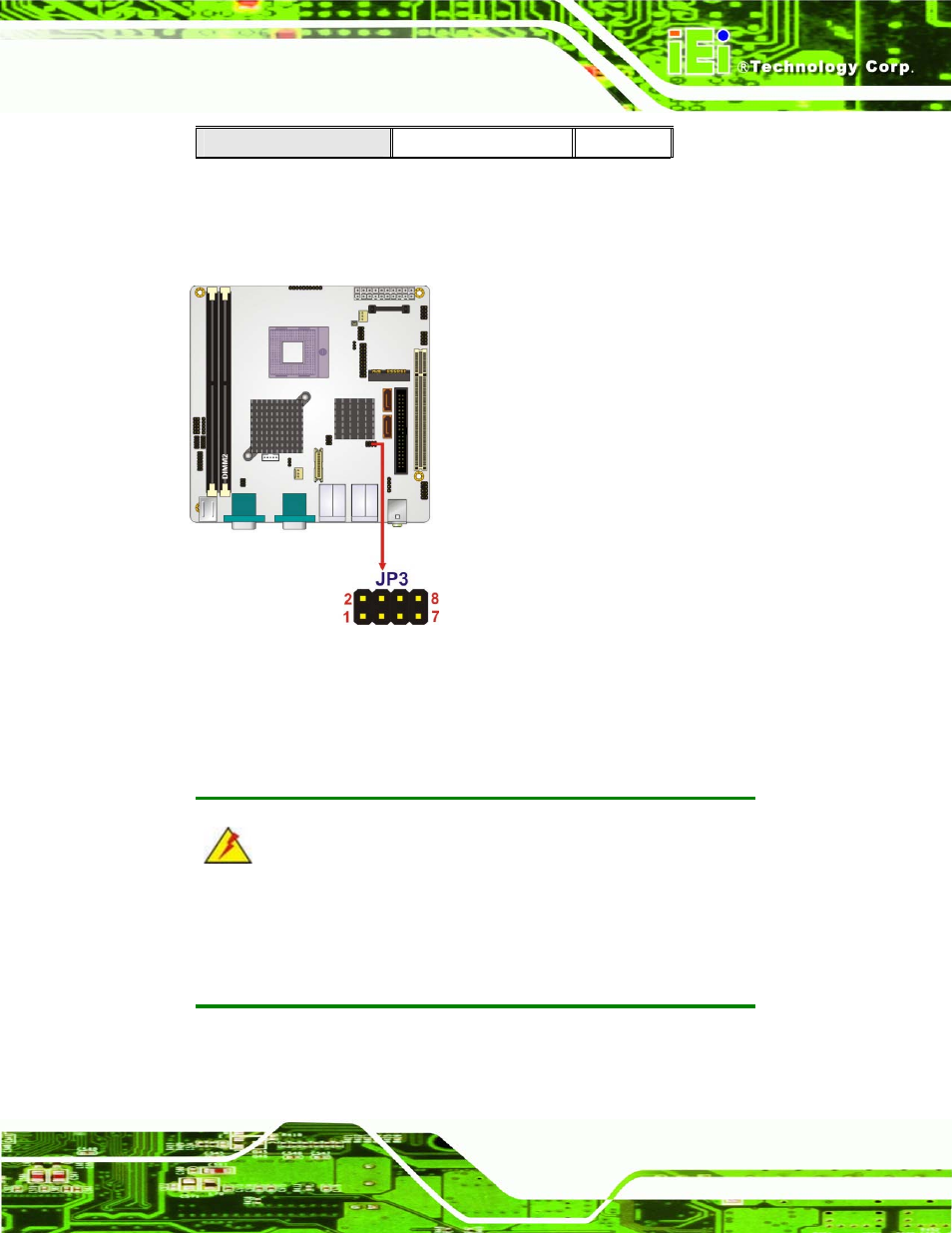

Figure 5-12: LVDS Resolution Selection Jumper Pinout Locations
5.5 Chassis Installation
5.5.1 Airflow
WARNING:
Airflow is critical to the cooling of the CPU and other onboard
components. The chassis in which the KINO-9652 must have air vents
to allow cool air to move into the system and hot air to move out.
The KINO-9652 must be installed in a chassis with ventilation holes on the sides allowing
airflow to travel through the heat sink surface. In a system with an individual power supply
