4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the KINO-9652.
4.2.1 Audio Connector
CN Label: FRONT-PANEL1
CN Type: 10-pin header (2x5)
CN Location: See Figure 4-2
CN Pinouts: See Table 4-3
The front panel audio connector connects the on-board sound system of the KINO-9652 to
the audio line out and microphone jacks on the front of the computer chassis.

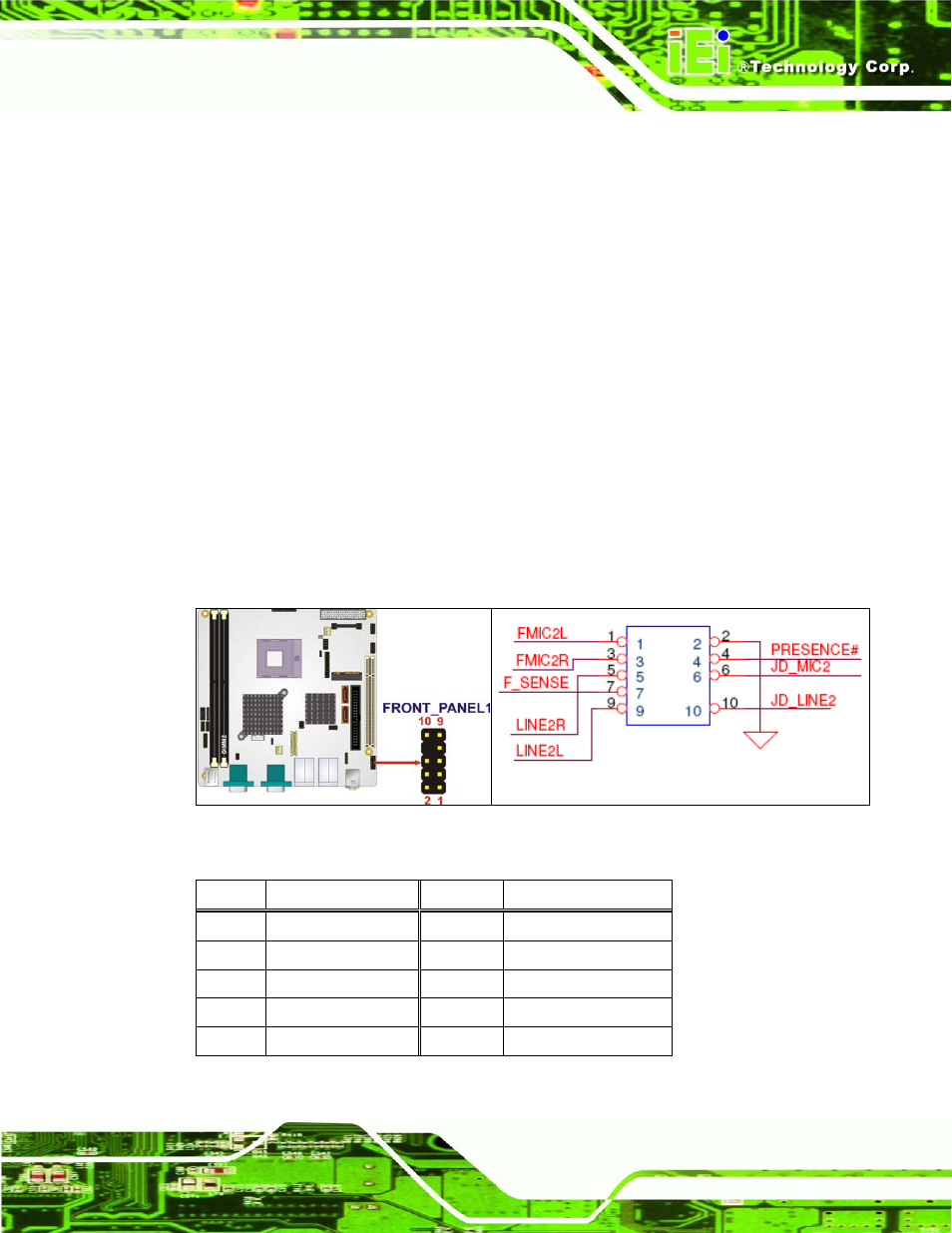

Figure 4-2: Audio Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 MIC-L 2 ANALOG GND
3 MIC-R 4 PRESENCE#
5 LINE-R 6 MIC-JD
7 FRONT-IO 8 NC
9 LINE-L 10 INE-JD
Table 4-3: Audio Connector Pinouts
