KINO-9652 Mini-ITX SBC

Page 86

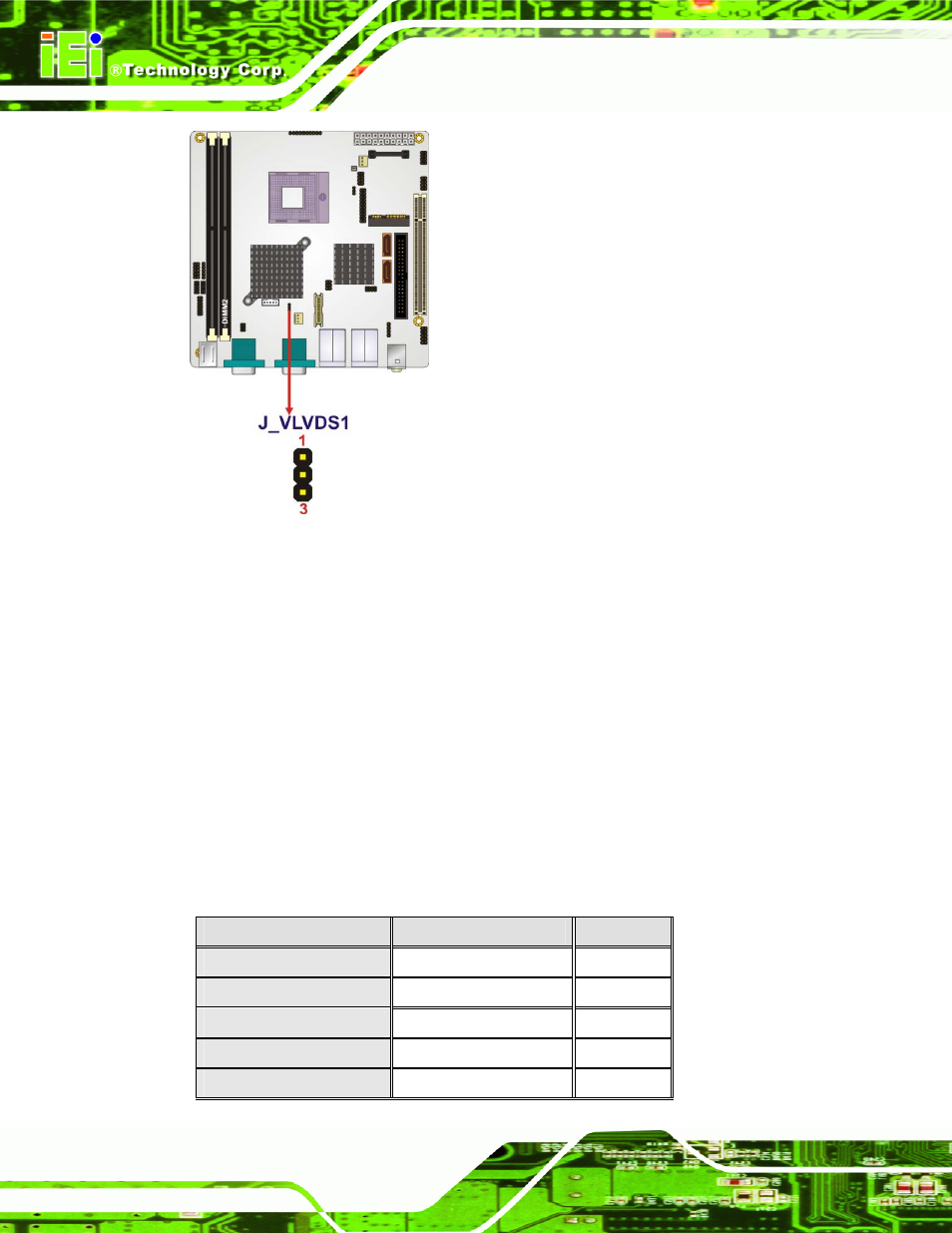

Figure 5-11: LVDS Voltage Selection Jumper Pinout Locations

5.4.5 LVDS Panel Resolution Selection

Jumper Label:

JP3

Jumper Type:

8-pin header

Jumper Settings:

See Table 5-7

Jumper Location:

See Figure 5-12

The LVDS Panel Resolution Selection jumper allows the LVDS screen resolution to be

set. The LVDS Panel Resolution Selection jumper settings are shown in Table 5-7.

LVDS Resolution Select

Description

Open

640 x 480 (18-bit)

Default

Short 1-2

800 x 600 (18-bit)

Short 3-4

1024 x 768 (18-bit)

Short 1-2 & 3-4

1280 x 1024 (48-bit)

Short 3-4 & 5-6

1600 x 1200 (48-bit)
