KINO-9652 Mini-ITX SBC
Page 23
The eight USB ports implemented on the KINO-9652 are connected to four internal
connectors and four external connectors. See Figure 2-12.

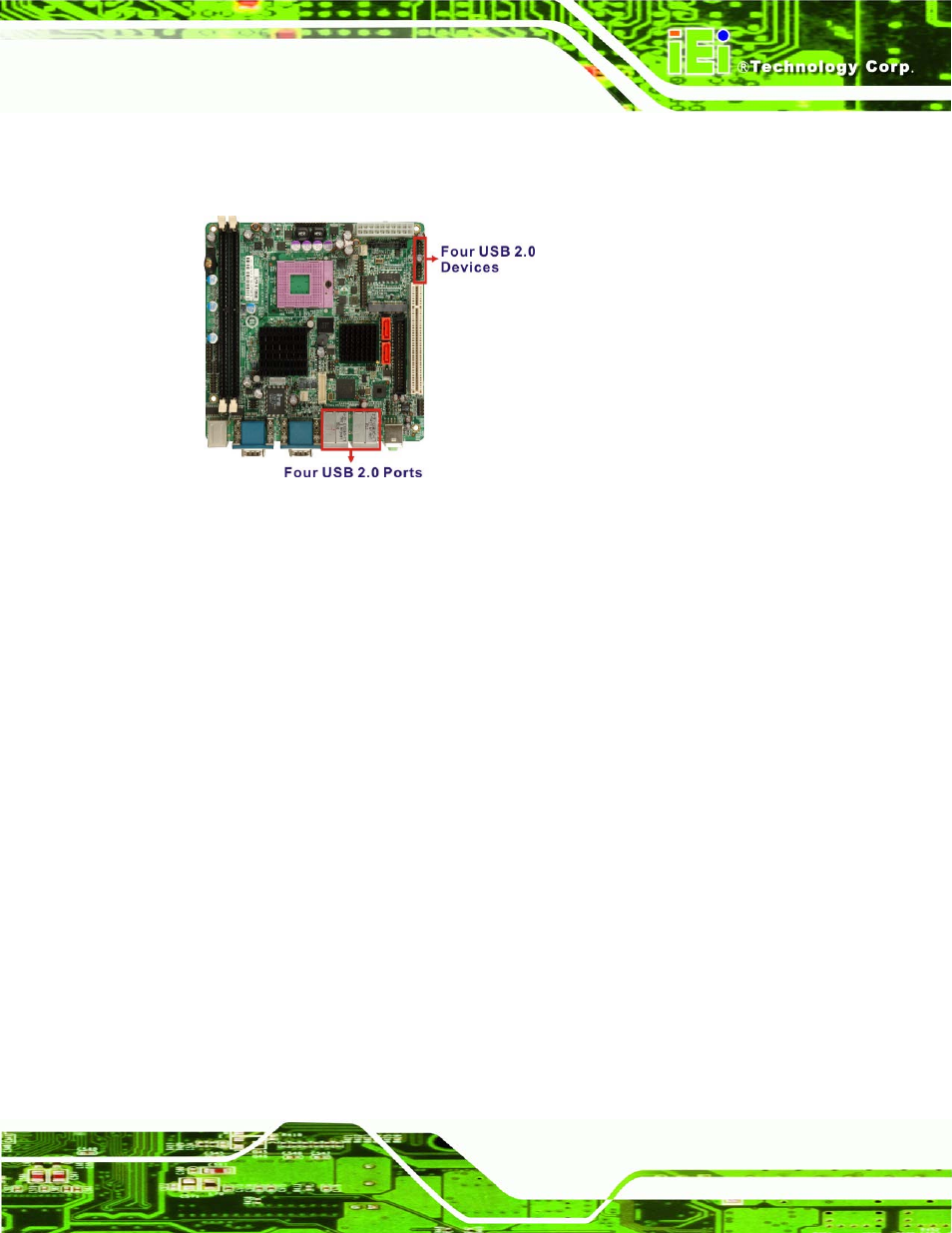

Figure 2-12: Onboard USB Implementation
2.7 PCIe Bus Components
2.7.1 PCIe Bus Overview
The PCIe bus is connected to components listed below:
One PCIe x 1 lane is connected to one PCIe mini card slot
One PCIe x1 lane is connected to one Intel® PCIe GbE connector
One PCIe x1 is shared with the Intel® ICH8ME Gigabit LAN Connect
Interface (GLCI), which is connected to a Intel® 82566MM Gigabit platform
LAN connect device
2.7.2 PCIe Mini Card Expansion
The ICH8ME has one PCIe x1 port reserved for a PCIe mini card. The PCIe x1 lane is
interfaced to a PCIe mini card slot on the KINO-9652. The PCIe x1 mini card is then
installed on the PCIe mini card slot on the KINO-9652.
