Vanguard EZCT-2000C Plus User Manual
Page 46
EZCT-2000C USER’S MANUAL
REV 1
42
3.3.5. Performing a Current Source Test (EZCT-2000C Plus Only)
The EZCT-2000C Plus’s programmable current source can be used to verify CT loads. The EZCT-
2000C Plus can output up to a 20A current (0-15Vac). To perform a current source test:

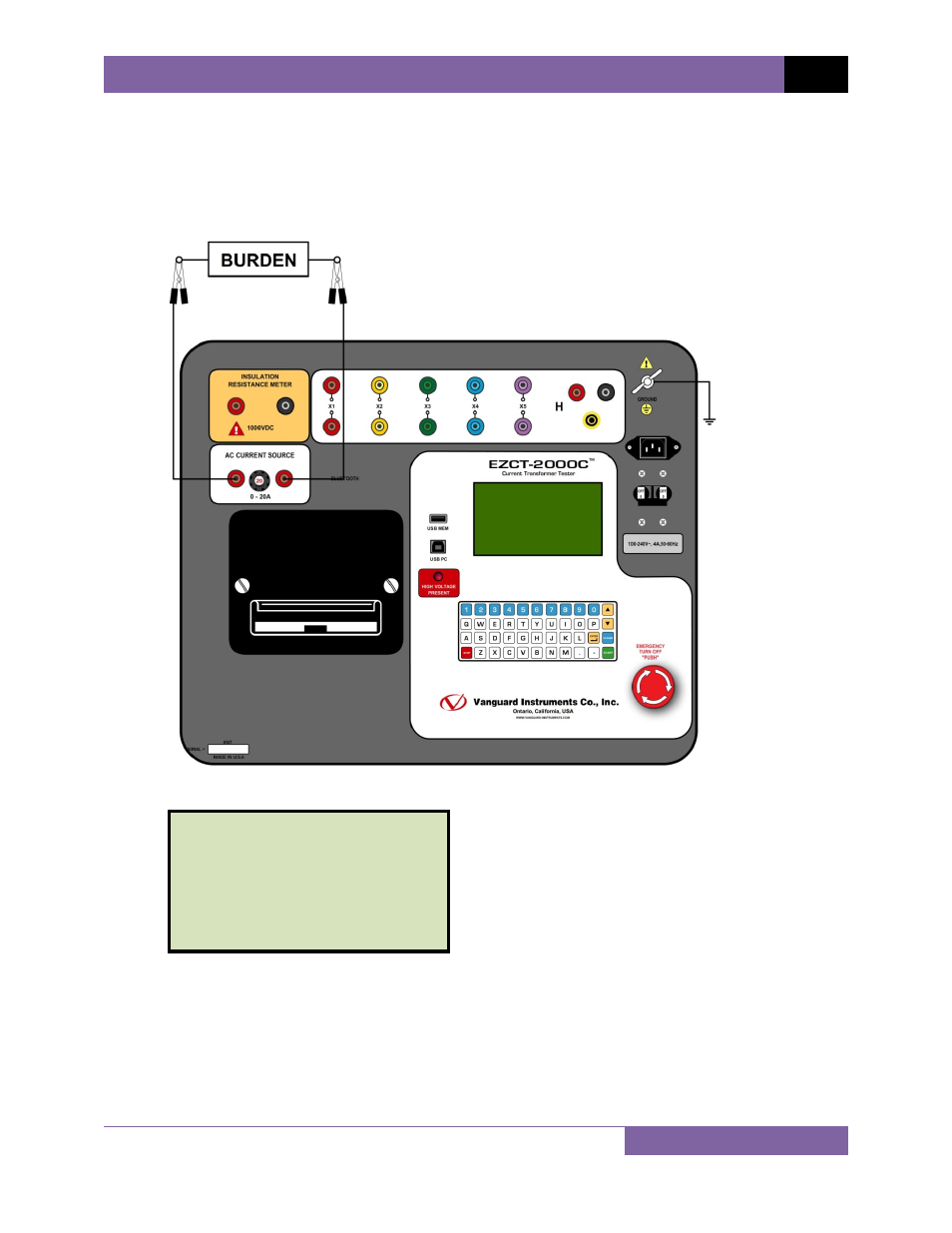

a. Make connections per the figure below:
b. Start from the “START-UP” menu:
Press the
[5]
key (CURRENT SOURCE).
1.
RUN TEST 04/17/13
2.
SETUP 10:15:25
3.
TEST PLANS
4.
DIAGNOSTICS
5.
CURRENT SOURCE
