Vanguard EZCT-2000C Plus User Manual
Page 41
REV 1 EZCT-2000C USER’S MANUAL
37
3.3.4. Performing an Insulation Resistance Test
To perform an insulation resistance test:

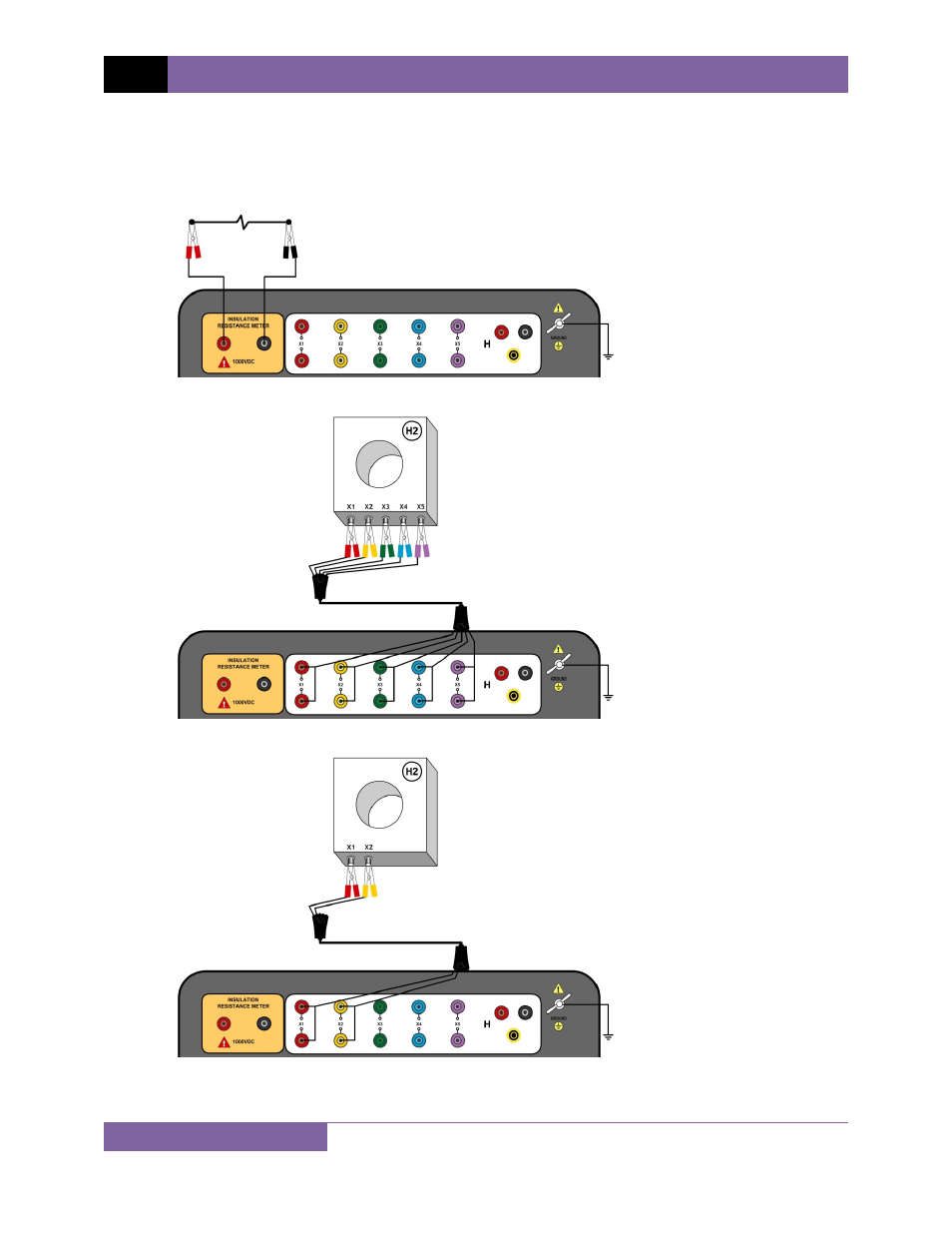

a. Make connections per Figure 12, 13, or 14 below:
Figure 14. Connections for a typical high resistance measuring application
Figure 15. Connections for a typical insulation resistance measurement for a CT with 5 terminals
Figure 16. Connections for a typical insulation resistance measurement for a CT with 2 terminals
