Operator's Manual

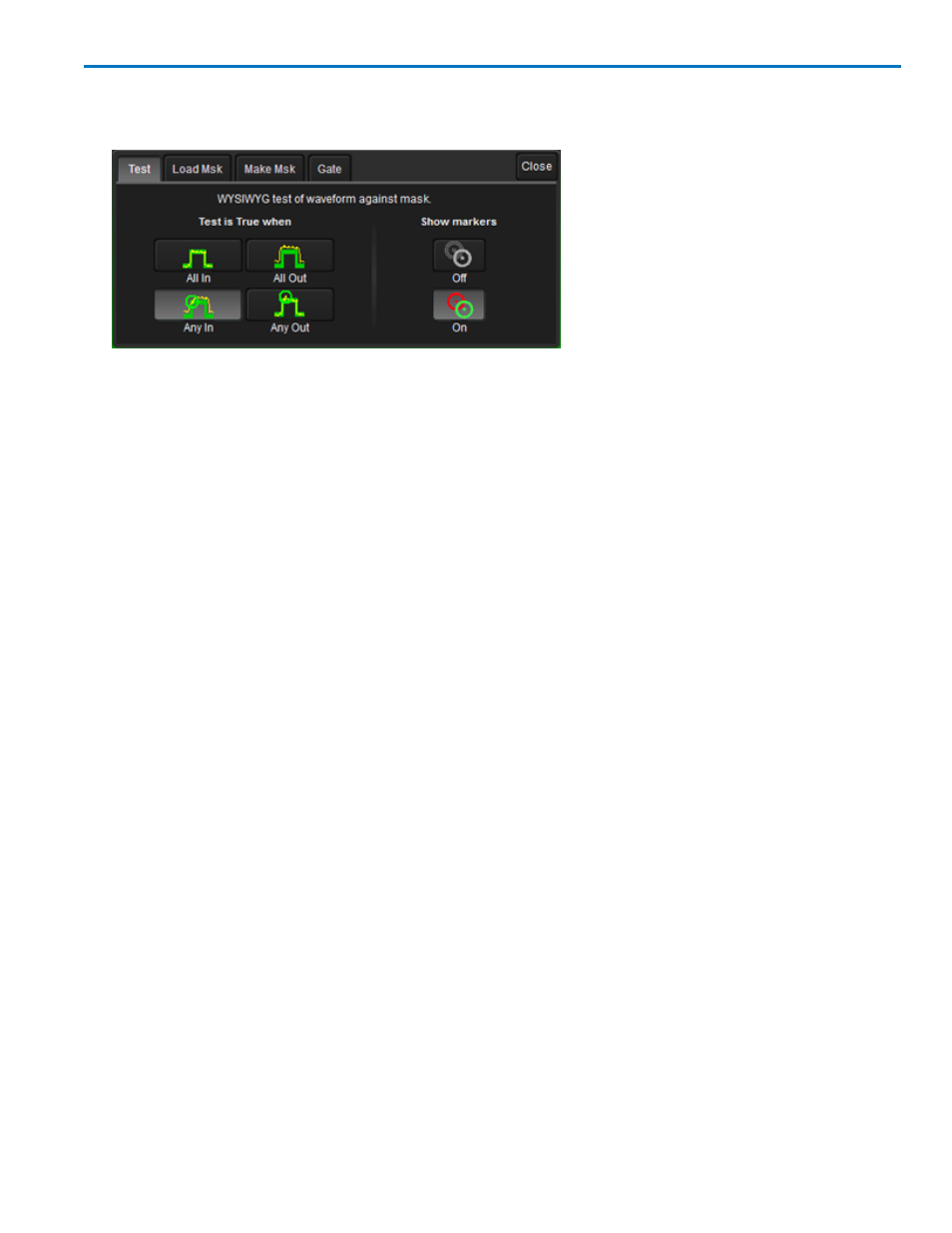

Define Test
1. Touch the Test tab to display the dialog.
2. Select one of the conditions that, when True (yes), result in a Pass.
3. Optionally, turn Off/On markers. Markers visually indicate where on the waveform mask violations
have occurred.
Removing a Mask from the Display
1. Access theQx dialog where the mask is set.
2. On the Load Mask right-hand dialog, click the Delete button.
922499 Rev B 95
