7

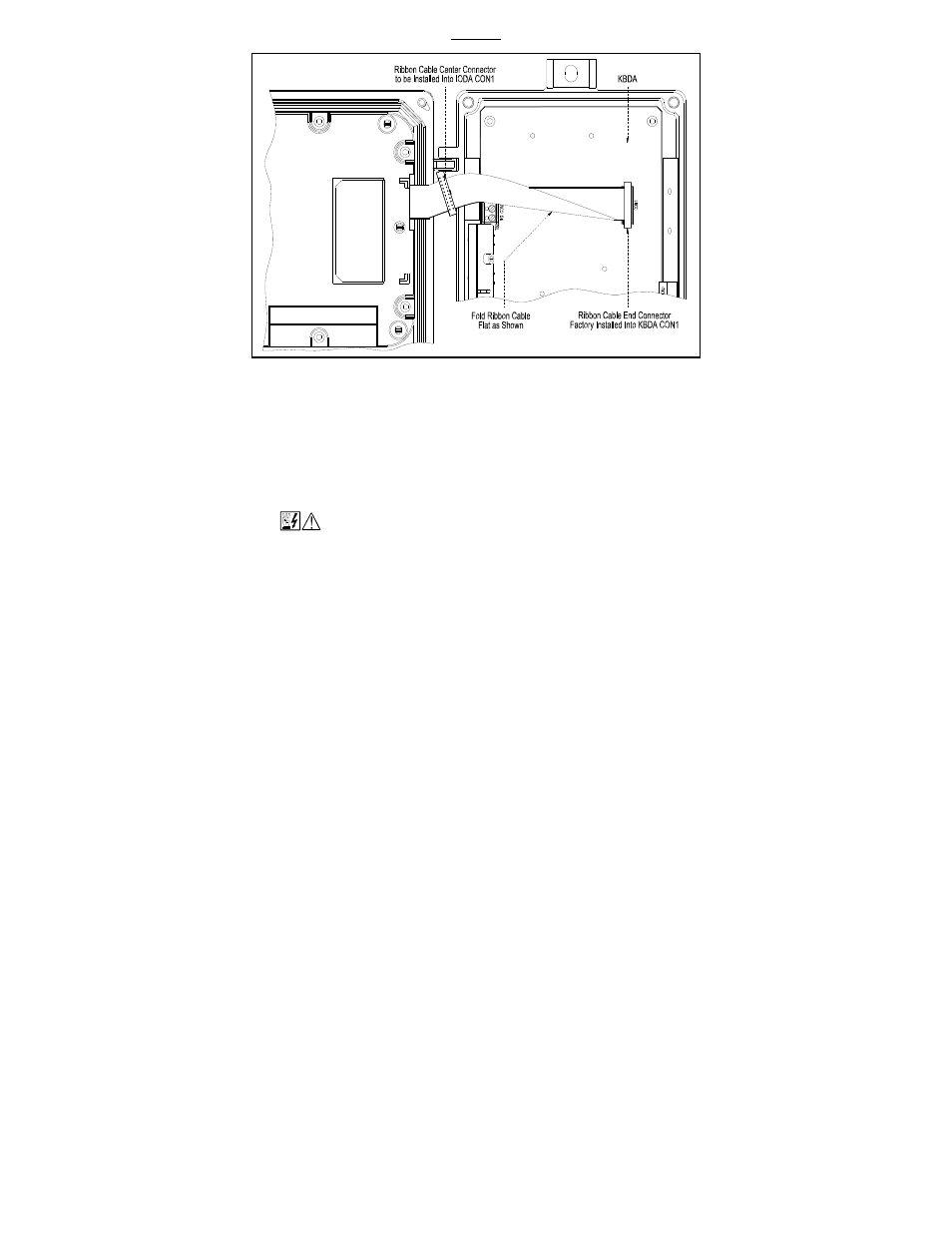

FIGURE 2
KBDA LAYOUT
*Model KBDA-24D shown. Layout of Models KBDA-27D, 29, 45, 48 varies slightly.
3 INSTALLATION
INSTRUCTIONS
The IODA is designed to be installed onto the KBDA PC board with a mounting base
and screws provided. The ribbon cable in the KBDA contains a connector which is to
be plugged into the mating connector on the IODA. See Figures 8 and 9, on pages 11
and 12, showing the IODA installed onto the KBDA PC board.
See Figure 3, on page 8, for the exploded view of the KBDA and IODA assembly.
WARNING! HIGH VOLTAGE – Read Safety Warning, on page 4, before
using the drive. Disconnect main power before making connections to the IODA
or the drive. To avoid electric shock, be sure to properly ground the drive.
