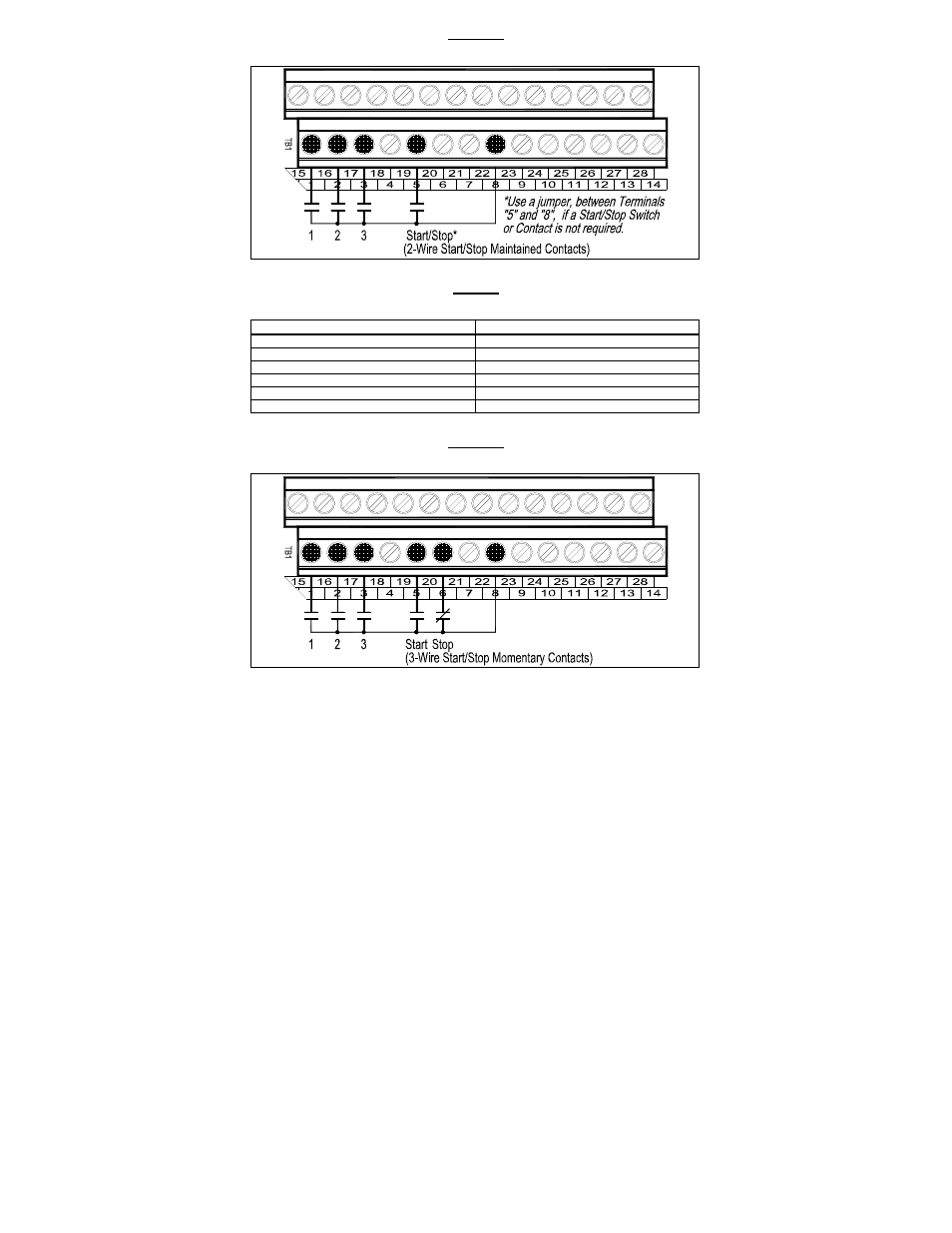

FIGURE 11

UNIDIRECTIONAL PRESET FREQUENCY SELECTION

WITH 2-WIRE START/STOP CONNECTIONS

Note: Use Function Nos. 7.07 – 7.13 to program the desired Preset Frequencies.

TABLE 5

UNIDIRECTIONAL PRESET FREQUENCY SELECTION

WITH 2-WIRE START/STOP PROGRAMMING

Function No.

Code/Range

1.00: Run/Stop-Forward/Reverse Control 0001:

External Contacts

3.00: Stored Set Frequency 00.00

7.00: Multi-Function Input Terminal 1 0000:

Preset Frequency Operation*

7.01: Multi-Function Input Terminal 2 0001:

Preset Frequency Operation*

7.02: Multi-Function Input Terminal 3 0002:

Preset Frequency Operation*

7.04: Multi-Function Input Terminal 5 0010:

N.O. Start*

*Factory setting.

FIGURE 12

UNIDIRECTIONAL PRESET FREQUENCY SELECTION

WITH 3-WIRE START/STOP CONNECTIONS

Note: Use Function Nos. 7.07 – 7.13 to program the desired Preset Frequencies.
