IAI America FS User Manual

Page 48

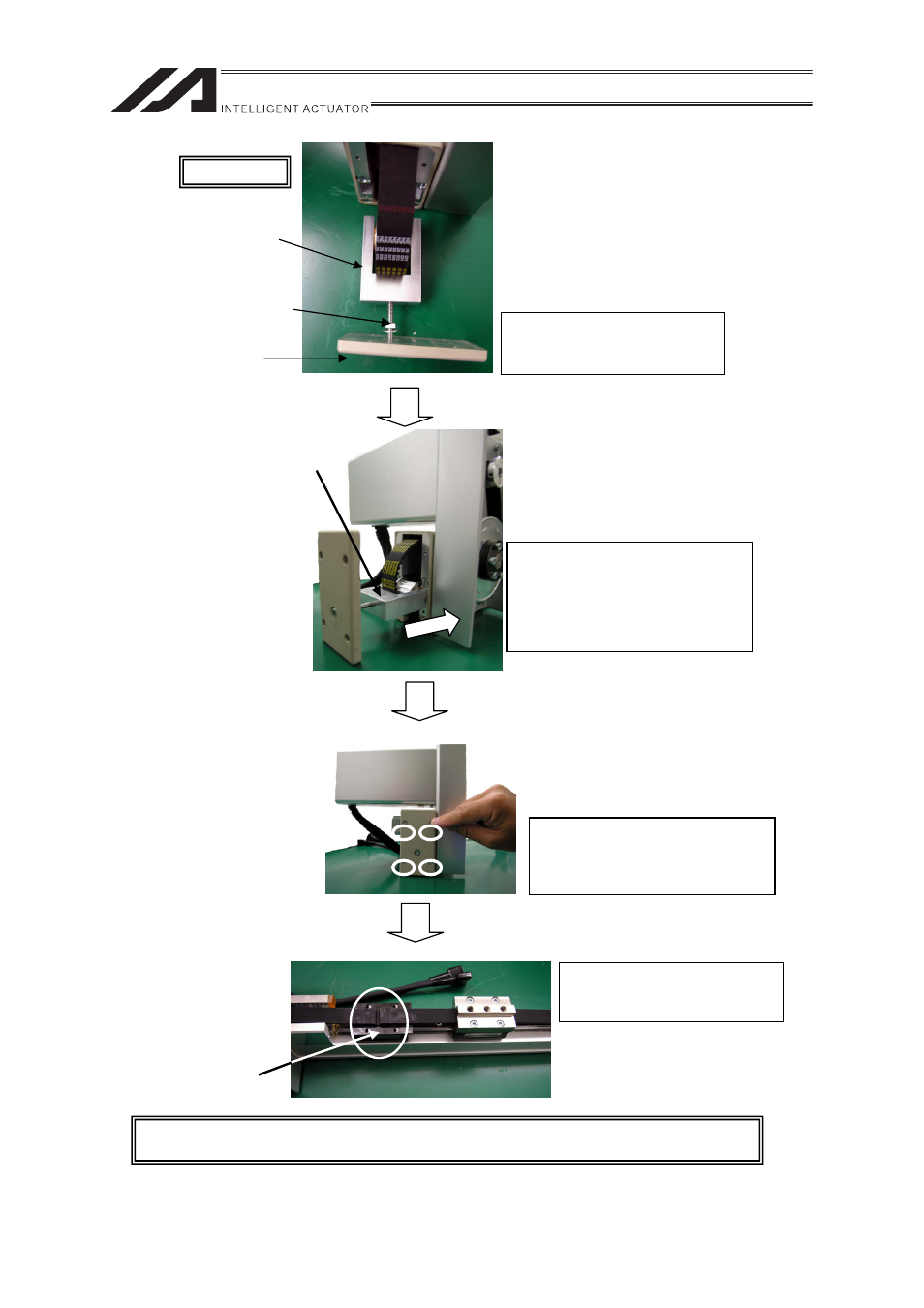

End Cover

Motor Side

Using the tension adjustment
bolt, attach the end cover to
the tension adjuster.

Tension
Adjustment Bolt

Push in the tension adjuster
completely in the direction
shown with the arrow.
(Use a hexagon wrench with the

distance to the opposite side of
4mm.)

(Note)

Have the driving belt to make its ends adjusted in the center of the attachment
teeth part. Cut the driving belt if it is too long.

Pull the replacement driving
belt to align it with the teeth
on the attachment part.

Teeth on
Attachment Part

Attach the end cover.
(Use a hexagon wrench with the

distance to the opposite side of
2.5mm.)

Tension
Adjuster
