MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Take Apart — Backup Battery

94

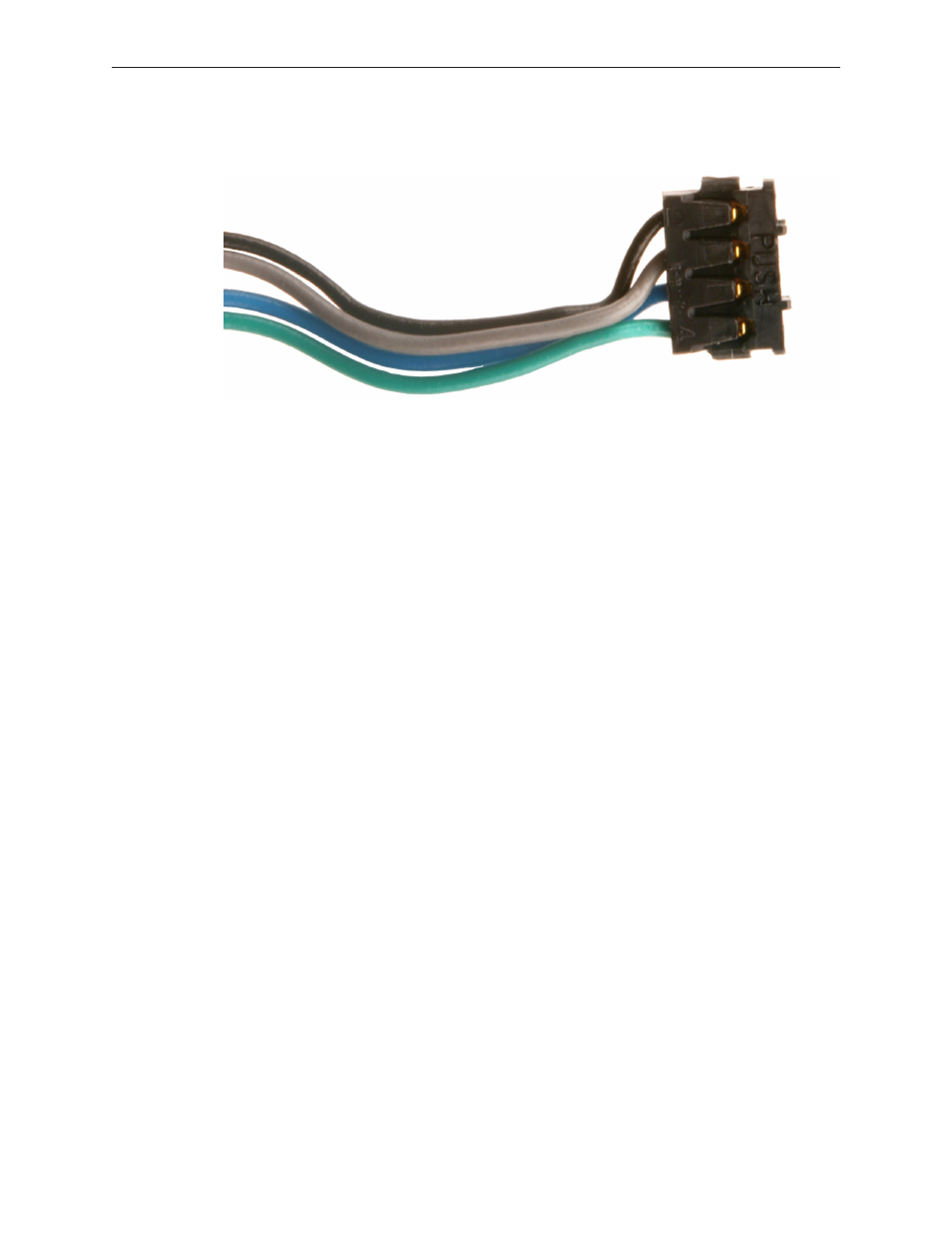

Note: Given a very keen eye, one way to distinguish the right side up of a JST connector is by
looking for the word ‘push’ on the top side of the connector, as shown below.
