MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Take Apart — Display Assembly
148
Replacement Procedure

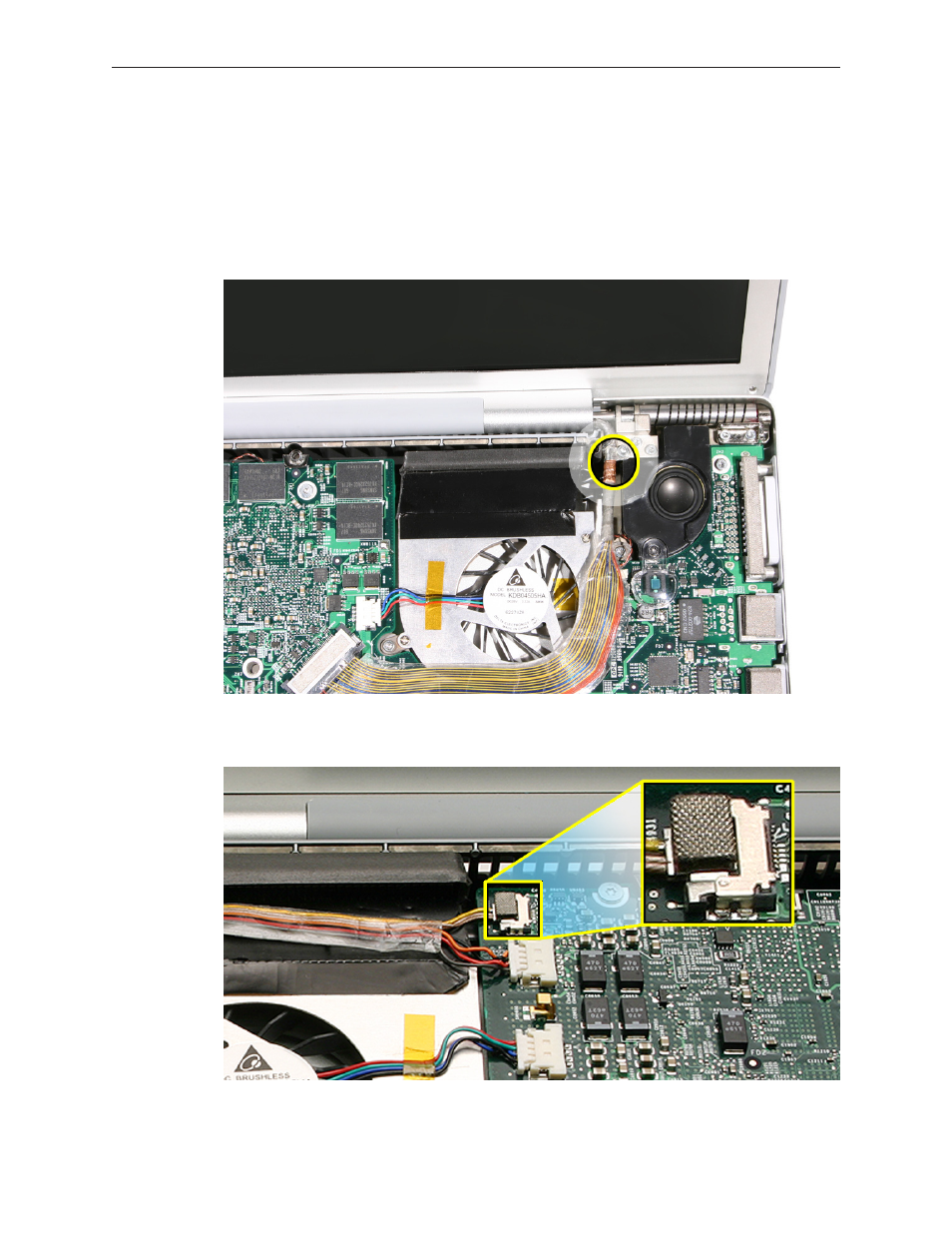

Before installing the display assembly, verify that all cables are routed out of the way.
1.
Install the replacement display assembly, and reconnect all cables and antennas.
2.
Make sure to capture the LVDS cable grounding loop with the screw., and that the cable is
3.
secure and lays flat.
Verify that the EMI gasket is on the camera cable connector.
4.
