Procedure – Apple MacBook Pro 17-inch (original, Core 2 Duo, 2.4GHz, Late 2007 CTO, Early 2008, and Late 2008) User Manual
Page 146
MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Take Apart — Display Assembly
146
Procedure
Note: Some photo details below may differ slightly from the model of 17-inch MacBook Pro you
are repairing; however, the procedure itself remains consistent for any of the models.
Disconnect two antenna connectors for the MacBook Pro (17-inch original and Early 2008)
1.
or three connectors for the MacBook Pro (17-inch Core 2 Duo and 2.4GHz) from the AirPort
Extreme card. Lift straight up.
Note: Take note of the order of the antenna connectors for reinstallation purposes.

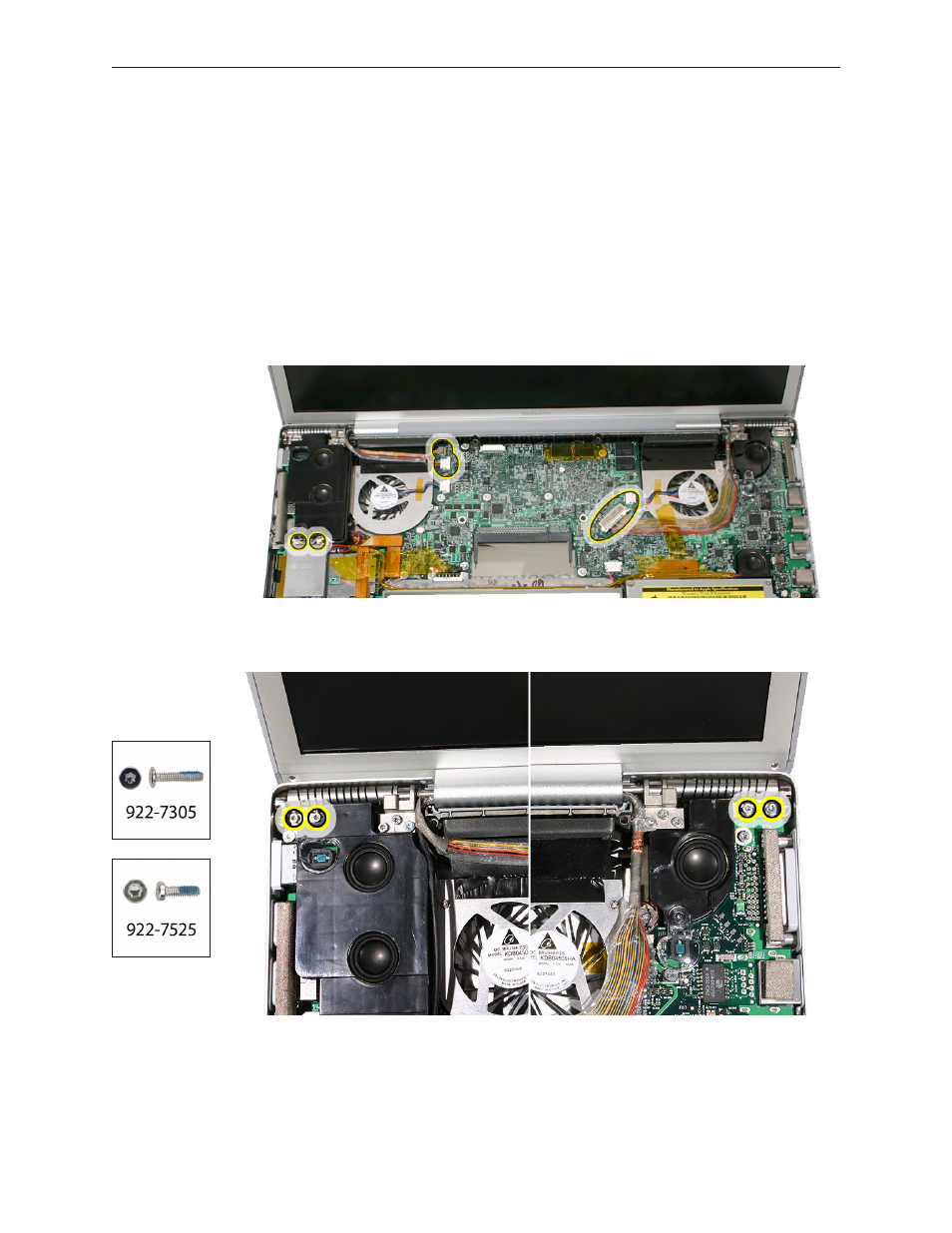

Disconnect three cable connectors on the logic board—the camera and inverter connectors
2.
and the LVDS connector.
Remove the four clutch spring end cap screws, two each side.
3.
