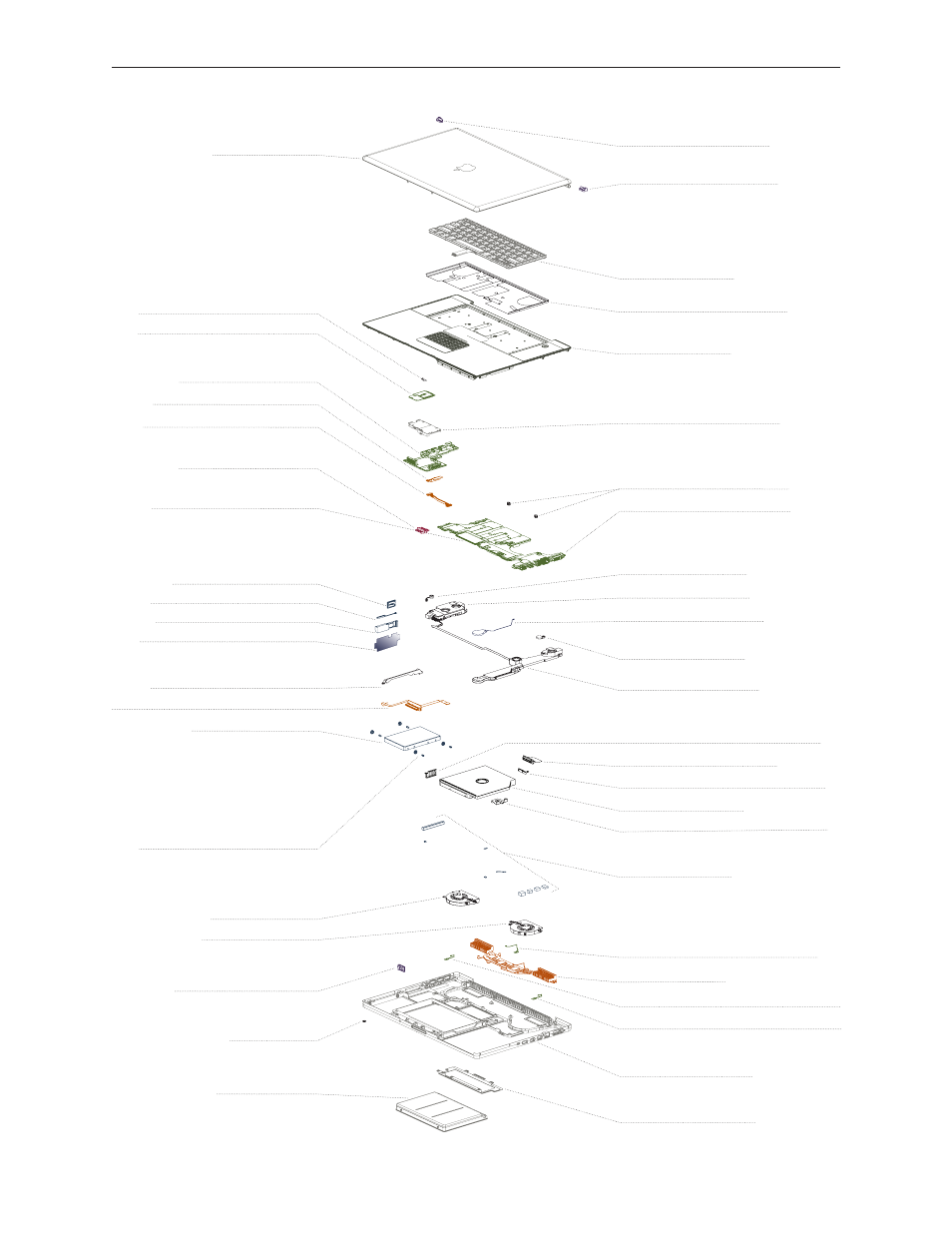

MacBook Pro (17-inch 2.4GHz) Exploded View
Keyboard (922-8102)
Top Case (922-8103)
Logic Board 2.4 GHz (661-4364)
2.6 GHz (661-4596)
Logic Board Sleeves (922-7538)
Microphone (922-7507)
Left Speaker (922-8108)
Backup Battery (922-7952)
Ambient Light Sensor Dust
Cover, Right (922-7537)
Right Speaker (922-8107)
Optical Drive Left Bracket (922-7542)
Optical Drive Flex (922-8112)
Optical Drive Rear Bracket (922-7544)
SuperDrive (661-4282)
Optical Drive Right Bracket (922-7543)
Gasket Kit (076-1241)
Heatsink (922-7951)
Thermal Sensor, Heatsink (922-8104)
Thermal Sensor, Bottom Case, left (922-8113)
Bottom Case (922-8117)
Left Clutch Spring End Cap
(922-7528)
Right Clutch Spring End Cap
(922-7529)
Memory Door (922-8115)
Display Assembly...
AG, matte, better (661-4346)
glossy, better (661-4347)
AG, matte, hi-res (661-4370)
glossy, hi-res (661-4371)
Airport Card EMI Clip (922-7968)
AirPort Extreme Card (661-4058)
ExpressCard Cage (922-8105)
Left I/O Board (922-8109)
Left I/O Board Flex (922-8110)
Left I/O Board Cable (922-7960)
Left Fan (922-8106)
Right Fan (922-7954)
Infrared Board (922-7603)
Foot (076-1064)
Battery (661-4231)
Battery Cable (922-7956)
Memory (SDRAM DDR2 667)...
1GB (661-4365)
2GB (661-4366)
Bluetooth Card (922-7189)
Bluetooth Antenna (922-7955)
Bluetooth Bracket (922-7965)
Bluetooth Foil Shield (922-7969)
Hard Drive Bracket (922-7966)
Hard Drive/Bluetooth Flex (922-8111)
Hard Drive (SATA)...
160GB, 5400 (661-4280)
160GB, 7200 (661-4359)
200GB, 4200 (661-4281)
200GB, 7200 (661-4582)
250GB, 5400 (661-4583)
Hard Drive Screws & Grommets
(076-1222)
Keyboard Insulators (076-1218)
Thermal Sensor, Bottom Case, right (922-7962)
