MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Take Apart — Logic Board
124

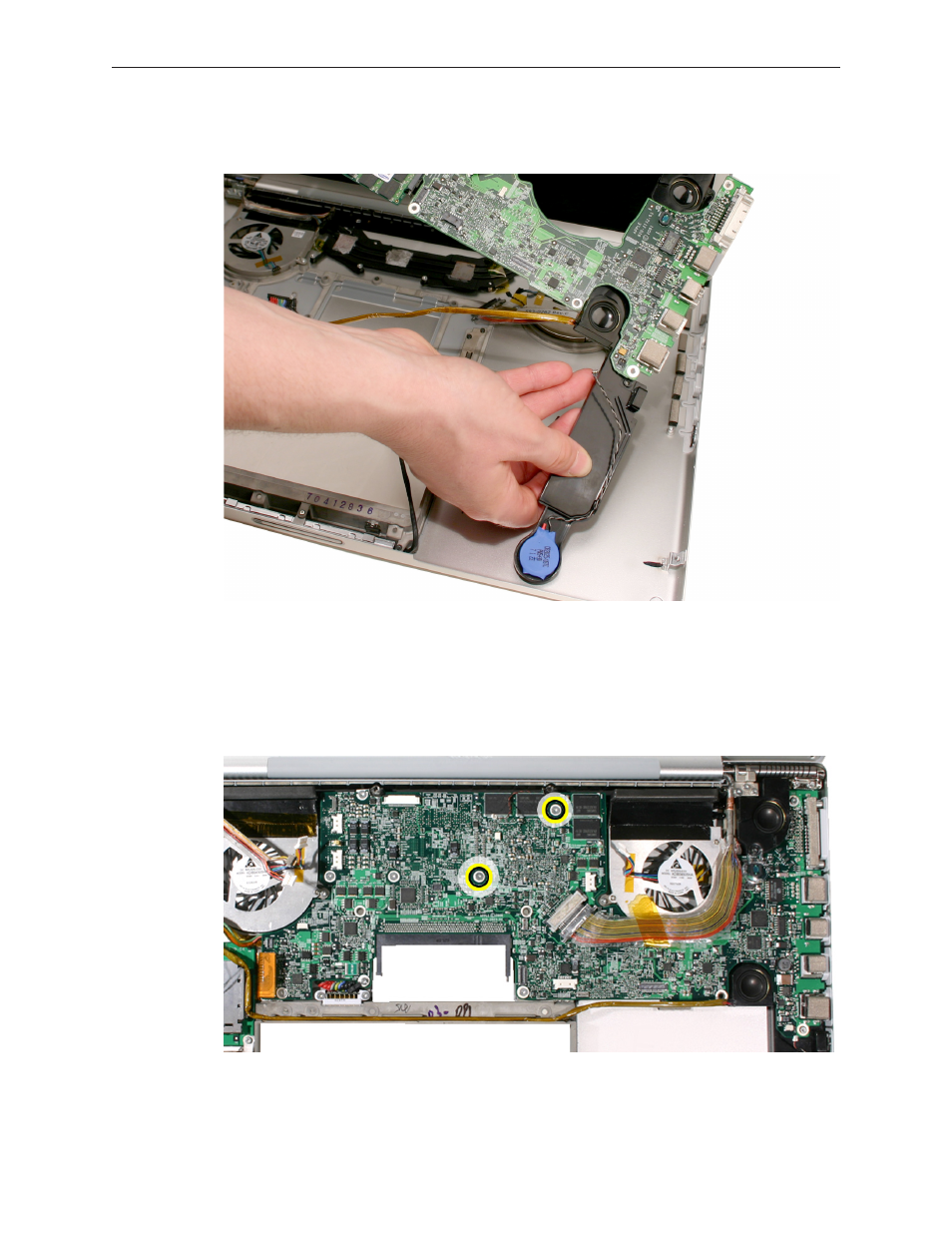

After lifting the logic board clear of the bottom case, separate the speaker from the logic
8.
board by sliding it directly down to clear the lip on the speaker enclosure.
Remove the logic board.
9.
Important: In the MacBook Pro (17-inch Core 2 Duo) only, there are two metal shims either
on the under side of the logic board or on the heatsink heatpipes near the graphics chip
(see location callouts below). If reusing this logic board, make sure those shims retain their
position above the heat sink posts.
