MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Views — Exploded View
201

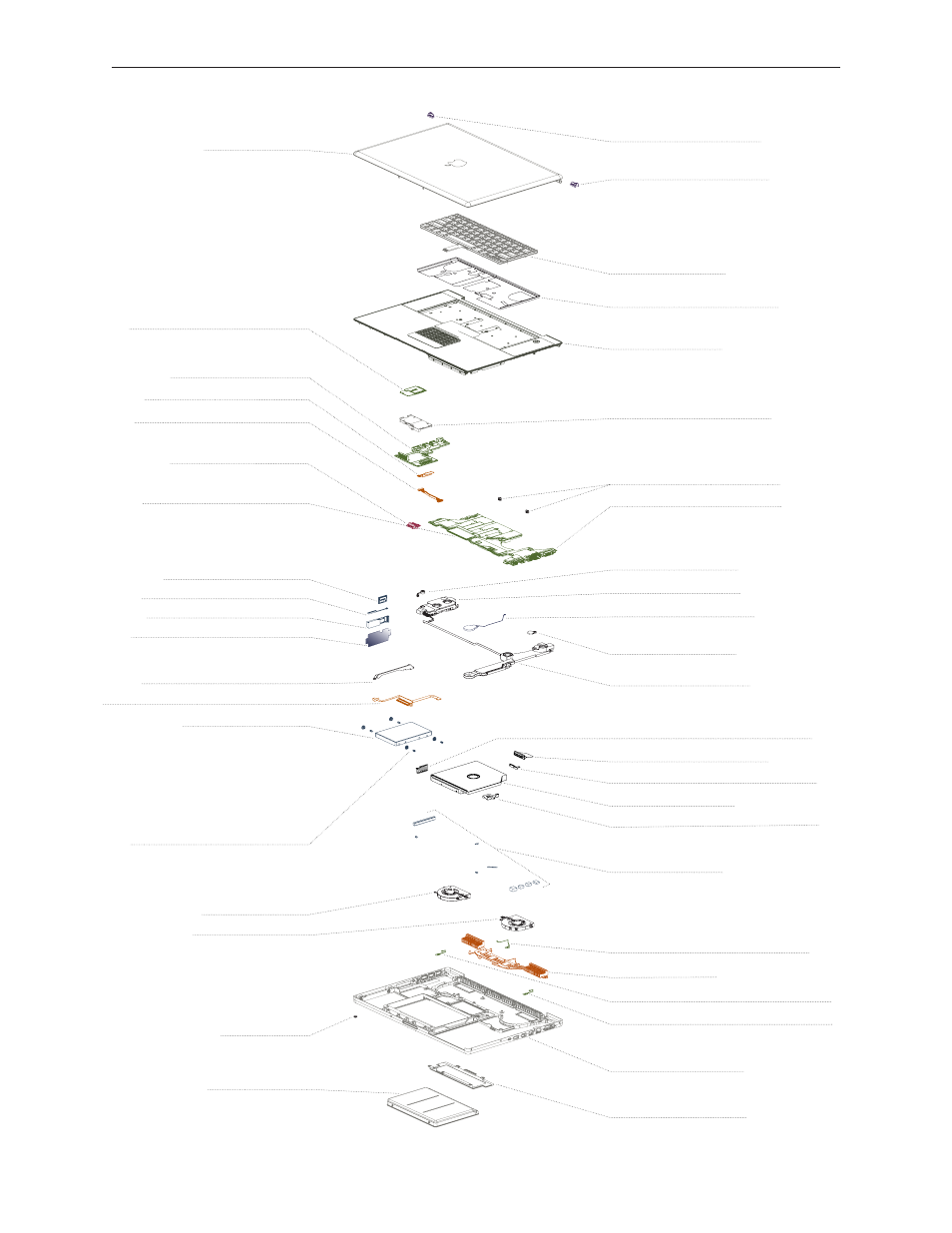

MacBook Pro (17-inch Early 2008) Exploded View
Keyboard (922-8388)
Top Case (
922-8389
)
Logic Board 2.5 GHz (
661-4625
)
2.6 GHz CTO (661-4690)
Logic Board Sleeves (922-7538)
Microphone (
922-8392
)
Left Speaker (
922-8393
)
Backup Battery (
922-8397
)
Ambient Light Sensor Dust
Cover, Right (922-7537)
Right Speaker (
922-8394
)
Optical Drive Left Bracket (922-7542)
Optical Drive Flex (
922-8403
)
Optical Drive Rear Bracket (922-7544)
SuperDrive (
661-4622
)
Optical Drive Right Bracket (922-7543)
Gasket Kit (076-1281)
Heatsink (
922-8390
)
Thermal Sensor, Heatsink (
922-8406
)
Thermal Sensor, Bottom Case, left (
922-8404
)
Bottom Case (
922-8407
)
Left Clutch Spring End Cap
(922-7528)
Right Clutch Spring End Cap
(922-7529)
Memory Door (
922-8408
)
Display Assembly...
AG, matte, better (
661-4626
)
glossy, better (
661-4627
)
AG, matte, hi-res (
661-4628
)
glossy, hi-res (
661-4629
)
AirPort Extreme Card (
661-4594
)
ExpressCard Cage (
922-8409
)
Left I/O Board (
922-8391
)
Left I/O Board Flex (
922-8401
)
Left I/O Board Cable (
922-8400
)
Left Fan (
922-8395
)
Right Fan (
922-8396
)
Foot (076-1064)
Battery (
661-4618
)
Battery Cable (
922-8399
)
Memory (SDRAM DDR2 667)...
1GB (
661-4623
)
2GB (
661-4624
)
Bluetooth Card (
922-8467
)
Bluetooth Antenna (
922-8398
)
Bluetooth Bracket (
922-8411
)
Bluetooth Foil Shield (922-7969)
Hard Drive Bracket (922-7966)
Hard Drive/Bluetooth Flex (
922-8402
)
Hard Drive (SATA)...
200GB, 7200 (
661-4619
)
250GB, 5400 (661-4620)
300GB, 4200 (
661-4621
)
Hard Drive Screws & Grommets
(922-7941)
Keyboard Insulators (076-1282)
Thermal Sensor, Bottom Case, right (
922-8405
)
