MacBook Pro 17-inch (original, Core 2 Duo, 2.4/2.6GHz, 2008) Take Apart — Logic Board
121

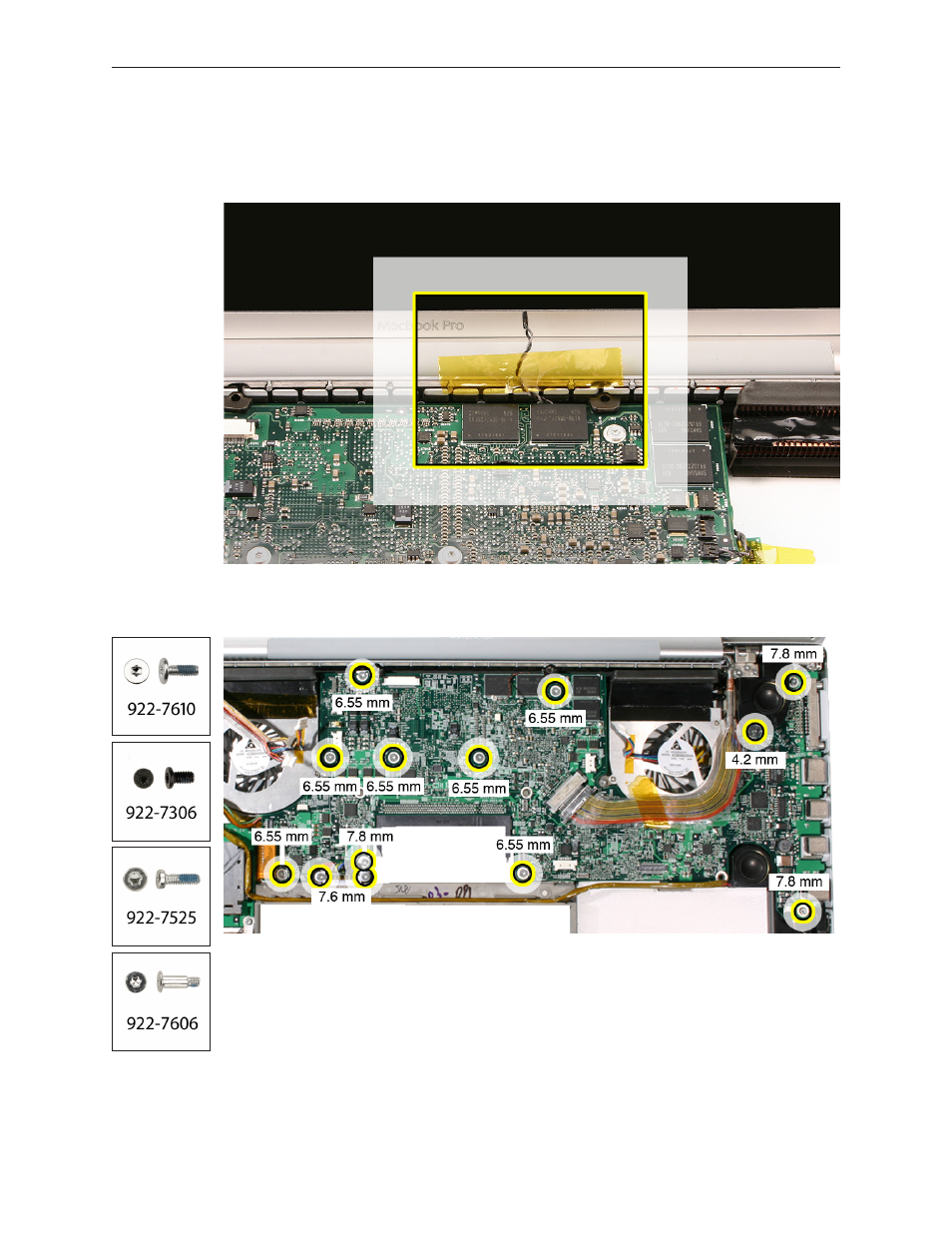

Tape the thermal sensor cable to the display assembly to avoid getting it trapped under the
1.
logic board and forgetting it during reassembly. Important: Do not tape over connectors
with exposed contacts. Residual adhesive from the tape can contaminate the contacts.
Remove the thirteen Torx T6 screws, shown.
2.
Warning: Do NOT allow the logic board to flex at any time. Flexing the board can crack
3.
solder joints to components. Give special attention at the narrow neck of the fan cutout.
