Receiver and hub mounting – Agilent Technologies Agilent E6474A User Manual
Page 67
Set Up Your System
3
Agilent E6474A User’s Guide
67
Receiver and hub mounting
Refer to
Figure 34
on page 68 for receiver and Direct Connect
Hub mounting positions. Use the straps provided to secure the
components to the platform.
1 Remove the inner component platform from the backpack.
2 Attach the receivers to the platform.
3 Attach the hub, battery and chassis assembly to the platform.

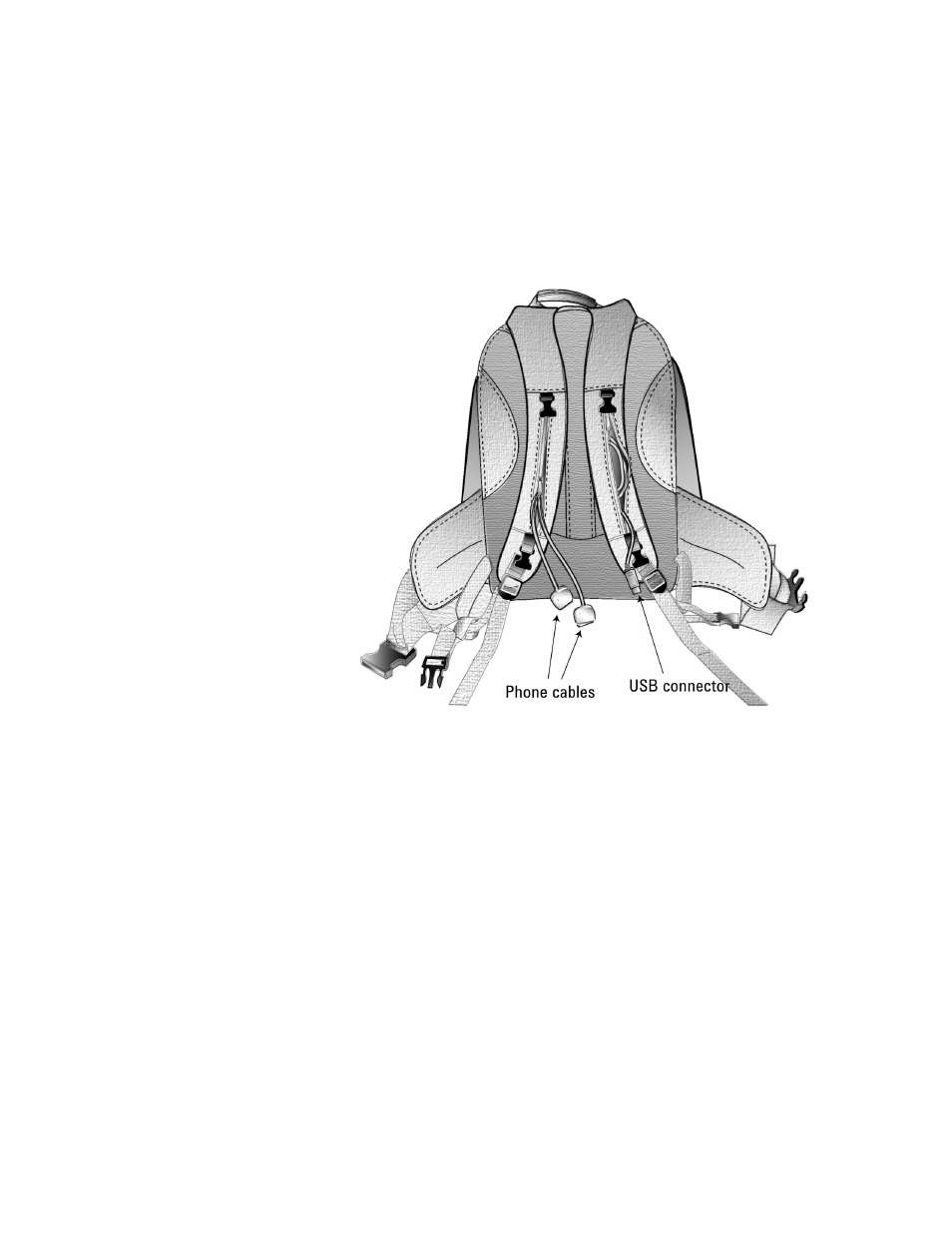

Figure 33
Routing cables through the shoulder straps
