52 Agilent E6474A User’s Guide
3 Set Up Your System
Method 1 - In-vehicle chassis
Connect using the in-vehicle chassis. Data and GPS information
is passed to your PC through the E6473B hub. See
Figure 22 on
page 52.

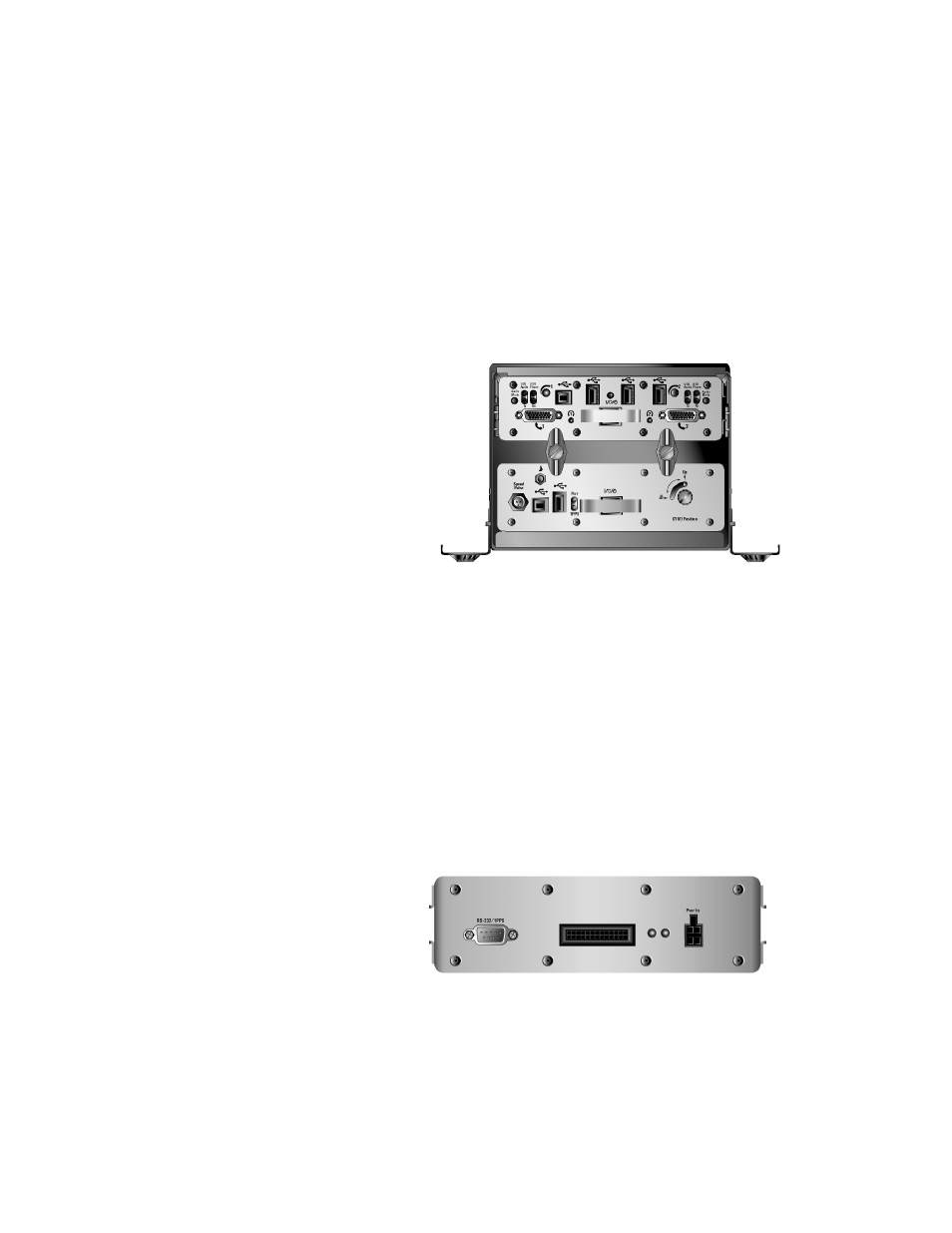

Figure 22 GPS/DR system fitted into the in-vehicle chassis (shown
with the E6473B hub)
Method 2 - USB connection
If the GPS/DR unit can not be fitted to the in-vehicle chassis it is
possible to use the downstream USB port. Power is provided
from the power socket at the back of the unit (power cable
E6473-60004).
Method 3 - Serial connection
You can use the serial port on the back of the GPS/DR unit
(refer to
Figure 23 ). Connect this port to the serial port on your
PC. The GPS/DR serial port overrides the USB port.
Figure 23 Serial port on GPS/DR unit
