46 Agilent E6474A User’s Guide
3 Set Up Your System
• 300 microsecond minimum pulse
Follow the manufacturer’s instructions for installing the pulse
trigger device. Connections to the receiver are shown in
Figure 17 .
• If you have two receivers, connect the pulse trigger cable
(E7450-60015) to the R X L OOP I N and R X L OOP O UT ports as
shown in Figure 17 .
• Or, if you have one receiver, connect the pulse trigger cable to
the R X L OOP I N and R X L OOP O UT ports of the same receiver.
• Connect the cable from the pulse trigger device to the BNC
connector of the pulse trigger cable. For software
configuration and calibration instructions, refer to the online
help. Search for “wheel pulse unit setup” to locate the
information.

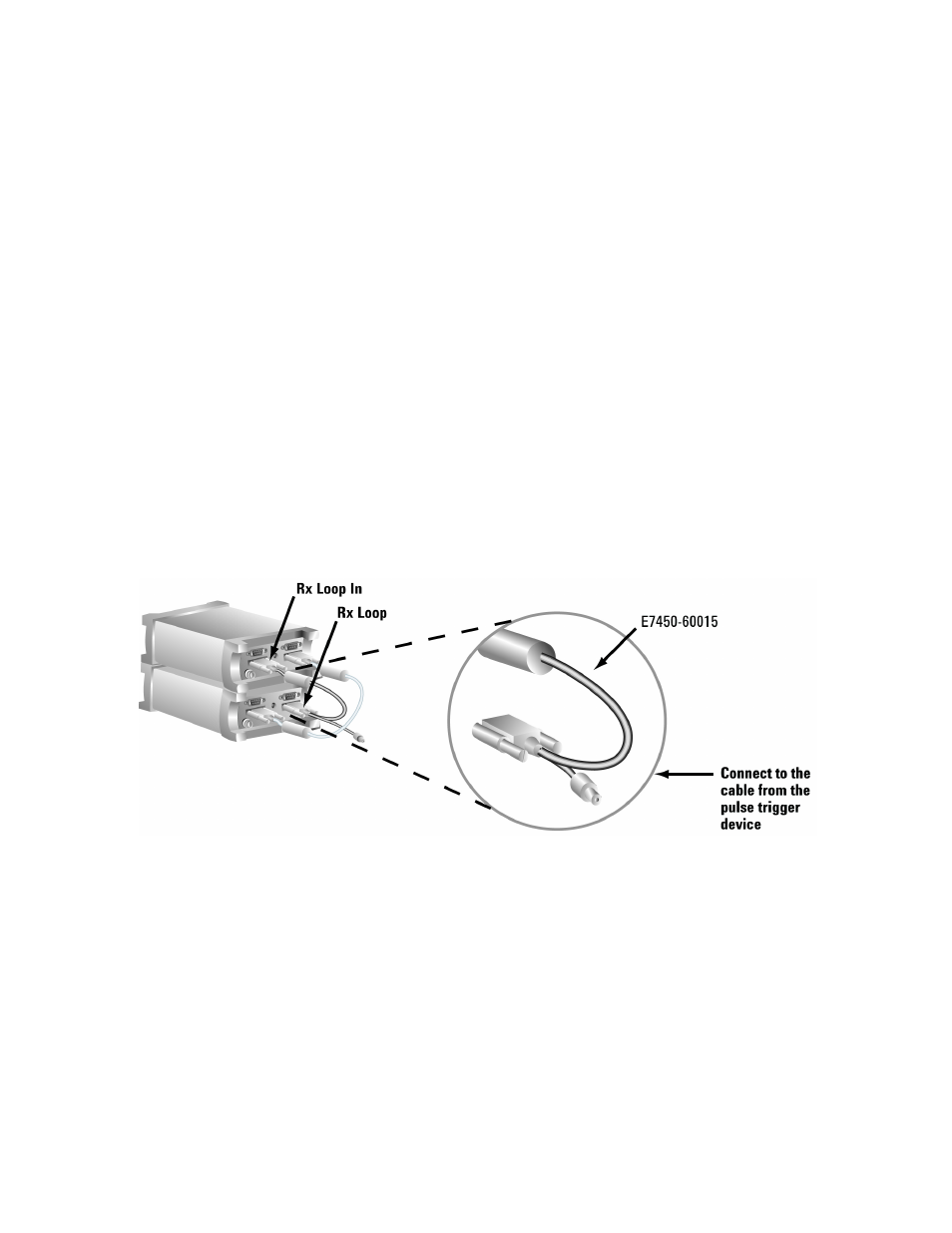

Figure 17 Connecting the pulse trigger cable
