30 Agilent E6474A User’s Guide
3 Set Up Your System

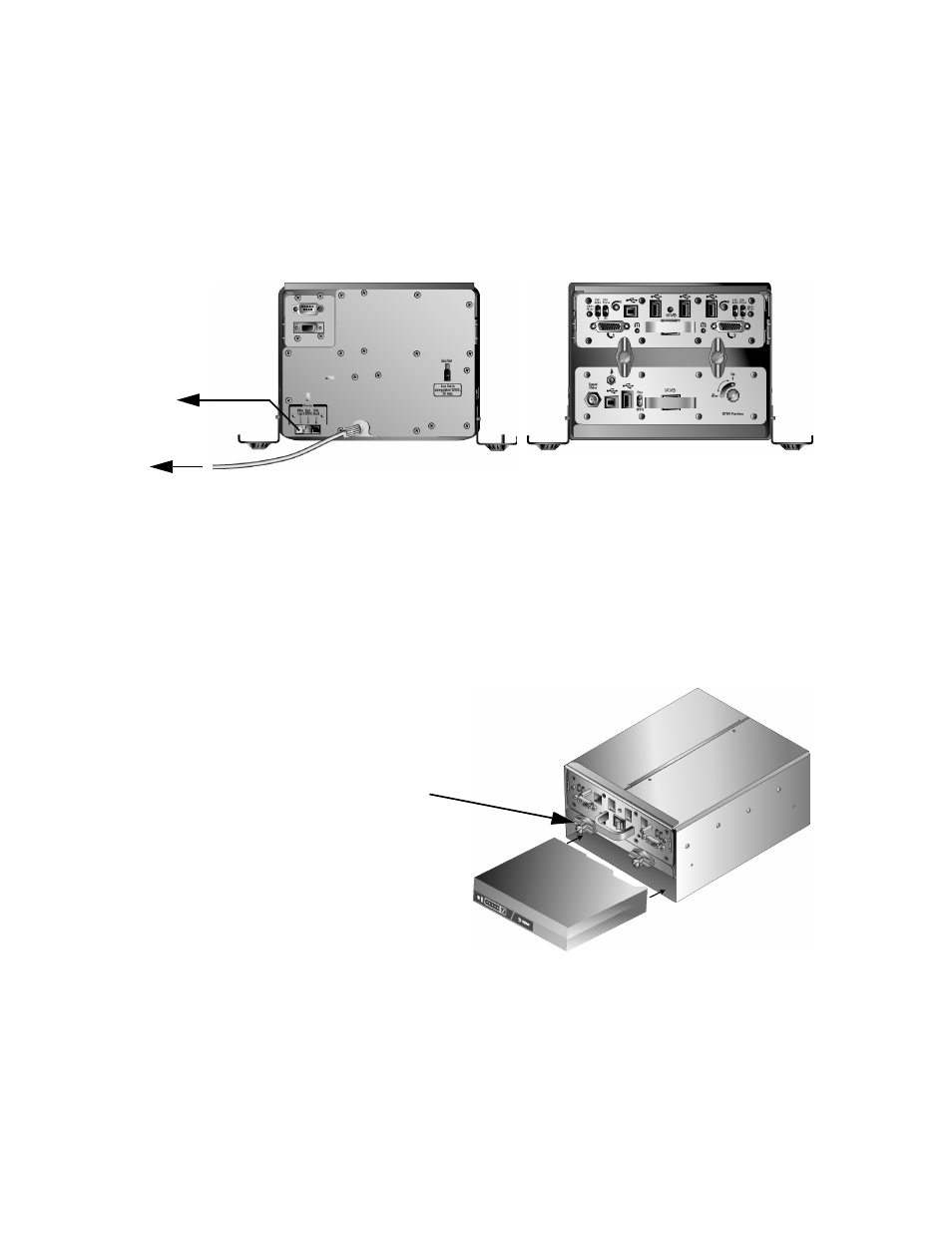

Figure 4 E6473B hub inside in-vehicle chassis
Power the E6473B hub from a battery
The E6473B hub can be used for indoor measurement systems
and is powered using an Agilent battery (E6473-60008). Refer to
Figure 5 .
Figure 5 Inserting the battery into the chassis with the E6473B hub.
Power ground cable to vehicle
Power to vehicle
ignition system
Front view of hub Rear view of hub
Locking knobs:
After inserting the battery
and hub, the knobs should
be turned vertical and the
screws tightened to lock
in place.
Battery
