Set Up Your System
3
Agilent E6474A User’s Guide
29
Figure 3
Power E6473B hub directly from lighter socket
Power the E6473B hub using the in-vehicle chassis
The E6473B in-vehicle chassis has a built-in power socket which
the E6473B hub plugs into. The chassis allows connection to
your car ignition system. Refer to
on page 174 for more information about connecting
the E6473B hub to your vehicle ignition system.
below

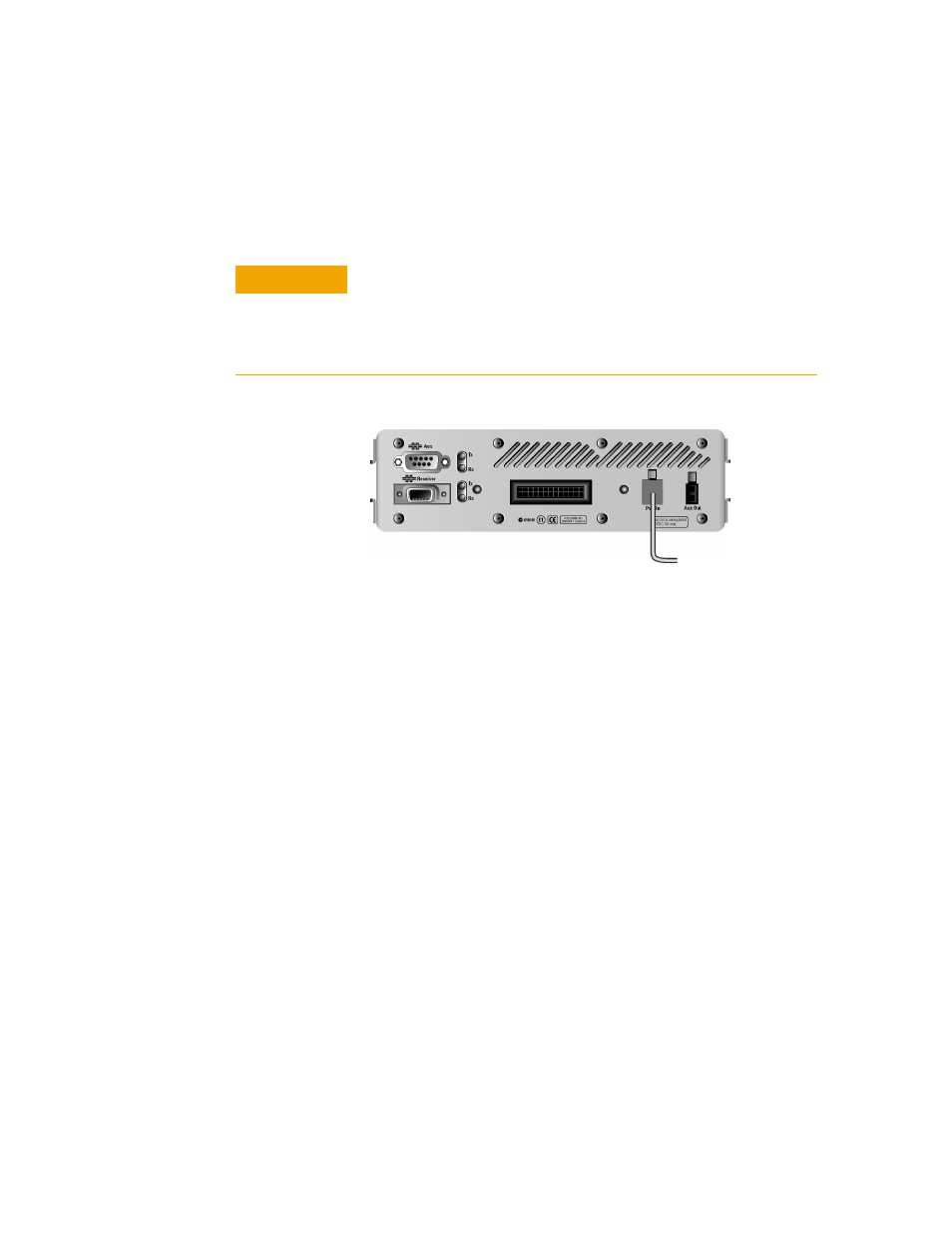

shows the E6473B hub fitted into the in-vehicle chassis (shown
with the E6473B GPS/DR unit) and the in-vehicle power
connections.
CAUTION
Using the in-vehicle lighter socket to power the E6473B hub may cause
problems if more than one device is attached to the hub.
It is recommended that the E6473B hub is powered using the in-vehicle
ignition system. Refer to
“Permanent In-Vehicle Hardware Installation"
to vehicle lighter
socket (E6473-60004)
