Page 134
134
Agilent E6474A User’s Guide
B
Connection Panels and LED Indicators
E6473B High Speed Direct Connect Hub
Table 8
Direct Connect Hub front panel descriptions (see

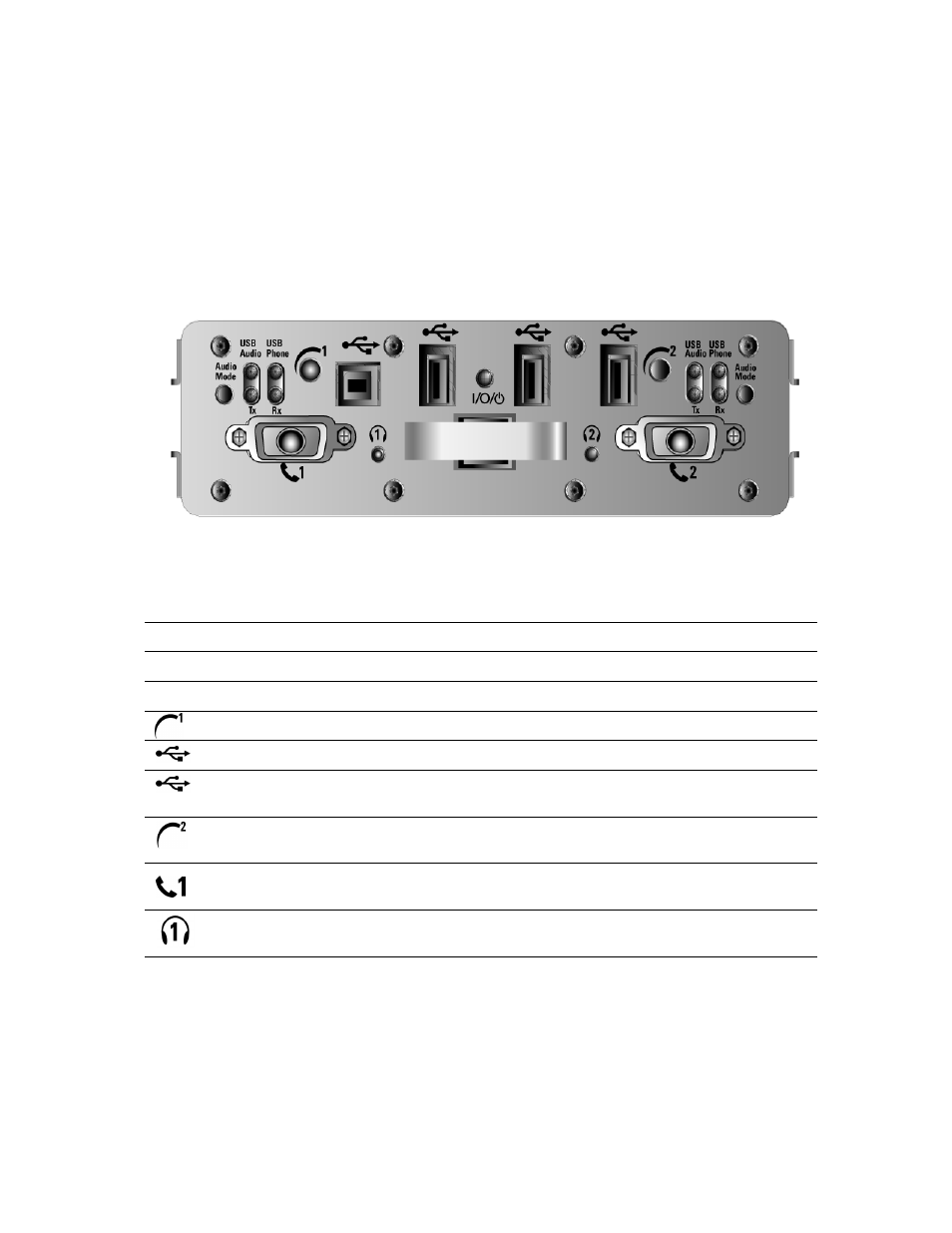

Figure 60
E6473B High Speed Direct Connect Hub front panel
Reference
Name
Description or Cable Connection
Rx
Receive Data LED (Phone 1, 2)
Flashes when phone data is received
Tx
Transmit Data LED (Phone 1, 2)
Flashes when phone data is transmitted
Phone 1 audio level
Controls headset 1 audio volume
x 1
USB Computer port
Connect to USB Data Cable
x 3
USB Out port
Plug in the software license key, or connect cable to next
E6473B
Phone 2 audio level
Controls headset 2 audio volume
Phone 1 port
Connect to phone interface cable
Headset for Phone 1
Connect to headset
