5. INSTALLATION INSTRUCTIONS
Pre-Installation Survey
It is recommended that a site survey be performed to determine the mounting location based on
the following:
 Physical strength of mounting areas should meet or exceed the holding force of the
iMXDa/iEXDa.
 Routing of the lock wiring for protection from damage due to intrusion or vandalism.
 Door clearance should be considered to prevent a safety hazard.
Because of the lock system’s internal sensing, alignment between the lock face and strike are
vital for proper operation.
Additional brackets may be required for proper installation. (See Section 7 - Specialized
Mounting Brackets).
Mounting Configuration
Figure 2 illustrates a common installation on out-swing doors. The lock housing mounts to the
header near the corner opposite the door hinge side. The unit may be mounted horizontally or
vertically.

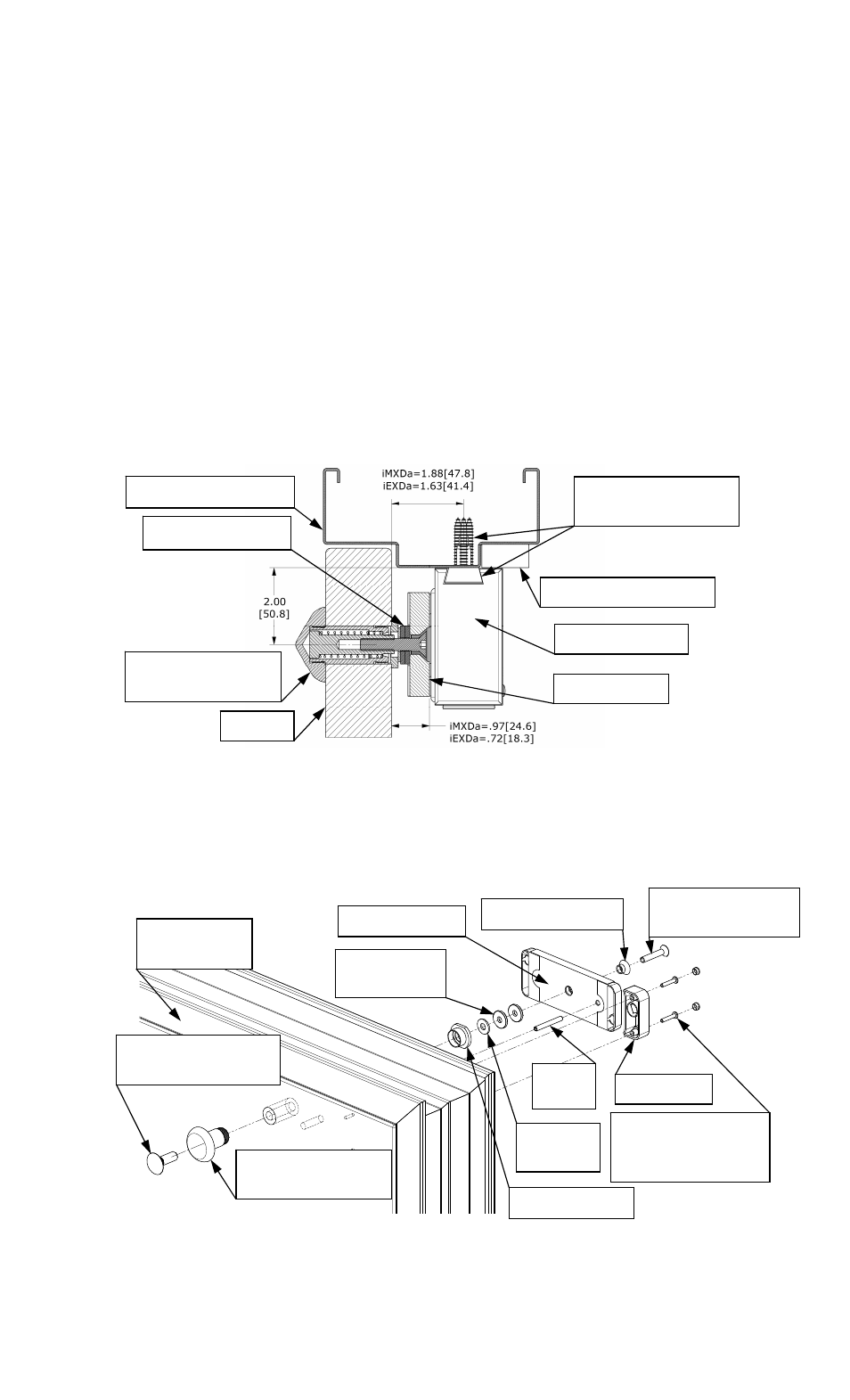

Figure 2
Typical Section of Installation (iMXDa shown)
5.1. PHYSICAL INSTALLATION
The strike plate should be mounted prior to the lock housing. Figure 3 illustrates typical strike
mounting for the iMXDa. (For the iEXDa the SB-MXD Sex Bolt, cap, and steel washer shown
here are replaced with a standard sex bolt).
Figure 3
Strike Plate
1-3 Rubber
Washers
Roll
Pin
Strike Mounting
Screw
Strike Bushing
Door Frame
& Stop
Sex Bolt & Strike
Mounting Screw
Door Frame & Stop
Rubber Washers
Door
Strike Plate
Mounting Bracket
& Hardware
Lock Housing
SB-MXD Sex Bolt
(iMXDa)
Steel
Washer
Actuator
2X Actuator
Mounting Screws
& Dress Plugs
SB-MXD Cap
SFP (Not Included)
Standard Sex Bolt
(iEXDa)
