Securitron iMXDa_iEXDa INSTALLATION User Manual
Page 12
P/N 500-22175
Page 12
Rev. B, 04/11

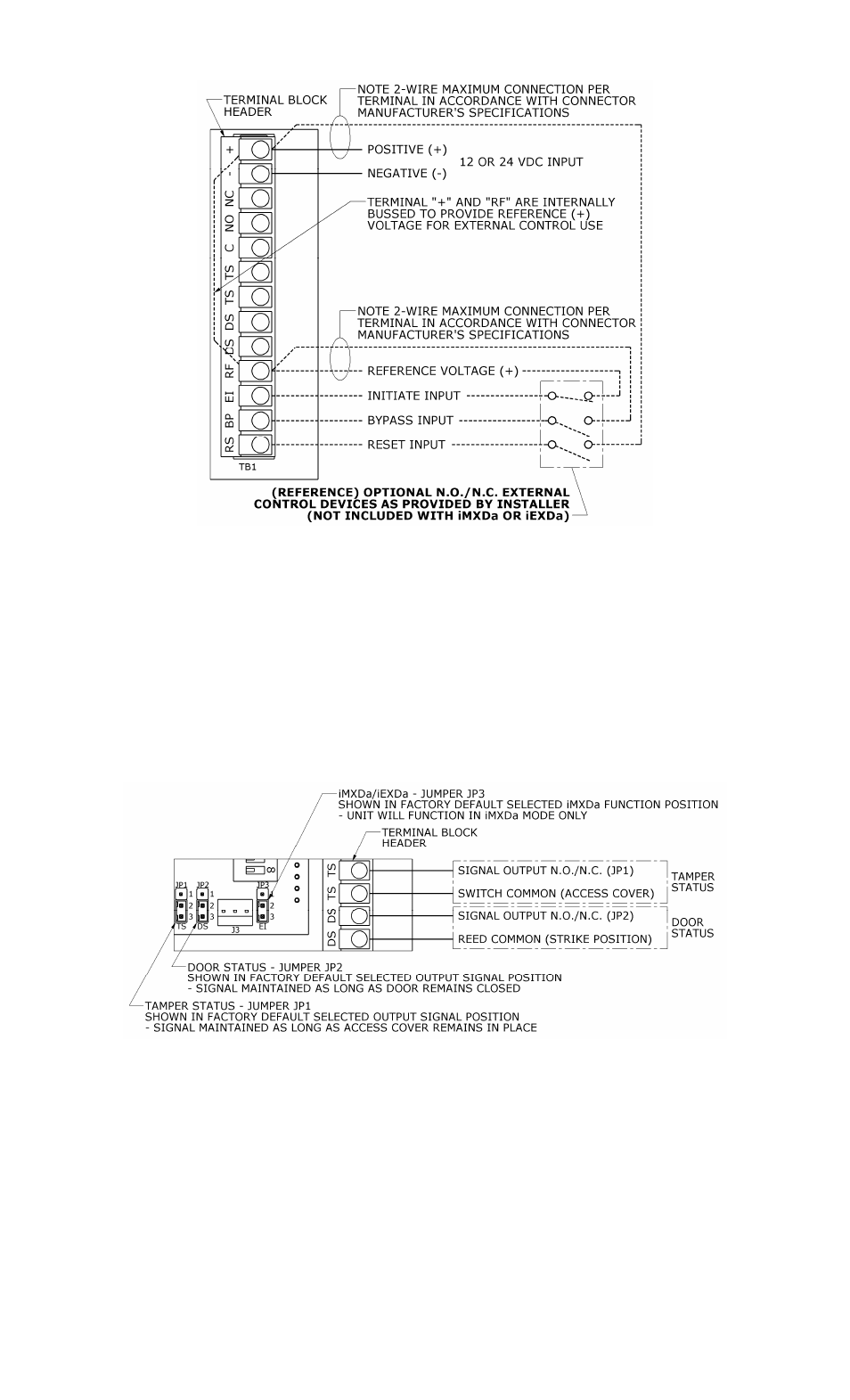

Figure 14
Optional External Control Connections
Tamper Status (JP1) and Door Status (JP2) wiring
The Tamper Status function can only be operated in units which are equipped with an XDAT-KIT.
This kit is sold separately and includes an alternate lock housing end cap and implements a
micro switch which supplies a signal when the front cover of the housing is accessed. See the
installation and operating instructions included with the kit for proper installation.
The tamper status and door status switches provide dry contact output at the terminal block
header. Output is field selectable via the jumpers shown in Figure 15. The factory default
jumper settings for both JP1 and JP2 are set for normally closed operation (pins 2 and 3). If
normally open operation is desired, change the jumper setting to pins 1 and 2.
Figure 15
Selectable Output Jumper Positions
