INTEGRATED EXIT DELAY SYSTEM MODEL iMXDa AND iEXDa
INSTALLATION AND OPERATING INSTRUCTIONS
1. INTRODUCTION
The Securitron iMXDa represents the state of the art in electromagnetic locking with integrated
exit delay. This system incorporates Securitron’s BondSTAT and DPS (Door Position Sensor)
Magnalock technology along with intelligent microprocessor based, alarm options and a trainable
door movement feature. The unit is auto sensing dual voltage (12/24 VDC) and provides a
variety of easily selectable operating functions. Mounting has also been simplified by the
introduction of an interlocking mounting bracket. The iEXDa is a similar product featuring
external initiate using a UL listed egress device. This manual is intended to provide the
installation/mounting configurations, electrical requirements, functional options and selectable
settings required to successfully install an iMXDa or iEXDa integrated exit delay door system.
2. SPECIFICATIONS
MODEL iMXDa/iEXDa
Holding Force
1200 Lbs [544 kg]
Dimensions: Length
12.5" [318mm]
Height
3.63" [92mm]
Depth
2" [51mm]
Dual Voltage
12/24 Volts DC
Current: @ 12 VDC
370mA
@ 24 VDC
270mA
Capacitance: @ 12 VDC
32 mF
@ 24 VDC
32 mF
Door Movement (Gap)
Sensing Range
1/8” [3.2mm] to
1” [25.4mm]
External Alarm Rating
Voltage: 30 VDC (Maximum)
Current: 1 Amp (Maximum)
DPS (DS) Rating
Voltage: 30 VDC (Maximum)
Current: 125 mA (Maximum)
Tamper (TS) Rating
Voltage: 30 VDC (Maximum)
Current: 2 Amps (Maximum)
3. PRODUCT OVERVIEW
Along with the installation and operating
instruction manual, the quick start guide, and
the mounting templates, the product package
should include:

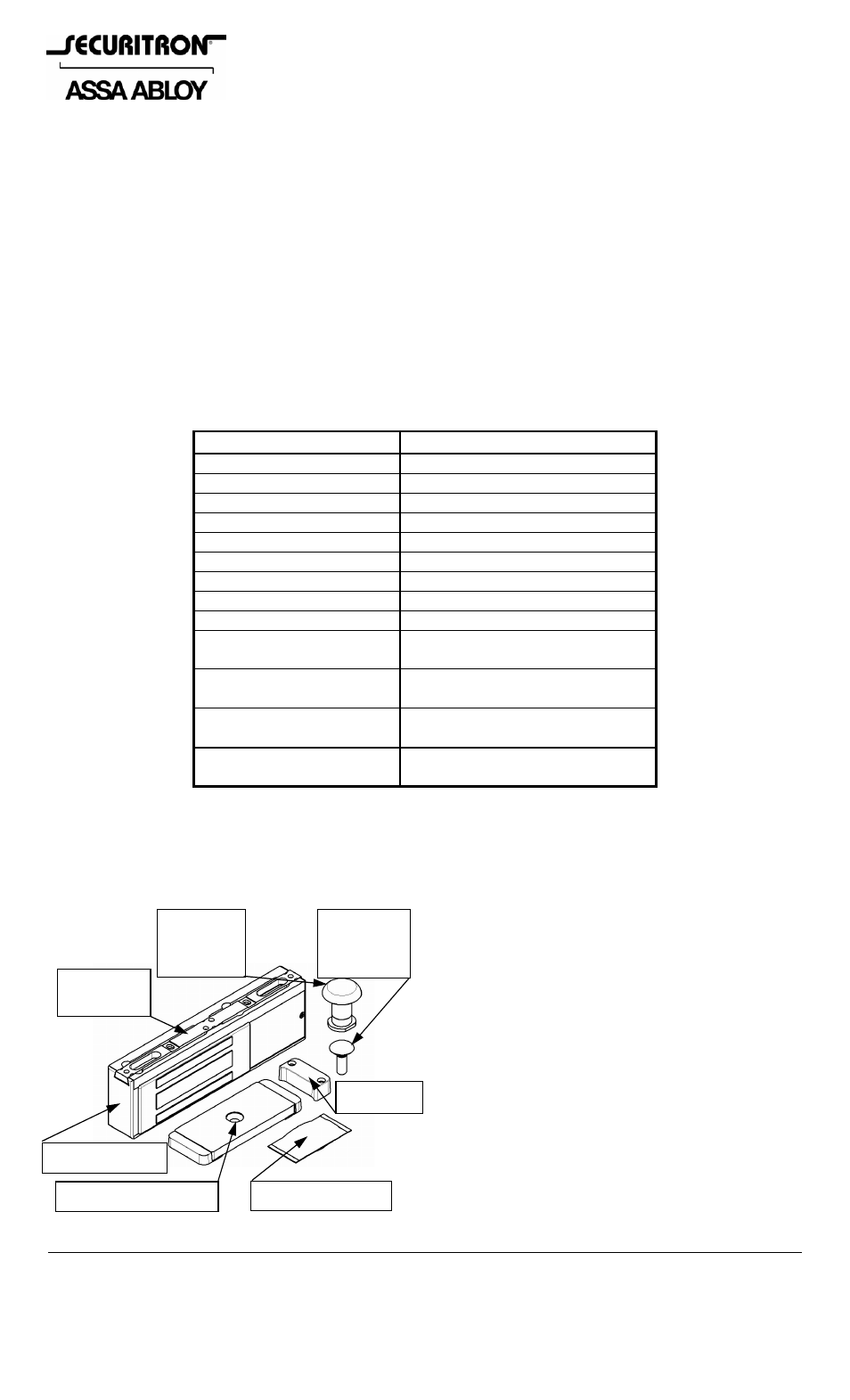

Figure 1
4. RECOMMENDED TOOLS
Hammer
Center Punch
Power Drill
Drill bits: 9/64”, 3/16”, 7/32”, 3/8”, and
1/2” (iEXDa) or 1” (iMXDa) Diameters
Wrenches: 7/16” open end (or adjustable),
1/2” box/open end (or adjustable), 1-1/4”
open end (or 12” adjustable), 3/16” Hex
Key (Allen) and 3/32” Hex Key (Allen)
Pliers, vise grip
Screwdrivers: #1, #2 and #3 Phillips
1/8” Flat Blade
Masking Tape
Fish Tape or Lead Wire
Wire Strippers/Cutter
Multimeter
SB-MXD
Sex Bolt
(iMXDa)
Hardware Pack
Actuator
Standard
Sex Bolt
(iEXDa)
Mounting
Bracket
(DPS) Strike Plate
Lock Housing
