Page 33

GREEN

WHITE

BLACK

RED

SWITCH

0.875 in.

7.750 in.

FLOAT

1.310 in.

1/2 NPT

CONNECTION

TO CONTROL PANEL

RISER CAP

RISER

RESERVOIR

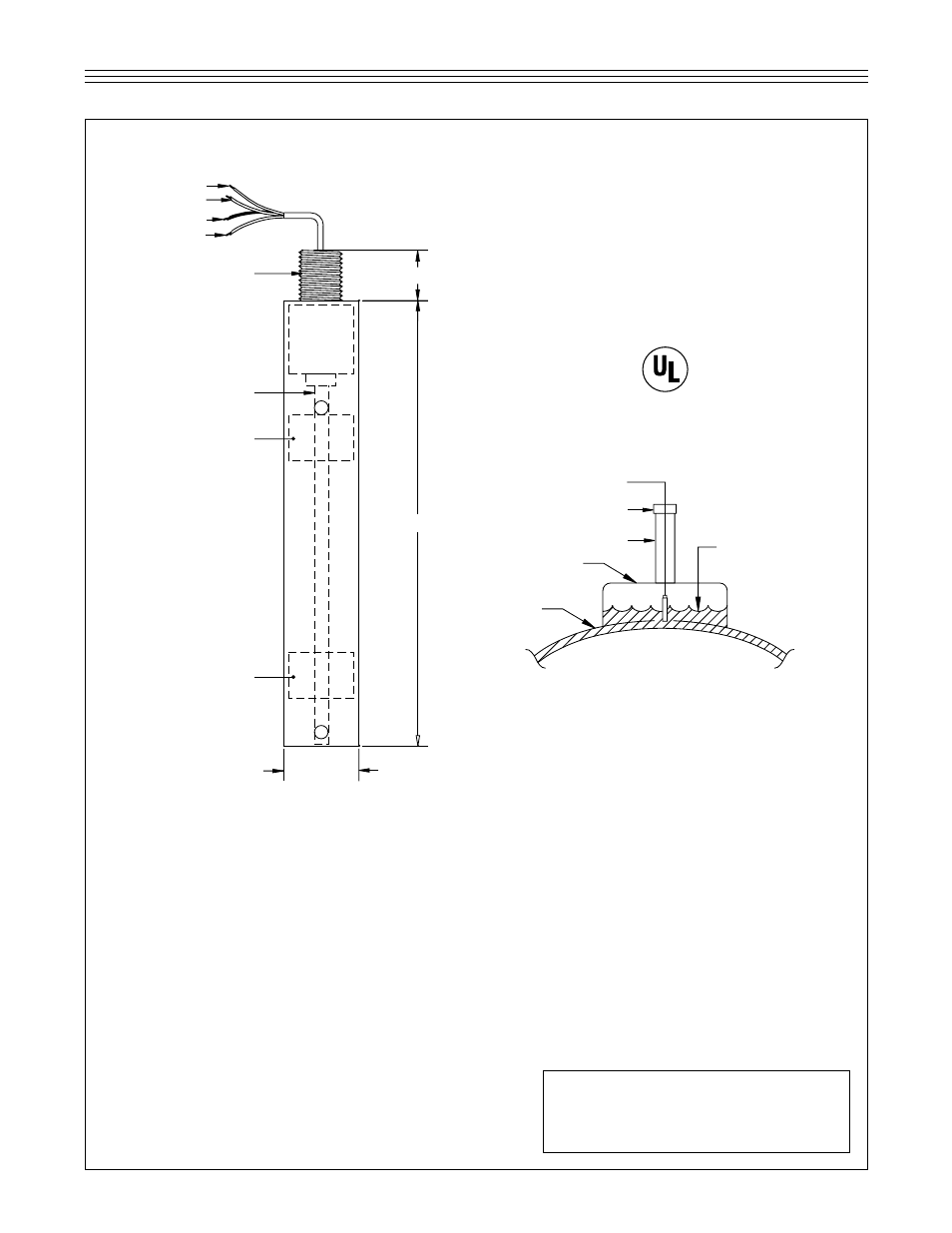

TYPICAL LS-30 POSITIONING

TANK

WALL

INTERSTICE
LIQUID

LISTED 48RO

INSTALLATION INSTRUCTIONS LS-30
FOR DOUBLE WALL FIBERGLASS TANKS WITH INTEGRAL RESERVOIR

Lower sensor on cable until half* of sensor is submerged in liquid. Pull remaining cable into junction
box and cut off excess cable length. Secure cable to prevent slipping into tank annulus. Connect leads
to wire from tank monitor terminal strip.

OTHER APPLICATIONS

High/High, Low/Low, or High/Low level sensor.

NOTE:

Bottom float, Red and Black wires. Top float, White and Green wires. For single alarm return

White and Black wires to panel, jump Green and Red. For dual alarm return all four wires to panel.
Reference Ronan Drawing Number X76B542.

TANK LEAK SENSOR

MODEL LS-30

The sensor position is dependent upon the product level. If
the tank is 3/4 full the sensor should be submerged 3/4 of its
range. If the tank is 1/4 full the sensor should be submerged
1/4 of its range. The interstice liquid should always be below
the reservoir riser.
