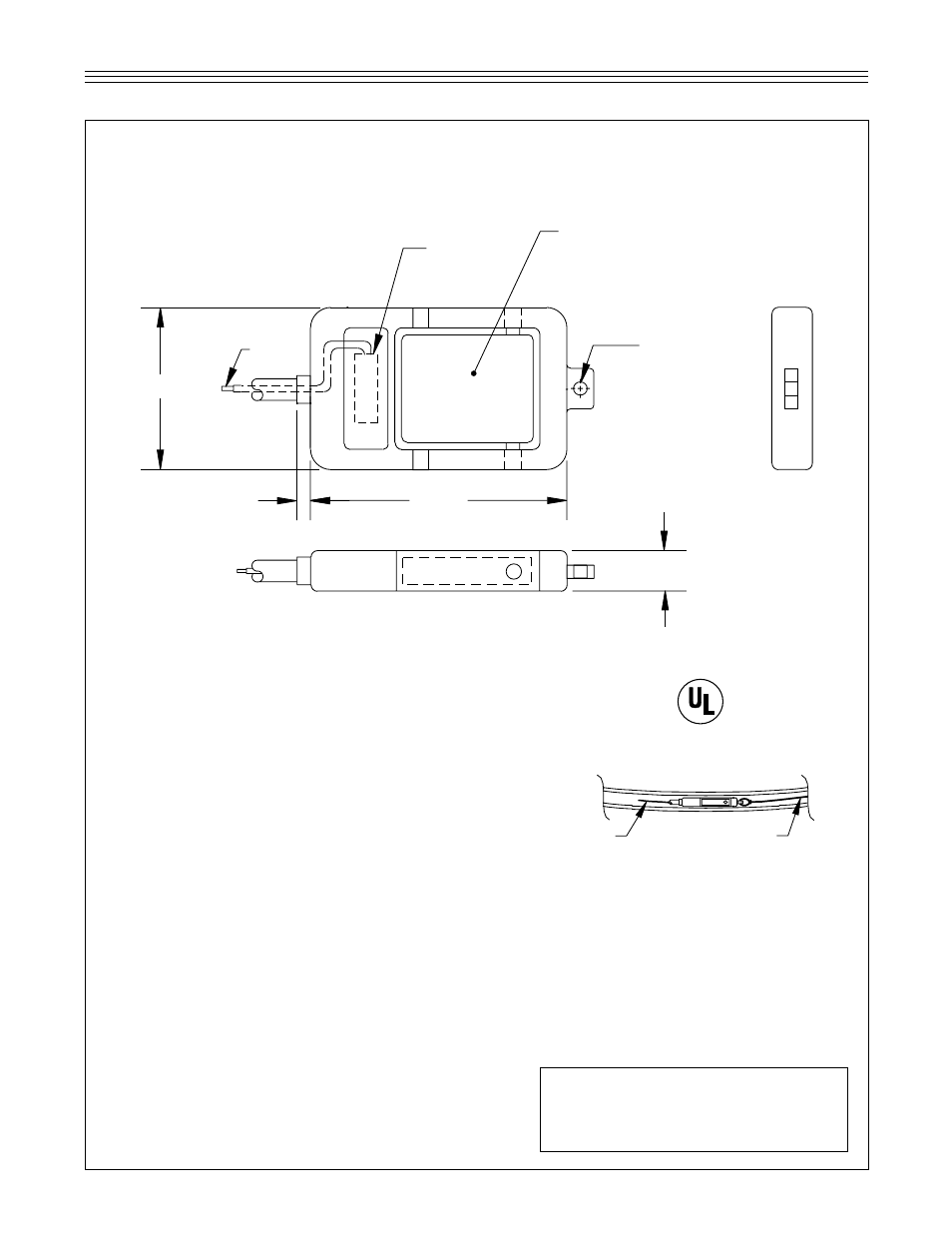

TANK LEAK SENSOR

MODEL LS-7 AND LS-7S

WIRE

INSTALLATION

CABLE

1.500 in.

0.125 in.

2.376 in.

0.375 in.

0.125 in.

FLOAT

INTERNAL
SWITCH

TYPICAL INSTALLATION

IN DOUBLE WALL TANK

LISTED 48RO

INSTALLATION INSTRUCTIONS
FOR FIBERGLASS TANKS

1. Insert fish tape through annulus space.

2. Attach pull-string to LS-7 (LS-7s).

3. Tag signal cable and pull string each 18 feet from LS-7

(LS-7s). Typical for 8 foot diameter tank.

4. Attach fish tape to pull string.

5. Pull LS-7 (LS-7s) through tank annulus.

6. Match tag mark on signal cable and pull string.

7. LS-7 (LS-7s) is now positioned at the tank bottom,

centerline.

NOTE:

Reference Ronan Engineering

Drawing Number X76B546
