 Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the
way to provide metal to metal contact. Mounting rails may be installed on spray in liners.
 Use only bolts, nuts, and washers supplied to install this kit. All nuts & bolts are Grade 8 unless
otherwise specified.
 These instructions are guidelines only, actual installation is the responsibility of the installer
and the owner. Always measure truck and trailer before installing fifth wheel hitch to be sure
that there is clearance at the cab and at the bumper to allow for turns.
Installation Instructions
CUSTOM QUICK INSTALL MOUNTING KIT
1999 To 2010 Ford Super Duty F-250/F-350 & 2008 To 2010 F-450
Part Numbers:
56005
Installation Instructions
1. Lower and remove spare tire if extra room is needed for the installation.
2. On 2005 to 2010 Gas Engine Vehicles Only. The vapor tube running along the inside of the driver’s side frame rail must be
relocated prior to installing the driver’s side bracket. See Figure 3a. Remove the flange nut from the outside of the frame and
keep for later use. See Figure 3b. Rotate the tubes up and out of the way. Install the L-bracket (6) with 1/4” hardware (3)(4)(5),
as shown in Figure 3c. Tighten the L-bracket (6) to the frame, but leave the tube holder loose to aid bracket installation.
3. On 1999 To 2004 Vehicles Only. Temporarily remove the emergency brake cable hangers from the frame of the truck and keep
the hardware. See Figure 4a. Also disconnect the bed safety cable and re-install in an available nearby hole once frame bracket is
installed. See Figure 4c.

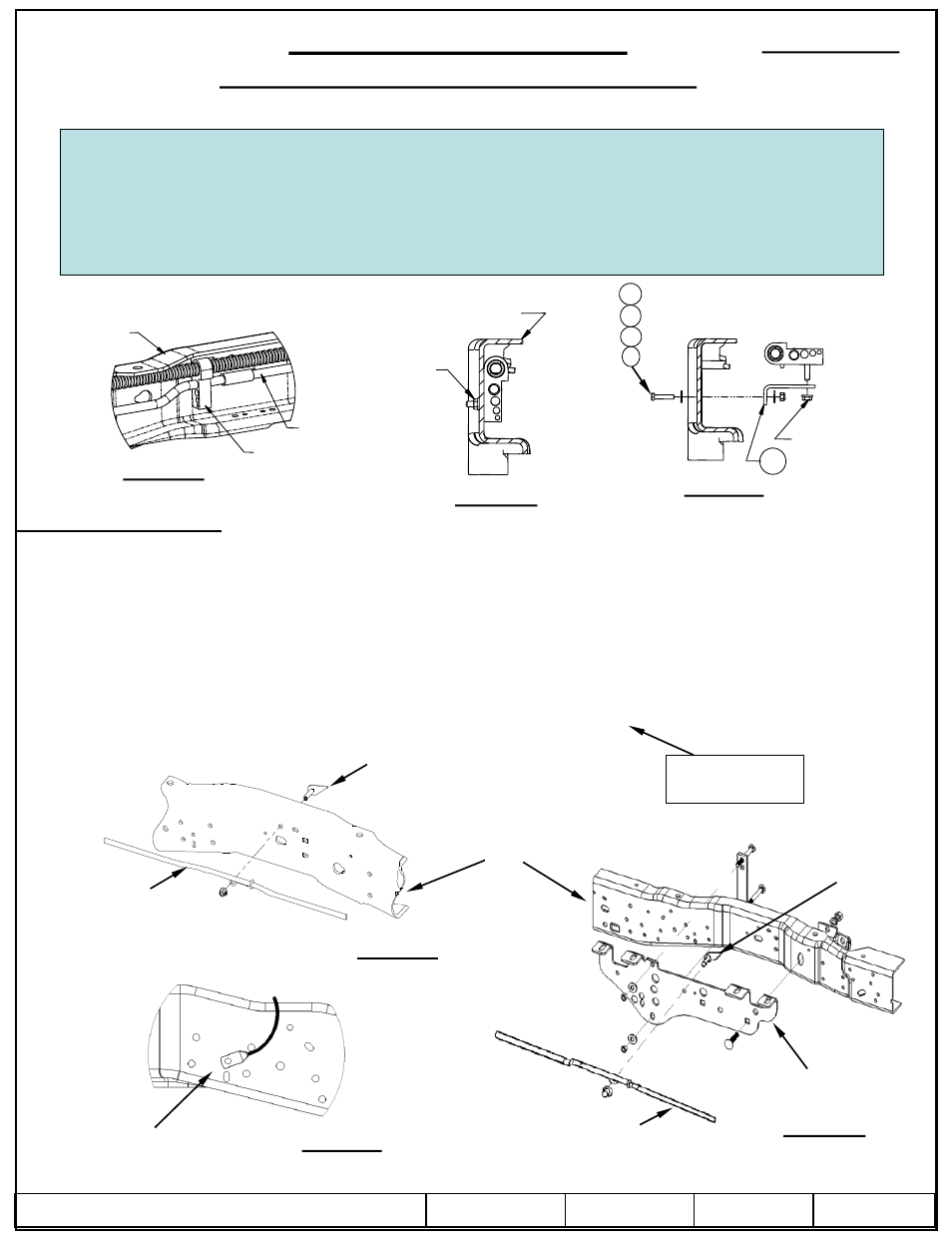

Figure 4a
Driver’s side frame
Brake line
Retain hardware
Figure 3c
Existing
flange nut
Driver’s side
frame rail
Vapor
tube
Tube
holder
Figure 3a
Inside of frame rail Figure 3b
Driver’s side
frame rail
Existing
flange nut
4
3
5
3
6
Figure 4b
Driver’s side frame
Figure 4c
Retain hardware
Brake line Bed Safety Cable
Driver’s side frame bracket
Vehicle Forward
Fig 4a,4b,4c
©2012 Cequent Performance Products, Inc. Sheet 2 of 5 56005N 2/16/2012 Rev. A
