Installation Instructions
REESE ® CUSTOM QUICK INSTALL MOUNTING KIT
FOR 30153 REESE ® RAILS ONLY
2004 - Current FORD F-150
Part Number:
56006
WARNING:
Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION
REESE ® Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.
10 BOLT INSTALLATION
All Fasteners Typical Both Sides
All of the fasteners listed to the left are supplied with this kit, all other
mentioned fasteners are supplied with part number 30153.
1
Equipment Required:
Fastener Kit: 56006F
Wrenches: 3/4”
Drill Bits: 1/8”, 9/16” & 3/4”
Other Tools: Center Punch, Measuring Tape

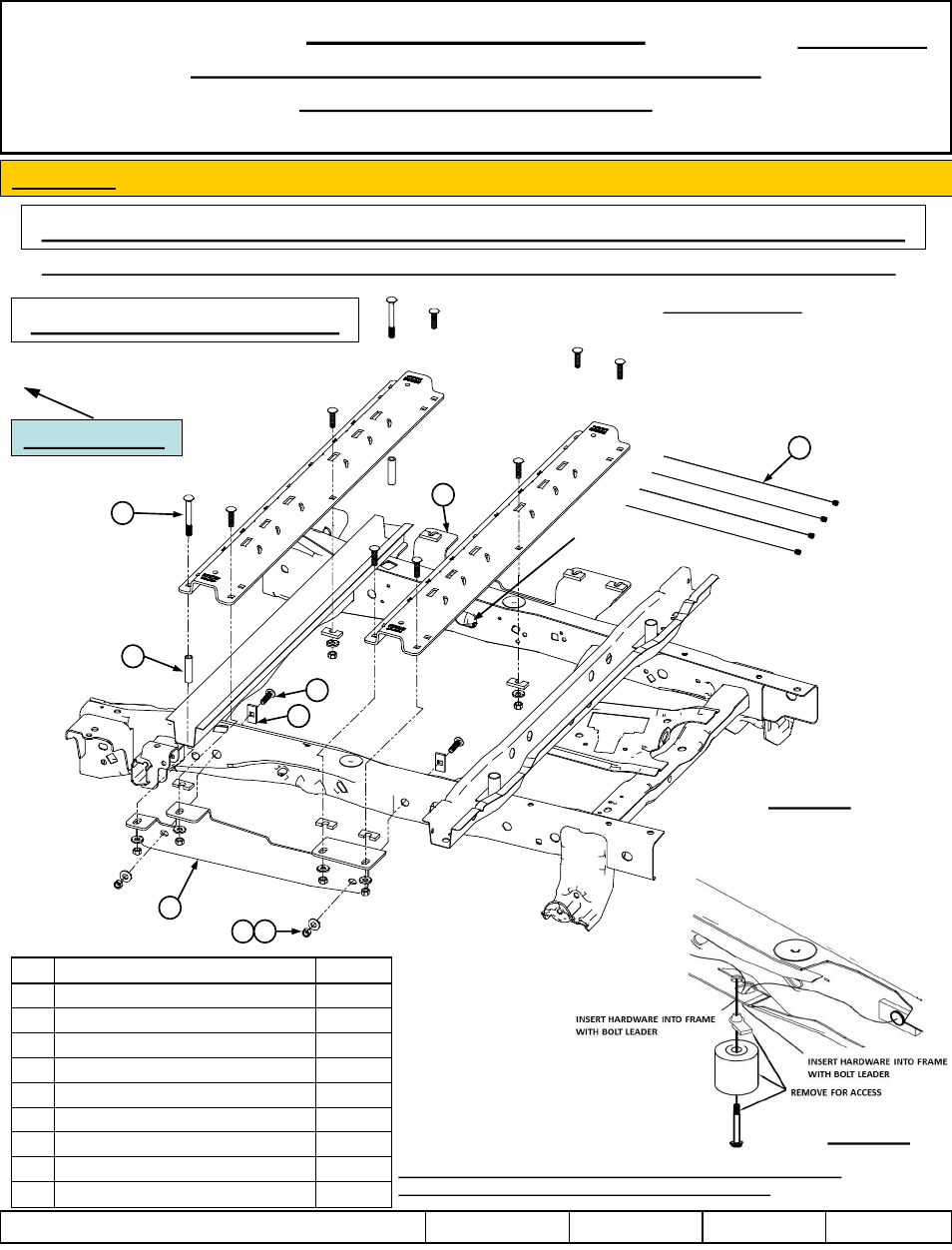

Figure 2
ITEM DESCRIPTION QUANTITY
1 WASHER CONICAL 1/2 4
2 BOLT,CARRIAGE 1/2-13 X 1.5 Grade 8 4
3 BOLT CAR 1/2-13 X 4.50 Grade 8 2
4 NUT, HEX 1/2-13 Grade 8 4
5 BLOCK .250 x 1.00 x 2.00 4
6 WIRE, PULL (1/2 - 13) 4
7 COLLAR 2.937" LONG 2
8 DRIVER SIDE FRAME BRACKET 1
9 PASSENGER SIDE FRAM BRACKET 1
3
2
1 4
7
6
5
Access hole on the
inside of frame
Figure 1
9
8
