Rev. B 56011N 7/10/13 3

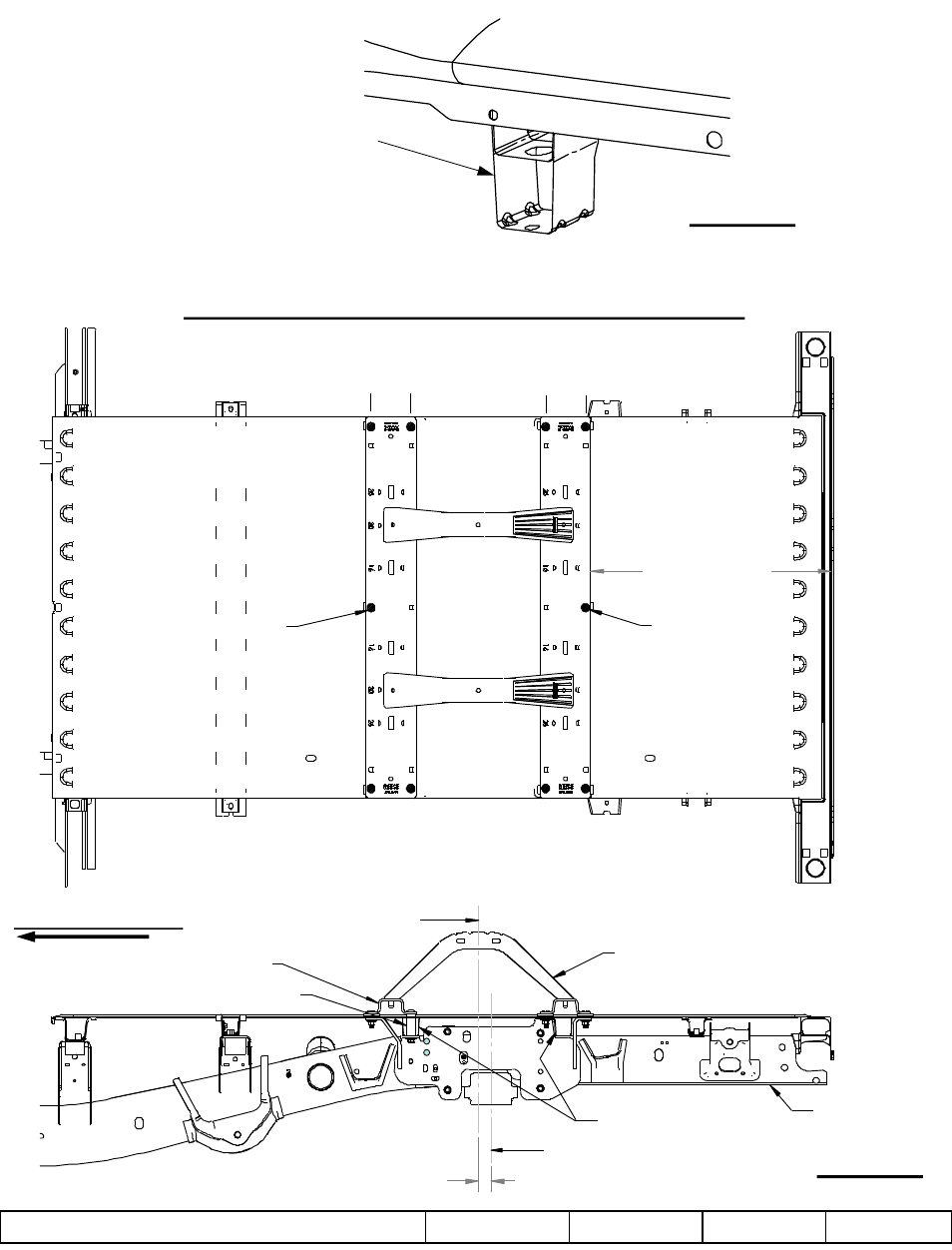

6.5’ truck boxes only - cut
off the extension attached
to the truck box support
beams.
Figure 2
FRONT OF VEHICLE
Figure 3
DIMENSIONS SPECIFIC FOR RAIL KIT 30153
APPROX. 1 9/16" LONG BED
APPROX. 1 7/16" SHORT BED
TRUCK BED SUPPORTS
MOUNTING RAIL
FRAME
BUSHING
CL OF AXLE
HITCH SUPPORT / SLIDER /
GOOSE (HITCH SUPPORT SHOWN)
CL OF HITCH
R
O
W
1
R
O
W
2
R
O
W
4
CENTER BOLT
R
O
W
3
CENTER BOLT
30 1/8" LONG BED
28 1/8" SHORT BED
