25. Use the supplied screws to install the plastic covers by sliding it around the slider handle through the hole in the
plastic cover.
See Figures 1 & 29 . The plastic cover with the larger label should be placed on the driver’s side of
the truck. Install the lock pin and nylon lanyard using the screws provided. Install the slider handle grip onto the
slider handle.
See Figures 29 . The lock pin is a device that keeps the “Jaw” mechanism from opening.
Therefore it must be installed and used anytime the hitch is in use, see Figure 30 , except when the sliding
mechanisms needs to be in operation for maneuvering the hitch to and from the maneuvering position.
See Figure 31 .

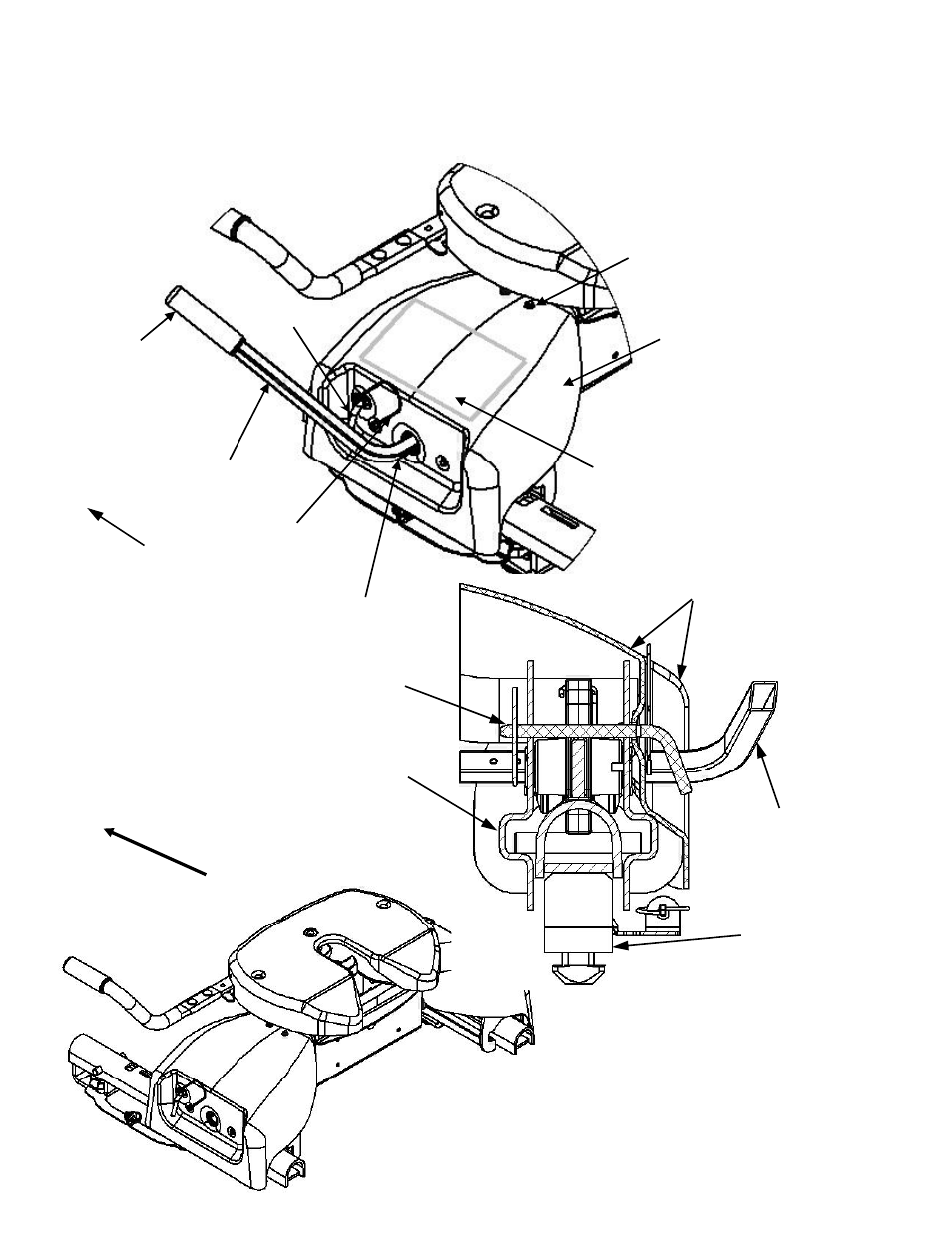

Screws
L k Pi
Figure 29
Plastic Cover
Lock Pin
Driver’s Side Shown
Slider Handle
Grip
Nylon Lanyard
Front of Truck
Plastic
Large Label Slider Handle
Hole in Plastic Cover
Lock Pin
Slider Assembly Slider Assembly
Slider Handle
Front of Truck
Figure 30
Cut-Away View Shown
Slider Rail
Figure 31
30144N– 05JUL10A PCN13292 ©2010 CEQUENT PERFORMANCE PRODUCTS, INC. Litho in USA 16
For Kit 30144
Figure 31
Hitch in Maneuvering Position
