WARNING:

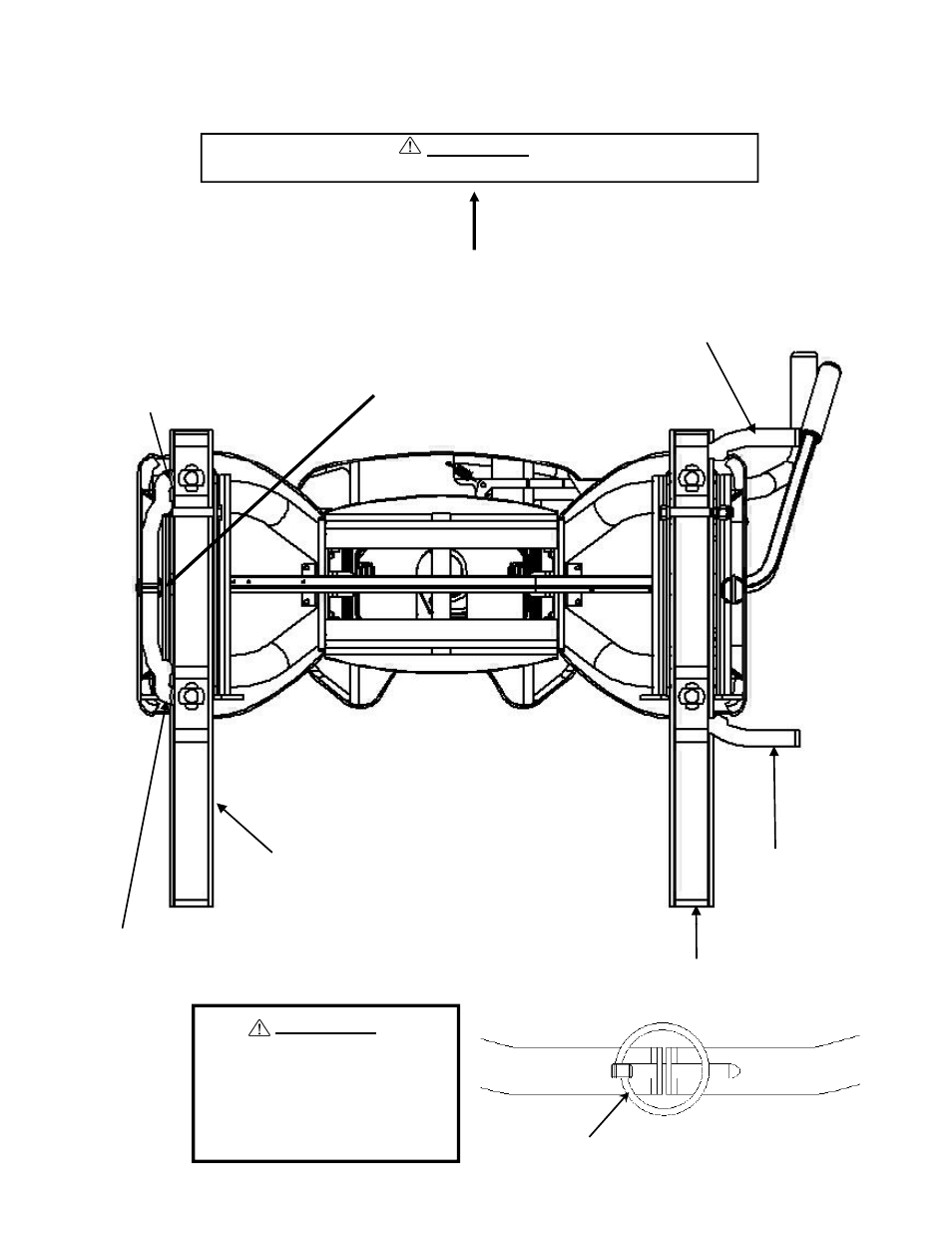

12. When properly installed, all the Anchor Handles should be parallel to the Slider Rail Assembly when locked. The
Anchor Handles are Unlocked when rotated 90 degrees (
perpendicular to the Slider Rail Assembly ). See Figure
19 . The stamped wording on the handles should always face upward.
Failure to properly install handles could result in tow vehicle damage.
Locked: Anchor Handles
are parallel to the slider rail. Unlocked: Anchor Handles are
90 degrees to the slider rail.
Front of Truck
Anchor Handle “A” Anchor Handle A
Unlocked Position
Anchor Handle “B”
Locked Position
Lynch Pin through
holes in Anchor Handles
See sketch below
Figure 19
Anchor Handle “B”
Unlocked Position
Slider Rail Assembly
g
Bottom of Hitch Shown
Anchor Handle “A”
Locked Position
Slider Rail Assembly
WARNING:
To prevent serious damage to
truck and/or persons both Lynch
Pi
M t b i t ll d th h
30144N– 05JUL10A PCN13292 ©2010 CEQUENT PERFORMANCE PRODUCTS, INC. Litho in USA 11
For Kit 30144
Pins Must be installed through
the holes in the Anchor Handles
for the hitch to be properly
locked.
Install Lynch Pin through
holes in Anchor Handles to lock
