Teledyne LGA-3500 - Laser Gas Analysis system User Manual
Page 62
Operation Model
3500
Teledyne Analytical Instruments
48

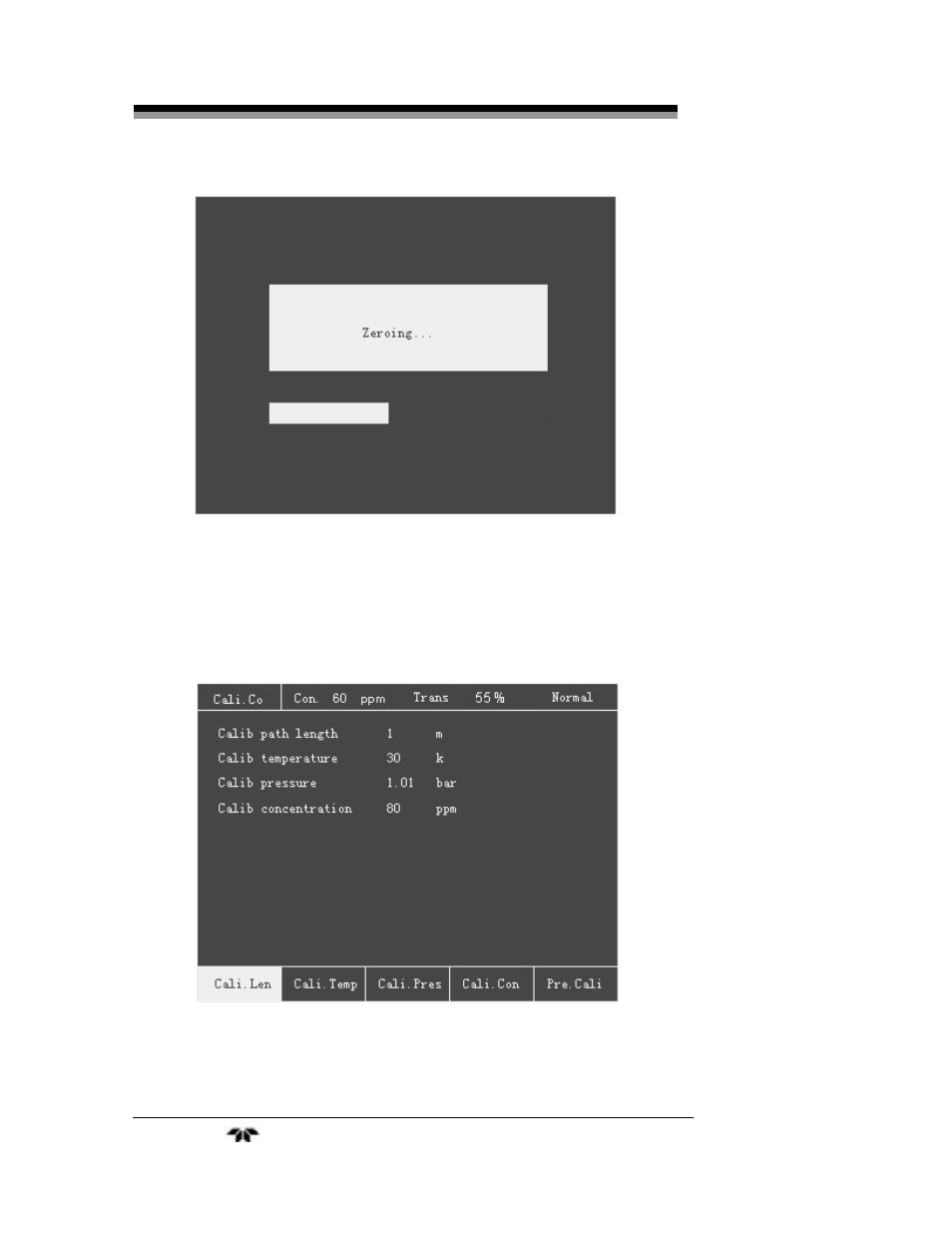

Figure 4.25 Zeroing menu
4.3.4.2
C
ALI
.
C
O
:
Figure 4.26 is the Cali.Co sub menu. On this menu, operators can
set calibration optical path length, temperature, pressure, concentration
parameters needed by the calibration system.
Figure 4.26 Calibration coefficient sub menu
