Operation Model 3500
Teledyne Analytical Instruments 40

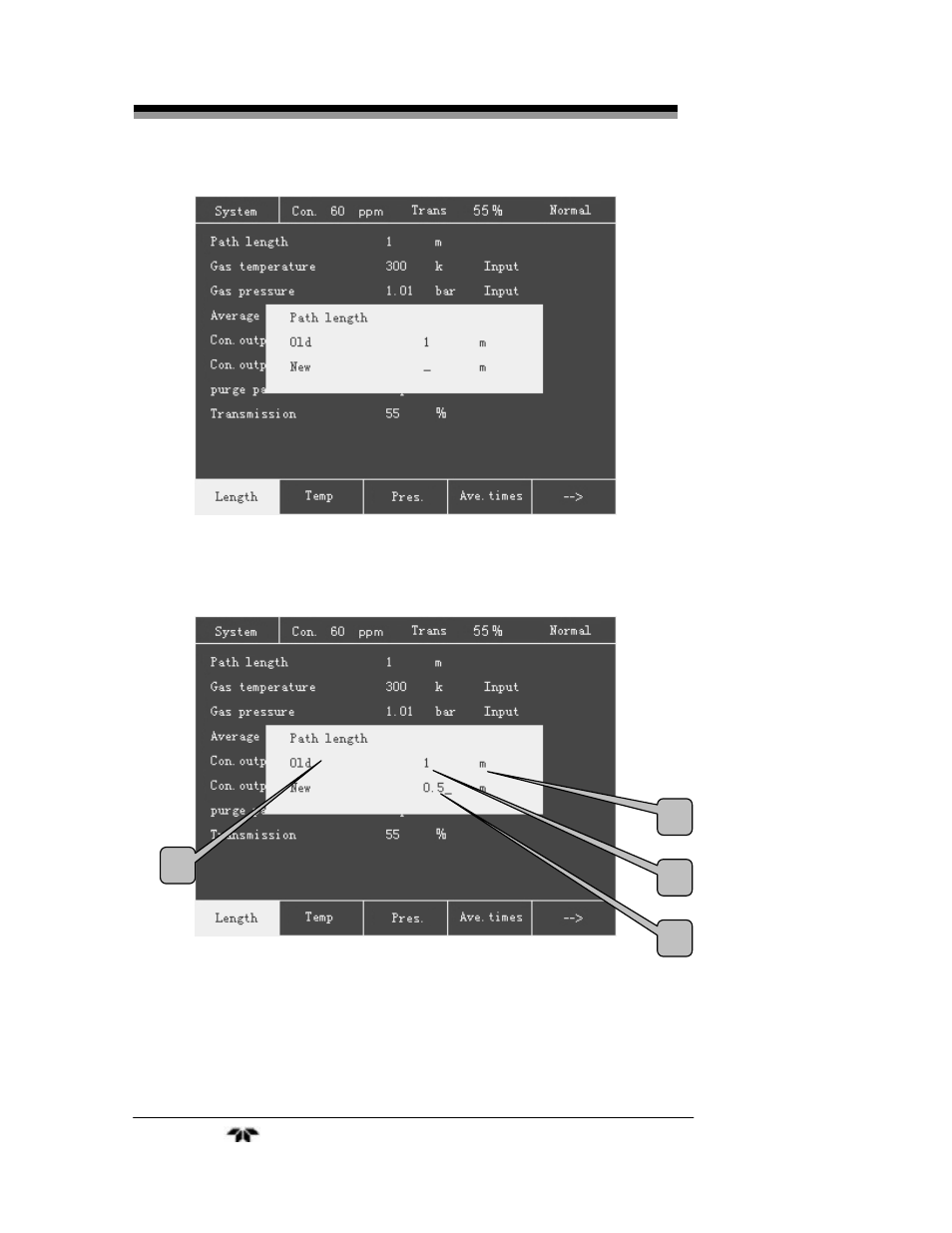

Figure 4.16 Set Optical Path Length
2. Key in the new optical path length value (Figure 4.17).
Figure 4.17 Input the New Optical Path Length Value
3. Press “SET” to accept the new setting.
The call-outs on Figure 4.17 refer to:
b
c
d
a
